PARTS LIST

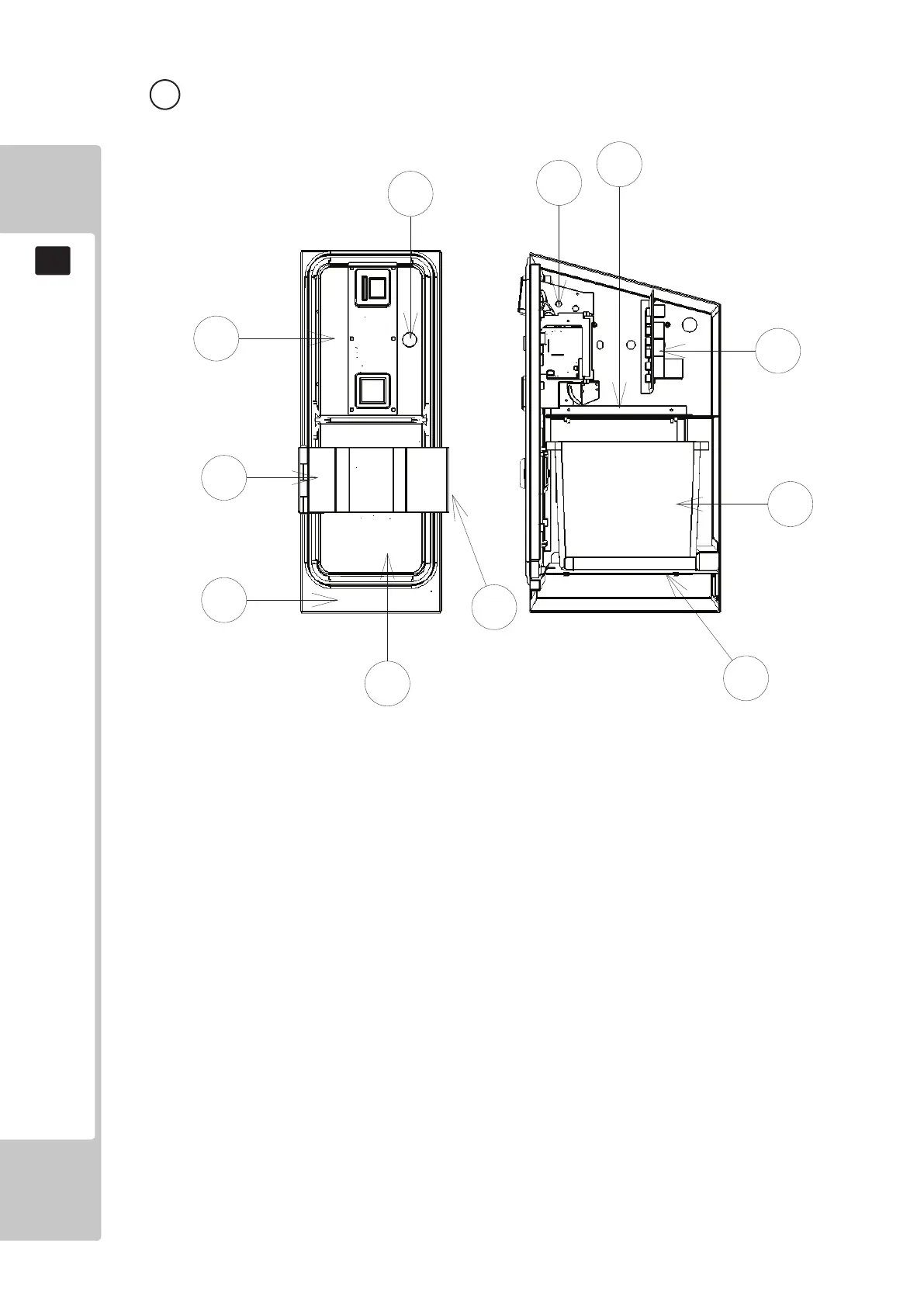

2 ASSY COIN CHUTE TOWER (PD-0300XUK) (D-1/1)

ITEM NO PART NUMBER DESCRIPTION QTY

**1 RD-0301XUK COIN CHUTE TOWER 1

**3 RD-0352UK COIN PATH PLATE 1

**4 RD-0353UK CCT FLOOR 1

**6 STICKER COIN METER 1

**7 PP1087 BOX CASH FOR MINI DOOR 1

**8 TFF-0304UK LOCKING HASP 1

**9 TFF-0305UK BRKT PADLOCK 1

**101 220-5374-01 DOOR DFMD W/FR&LOCK C120 UNIV 1

**102 220-5575UK LOCK (J9117) KEY TO LIKE 22MM W CAM 1

**103 VTS-FRI-T-R VTS BOARD FRI TWIN 1

**104 OS1247 ALUMINIUM STICKY CLIP ASK-3 3

**105 220-5610-01 SR3 STD BODYBSR3INGB 1

**106 220-5727-01B DOOR CASH H.S. STS 1

**201 000-P00410-W M4X10 MSCR PAN W/FS PAS 14

**203 050-U00800 M8 NUT NYLOK PAS 4

**204 068-852216 M8 WSHR 22OD FLT PAS 4

**301 PD-60027UK WH VTS TWIN 1

**302 LM1006LOR LOOM COIN MECH LAMP 1

**303 600-9020-44K WH EARTH 20CM M4M4 1
