EXPLANA
TION OF TEST AND DA
T
A DISPLA
Y
49
9
9-2-7 SCREEN TEST
Select ‘Screen T
est’
from the T
est Menu screen to display the Screen T
est menu.
Use the SER
VICE button to move the cursor to the desired test item.
Press the TEST
button to enter the selected item.

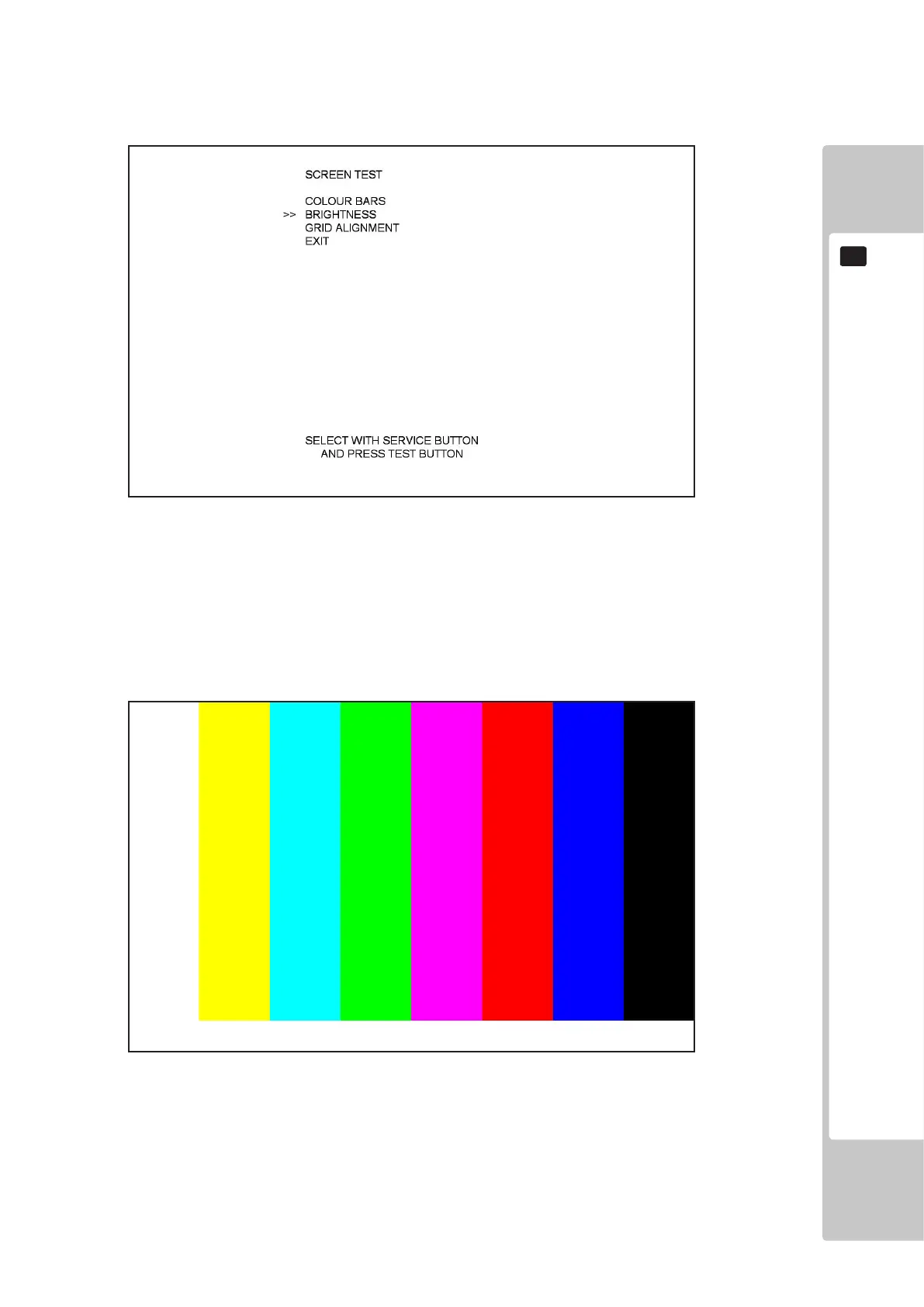

COLOUR BARS – Selecting this test will display the following:
9-2-7 FIG. 01
9-2-7 FIG. 02
57
59
