13
LAMPS AND LIGHTING
86
3
Carefully remove the Billboard Plate to reveal the LED strip..
1

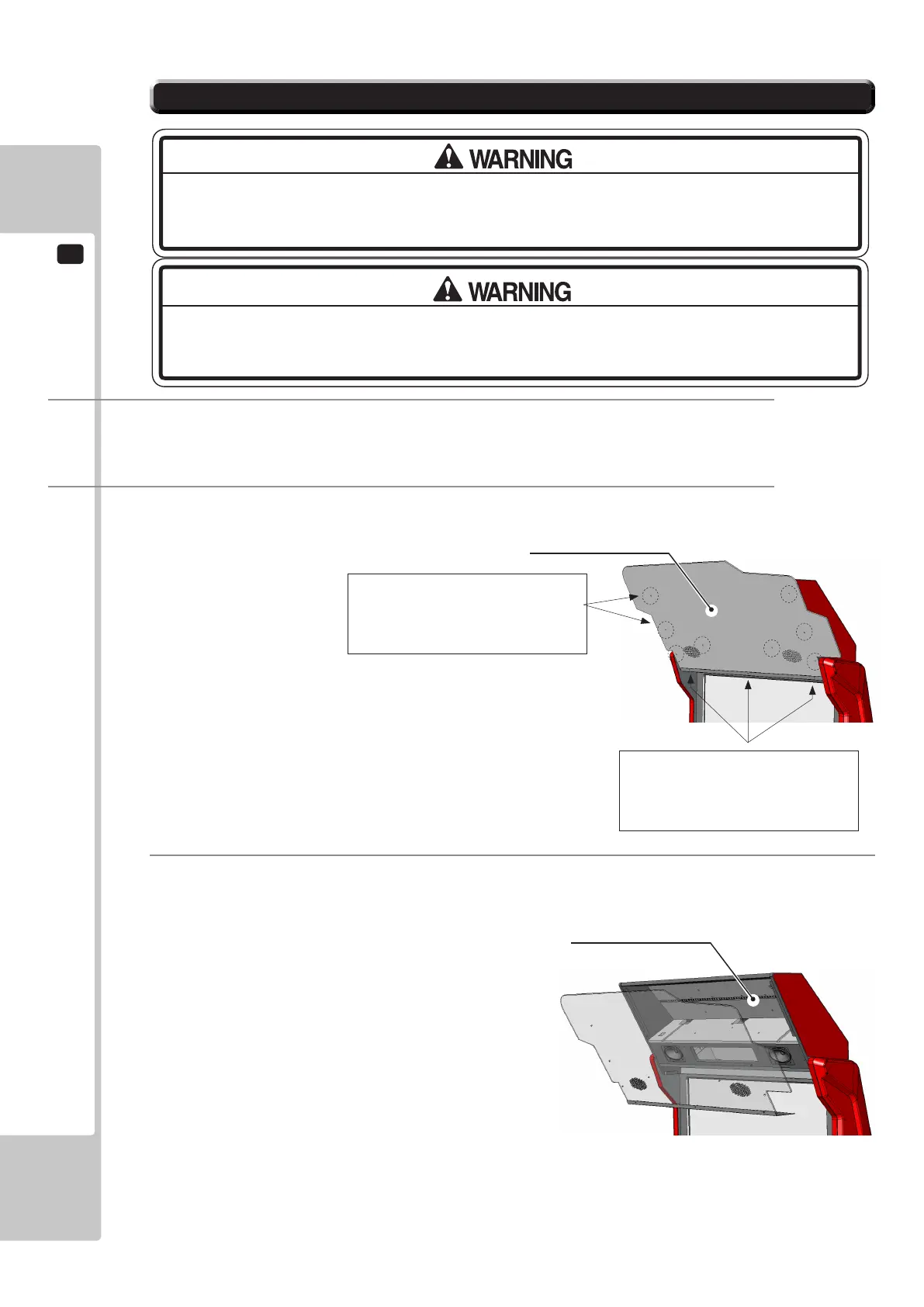

The Billboard lighting is located inside the back section of the Billboard Base, before attempting to change
the LED, TURN THE POWER OFF.
2
To gain access to the LED STRIP, extract the eleven (11) xing screws which hold the Billboard Title Panel
in place and remove.
13-2 LED LIGHTING - BILLBOARD
THIS WORK ON TOP OF THE CABINET, SHOULD NOT BE UNDERTAKEN WITHOUT THE
USE OF A SUITABLE STEP OR FOOTSTOOL.
MAKE SURE THAT THE MAIN SUPPLY VOLTAGE TO THE MACHINE IS SWITCHED OFF
BEFORE ATTEMPTING TO CARRY OUT THIS WORK
Remove the 8 fixings and washers
which secure the Title Panel.
Remove the 3 fixings and washers
which secure the Title Panel Bracket.
Title Panel
LED STRIP
To Next Page
