PARTS LIST
19

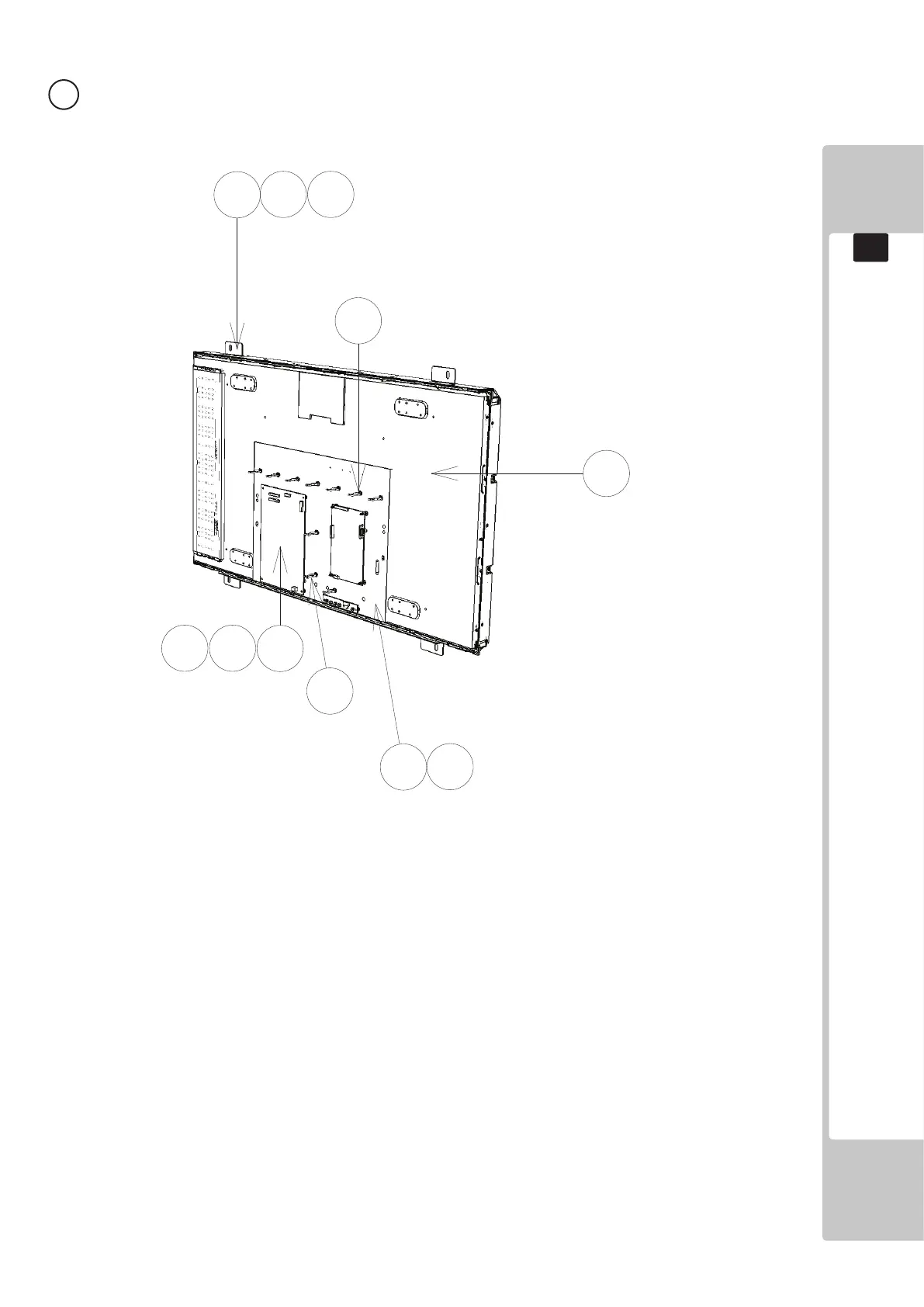

7 ASSY LCD MONITOR (PD-1290UK) (D-1/1)
ITEM NO PART NUMBER DESCRIPTION QTY
****1 PD-1281UK LCD BRKT 2
****2 GST-1110UK PANEL PRISMA BD MOUNT 1
****101 200-6042-01-AUO DISPLAY 42" LCD T420HW09-V2 1
****102 400-242-024-01 PSU 42" LCD PVP-2420 1
****103 280-L00640-WX STANDOFF 6MM WOOD XL 4
****104 280-A00748-PM ROUTER TWIST D7 SO4.8 PANEL M 4
****107 280-A01264-WX ROUTER TWIST D12 SO6.4 WOOD X 4
****108 OS1230 FOAM STRIP 2MM X 10MM 2.3m
****202 000-P00416-W M4X16 MSCR PAN W/FS PAS 2
****203 000-P00410-W M4X10 MSCR PAN W/FS PAS 6
****204 012-P00320 N4X3/4" S/TAP PAN PAS 7
****205 280-L00709-OS STANDOFF 7OD 4ID 9L 7
1
2
101
102
104
107
108
202
203
204205
