Graphics

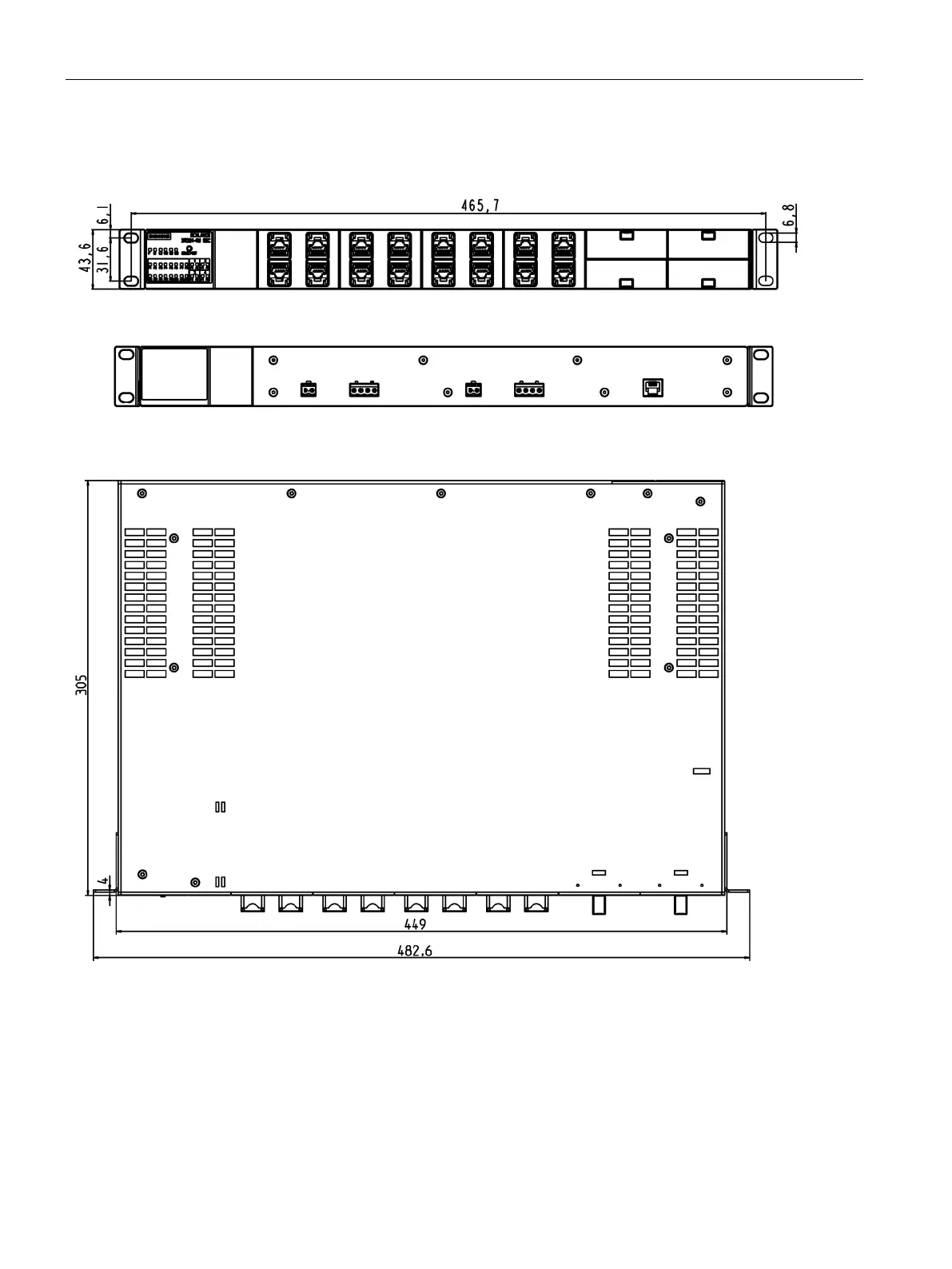

11.5 XR-300M EEC dimension drawings
SCALANCE X-300
296 Operating Instructions, 05/2016, A5E01113043-20
11.5
XR-300M EEC dimension drawings
Image 11-16 Housing front and rear
Image 11-17 Top of the housing
