Description of the device
4.2 Product groups
SCALANCE X-300
Operating Instructions, 05/2016, A5E01113043-20
61
Product group X-300M
Possible attachments
The SCALANCE X308-2M and X308-2M TS are partly modular devices and each has 8
ports.
●
4 fixed ports in the base device:
4 electrical RJ-45 jacks (with securing collars) for connection of end devices or other
network segments.
●
4 modular ports via module slots:
Two media modules (optical or electrical as required) can be combined using slots (S1-
S2) depending on the application. End devices and other network segments are
connected according to the media modules being used.
Note
When shipped, the slots for the media modules have a dummy cover fitted.

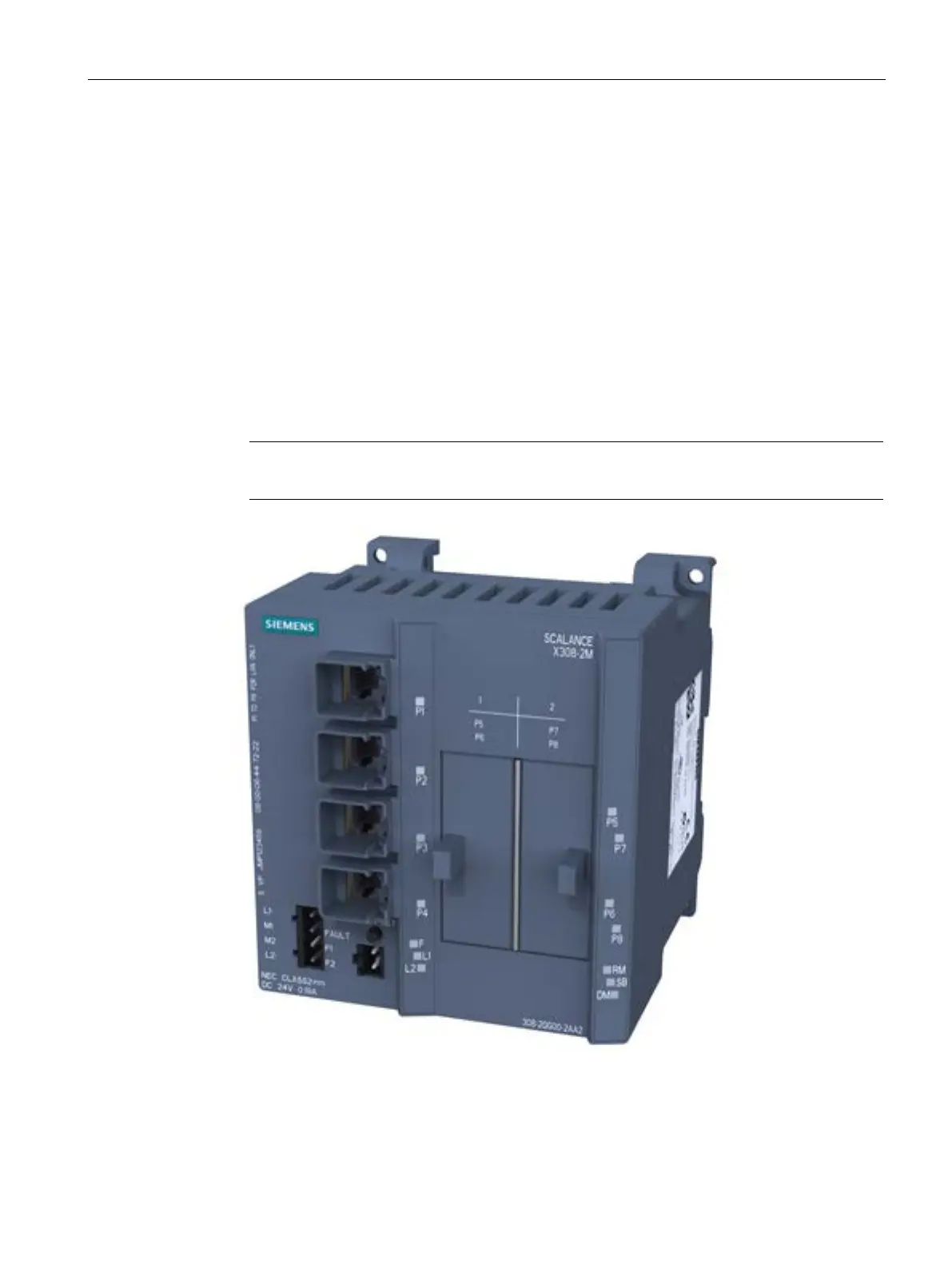

Image 4-13 SCALANCE X308-2M with dummy covers
