Description of the device
4.2 Product groups
SCALANCE X-300
70 Operating Instructions, 05/2016, A5E01113043-20
XR-300M EEC product group
4.2.5.1
Product characteristics of the SCALANCE XR324-4M EEC
Connection options with the SCALANCE XR324-4M EEC
The SCALANCE XR324-4M EEC is a partially modular device and has 24 ports.
●
16 fixed ports in the base device:
16 RJ-45 jacks for connection of end devices or other network segments.
●
8 modular ports via module slots:
4 modules can be combined using slots (S1-S4) depending on the application. End
devices and other network segments are connected according to the modules being
used.

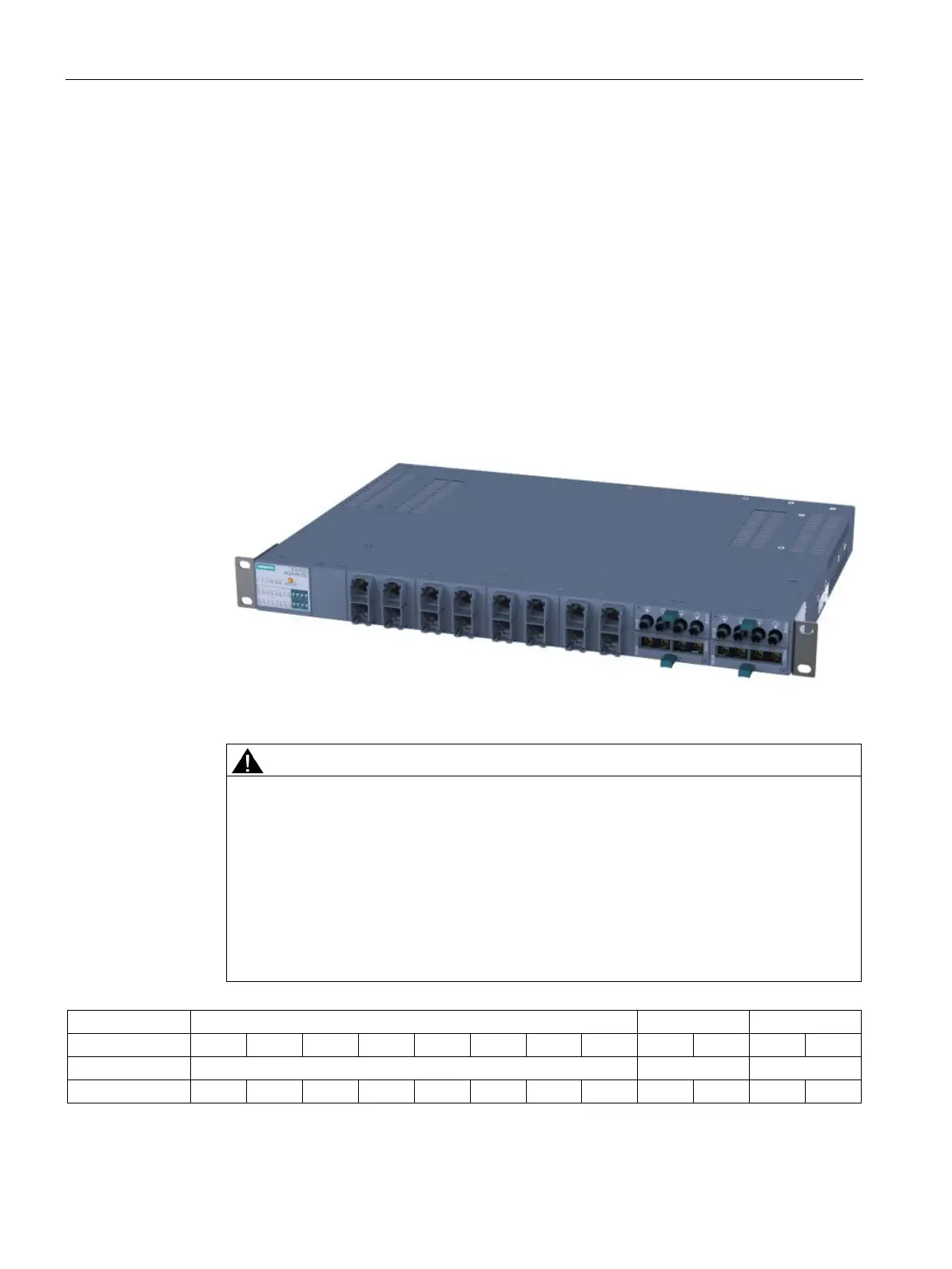

Image 4-21 XR324-4M EEC
Use only approved media modules
If you use media modules that are not approved by Siemens AG, there is no guarantee
that the device will function according to the specification.
If you use unapproved media modules, this can lead to the following problems:
• Damage to the device
• Loss of the approvals
• Violation of the EMC regulations
Use only approved media modules.
