SCALANCE X-300
Operating Instructions, 05/2016, A5E01113043-20
311
Appendix
A
A.1
TP port
Connector pinout
On the IE Switch X-300, the TP ports are implemented as RJ-45 jacks with MDI-X
assignment (Medium Dependent Interface–Autocrossover) of a network component.

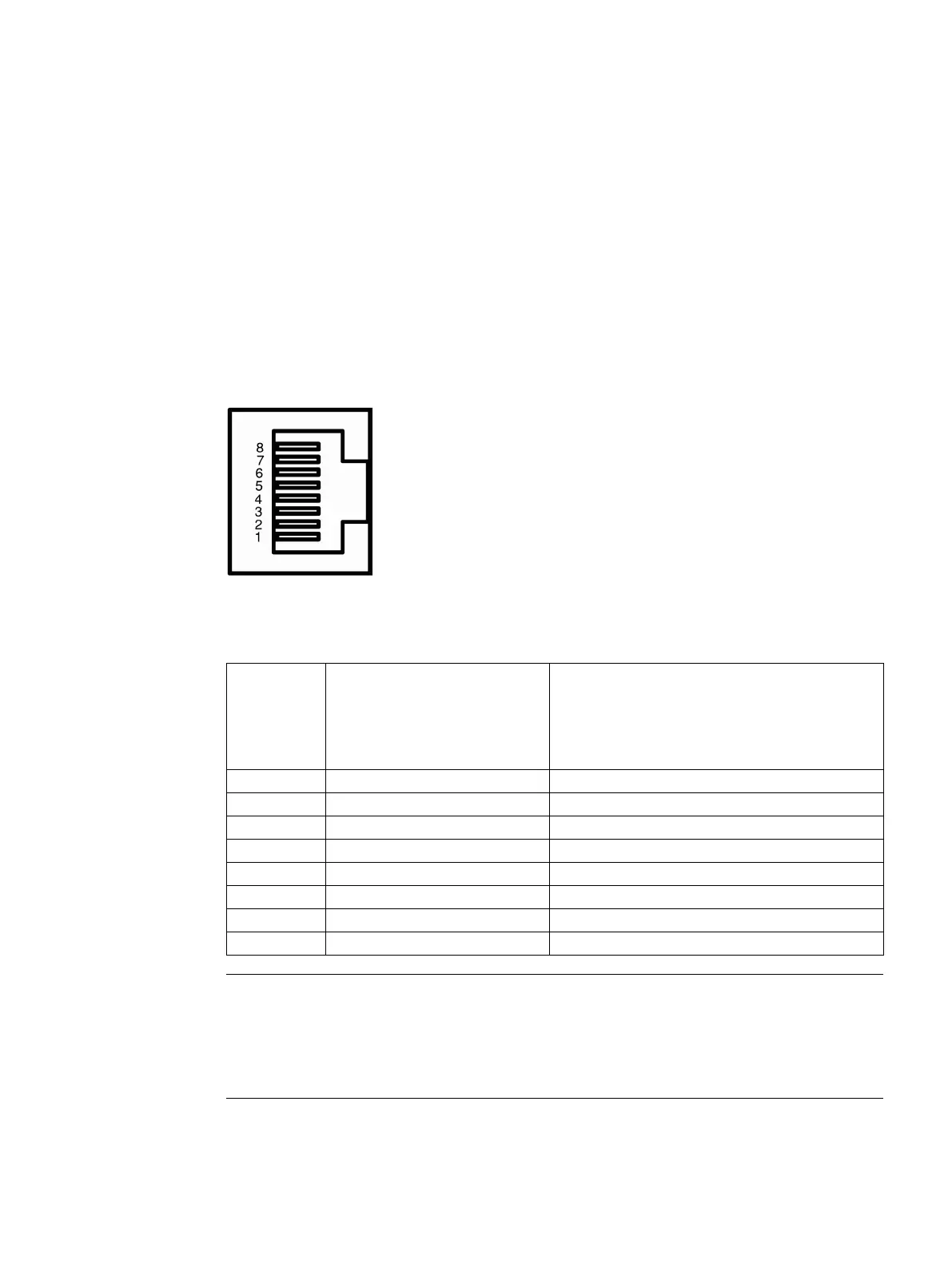

Image A-1 RJ-45 jack
Table A- 1 Pin assignment
Pin number
Pinning of the Fast Ethernet
ports
of IE-Switches X-300 (P1-P7)
Except:
SCALANCE X310FE (P1-P10)
Pinning of the gigabit Ethernet ports
on SCALANCE X310 (P8 - P10)
on SCALANCE X308-2, X308-2LD, X308-2LH,
X308-2LH+ (P8)
Pin 8
n. c.
3-
Pin 7
n. c.
3+
Pin 6
TD-
1-
Pin 5
n. c.
2-
Pin 4
n. c.
2+
Pin 3
TD+
1+
Pin 2
RD-
0-
Pin 1
RD+
0+
Note
TP cords or TP
-XP cords with a maximum length of 10 m can be connected to the RJ-45 TP
port.
With the IE FC
cables and IE FC RJ-45 plug, an overall cable length of up to 100 m is
permitted between two devices depending on the cable type.
