11.5 XR-300M EEC dimension drawings
SCALANCE X-300
300 Operating Instructions, 05/2016, A5E01113043-20

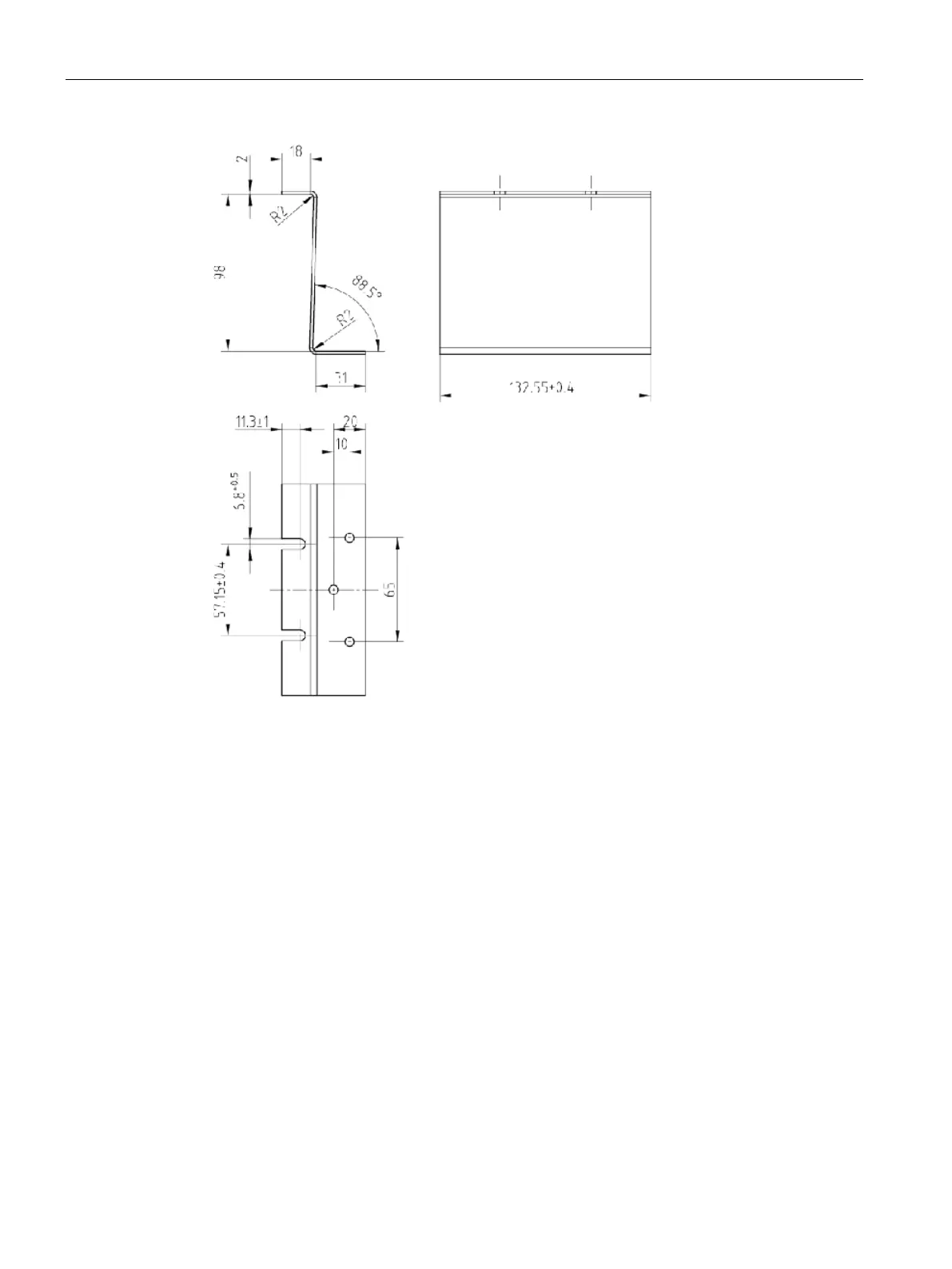

Image 11-20 Side part of mounting support for X-300EEC (dimensions in mm)
Material: Plate 2.0 DIN EN10152 DC01+ZE25/25
