Expanding and assigning parameters to the device
6.4 Connecting a USB stick to the internal interface
Operating Instructions, 01/2021, A5E43920357-AA
101
6.4 Connecting a USB stick to the internal interface
The device has one or two internal USB ports to which you can connect a USB stick.
You will find this interface on the motherboard (Page 171) at the rear of the device.
Requirement
• You know the important safety instructions under "Safety instructions on device and
system extensions (Page 48)".
• Retainer for locking the internal USB interface, see "Hardware accessories (Page 35)".
• Screwdriver TX10
Procedure
1. Fully disconnect the device from the line voltage, see "Switching off the device (Page 72)".
2. Open the device. Be sure to follow the important instructions under "Open the device
(Page 93)".
3. Insert the USB stick into the socket of the internal USB interface on the motherboard
(Page 171).

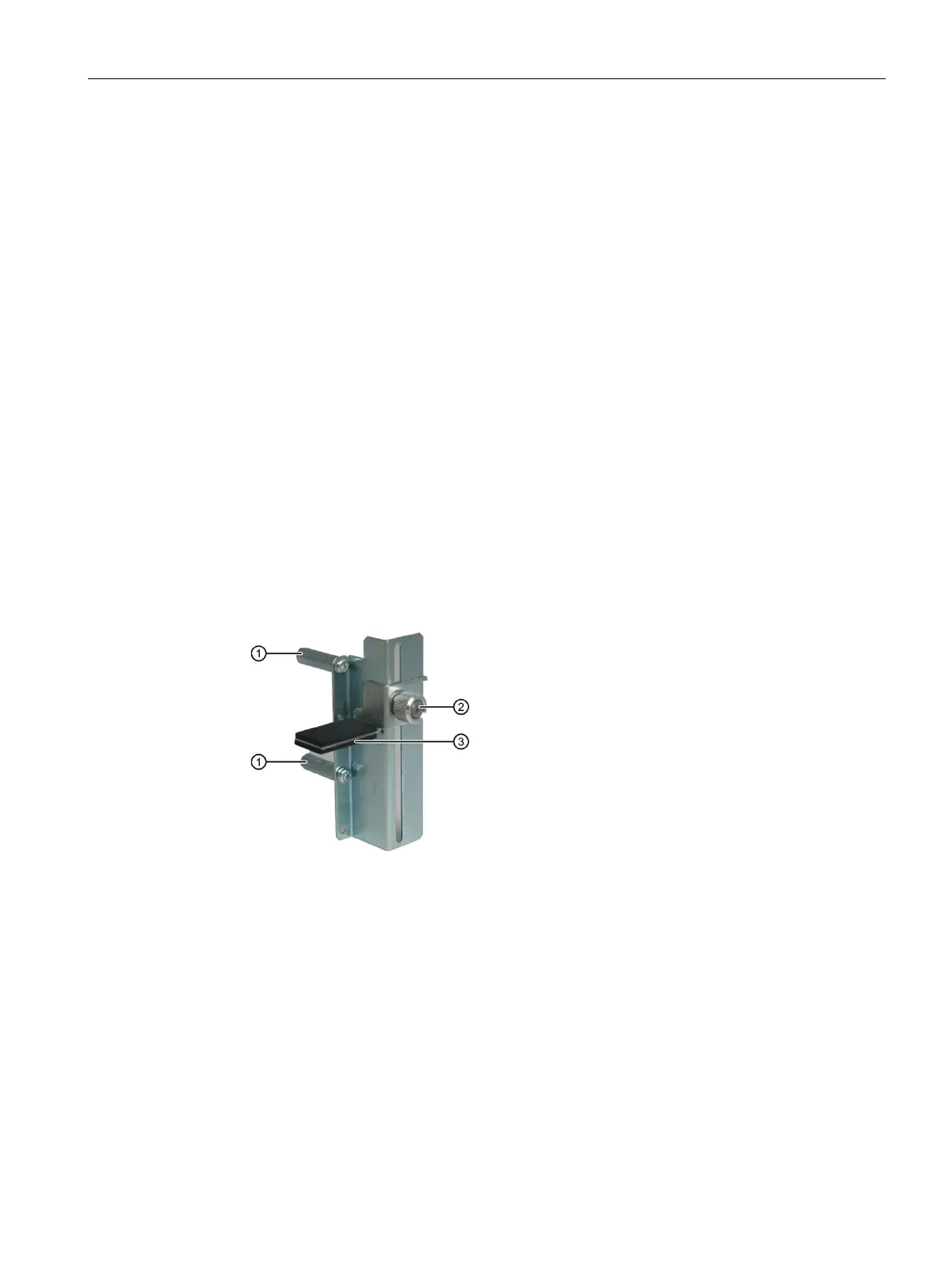

4. Screw the two hexagon bolts ① with two of the enclosed screws into the first and third
holes of the retainer.
5. Hold the retainer from the inside with the hexagon bolts on the rear panel of the device and
fasten the retainer from the outside with the remaining screws on the rear panel of the
device. Information on the position of the holes is available in section "Rear of the device
(Page 23)".
6. Slide the bar of the retainer ③ onto the USB stick.
