Dimension drawings
9.3 Dimension drawing of the expansion cards
164 Operating Instructions, 01/2021, A5E43920357-AA

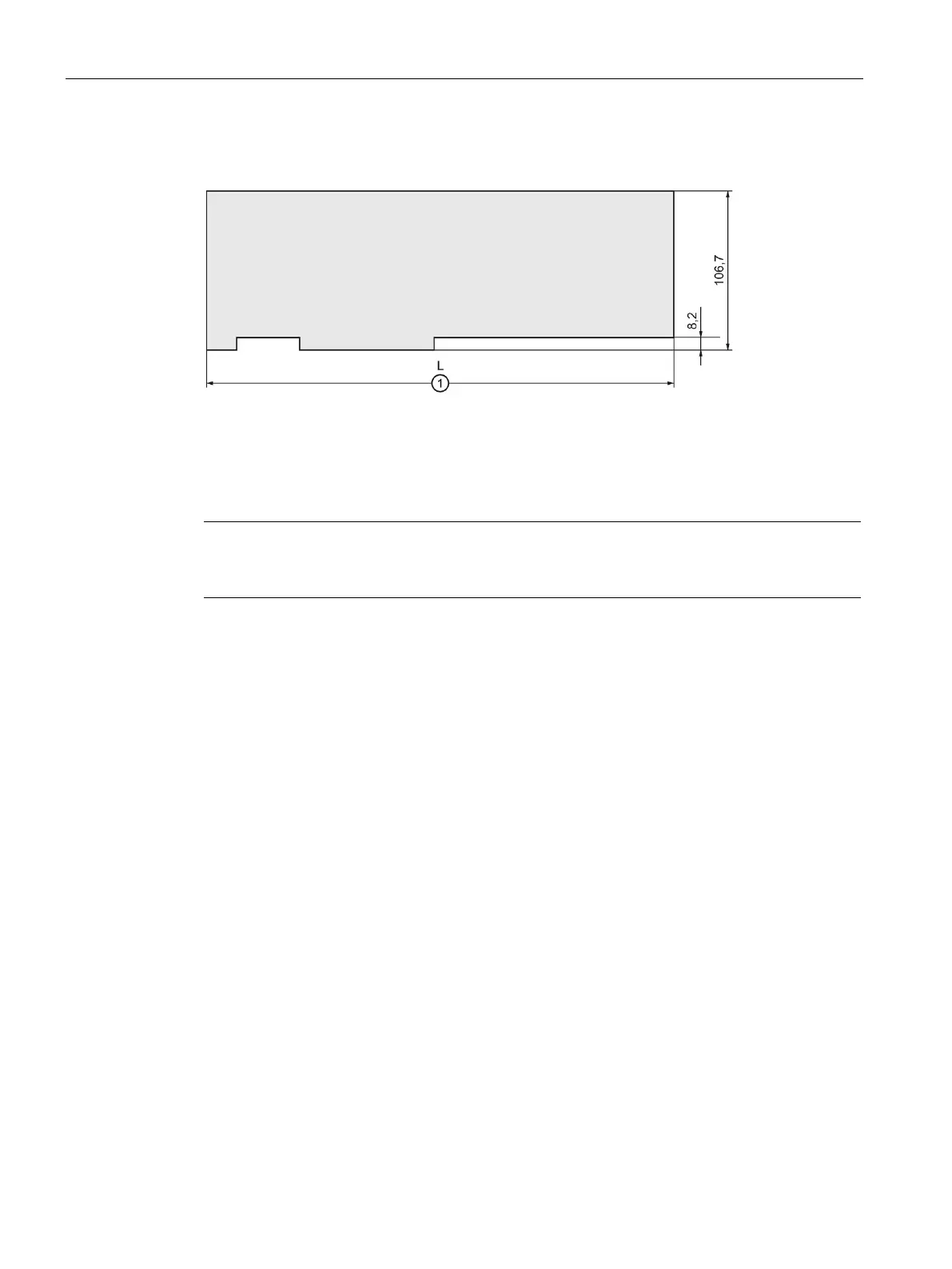

9.3 Dimension drawing of the expansion cards
① L
Length of expansion card
Device with standard enclosure: 312
Device with short enclosure: 260
All dimensions in mm
Note
The dimension from the bottom edge of the expansion
card to the bottom of the enclosure
cover must not exceed 155 mm.
