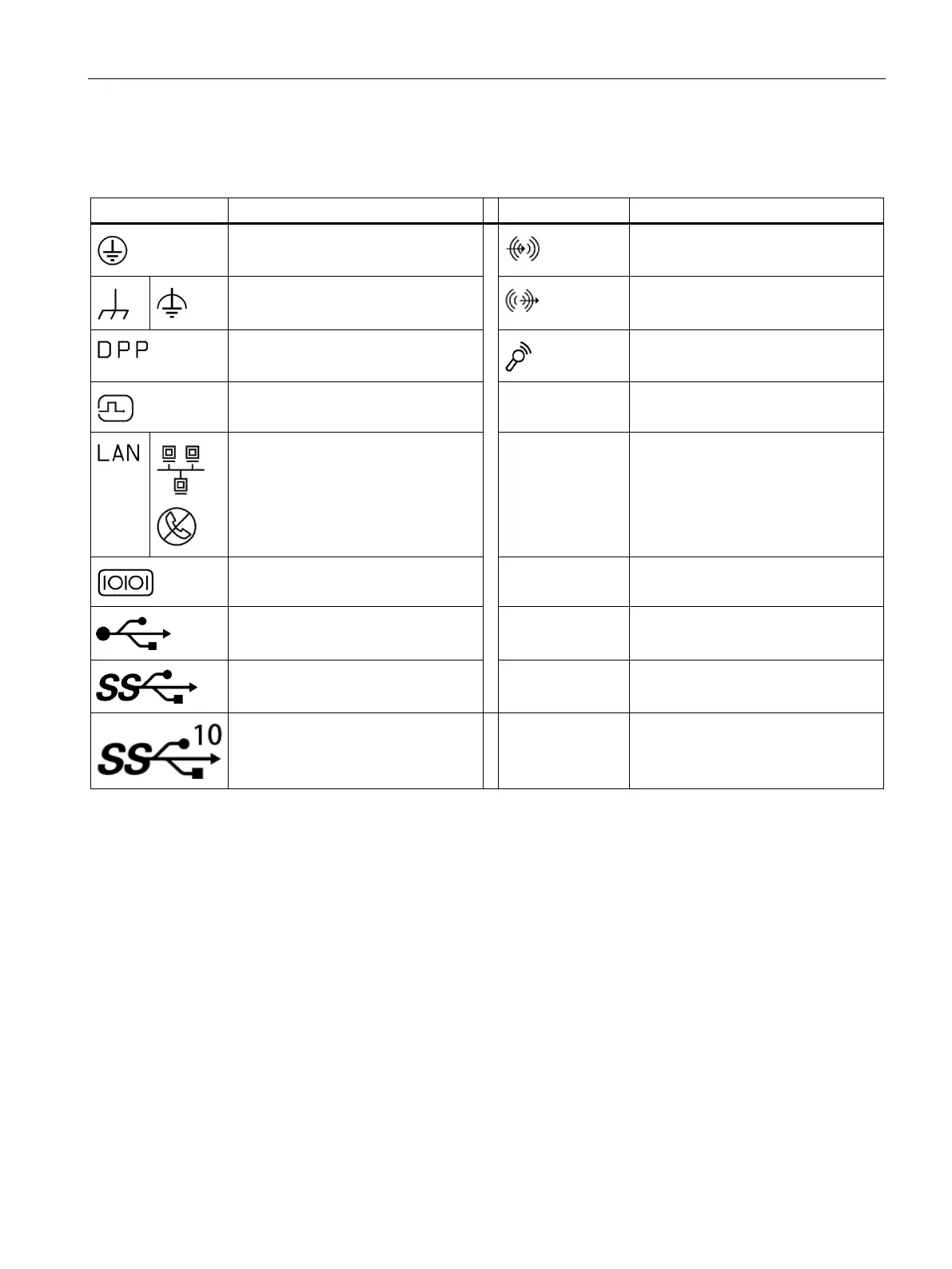

Markings and symbols
C.5 Interfaces
Operating Instructions, 01/2021, A5E43920357-AA
191
C.5 Interfaces
Symbol
Meaning
Symbol
Meaning
Protective conductor terminal
Line In
Connection for functional grounding
(Equipotential-bonding cable)
Line Out
DisplayPort interface
Microphone input
DVI port
LAN interface, not approved for
connecting WAN or telephone
Serial port
USB 2.0 high-speed port
USB 3.0 Gen 1 SuperSpeed port
USB 3.1 Gen 2 SuperSpeedPlus port
