Product description
1.4 External design of the device
18 Operating Instructions, 01/2021, A5E43920357-AA

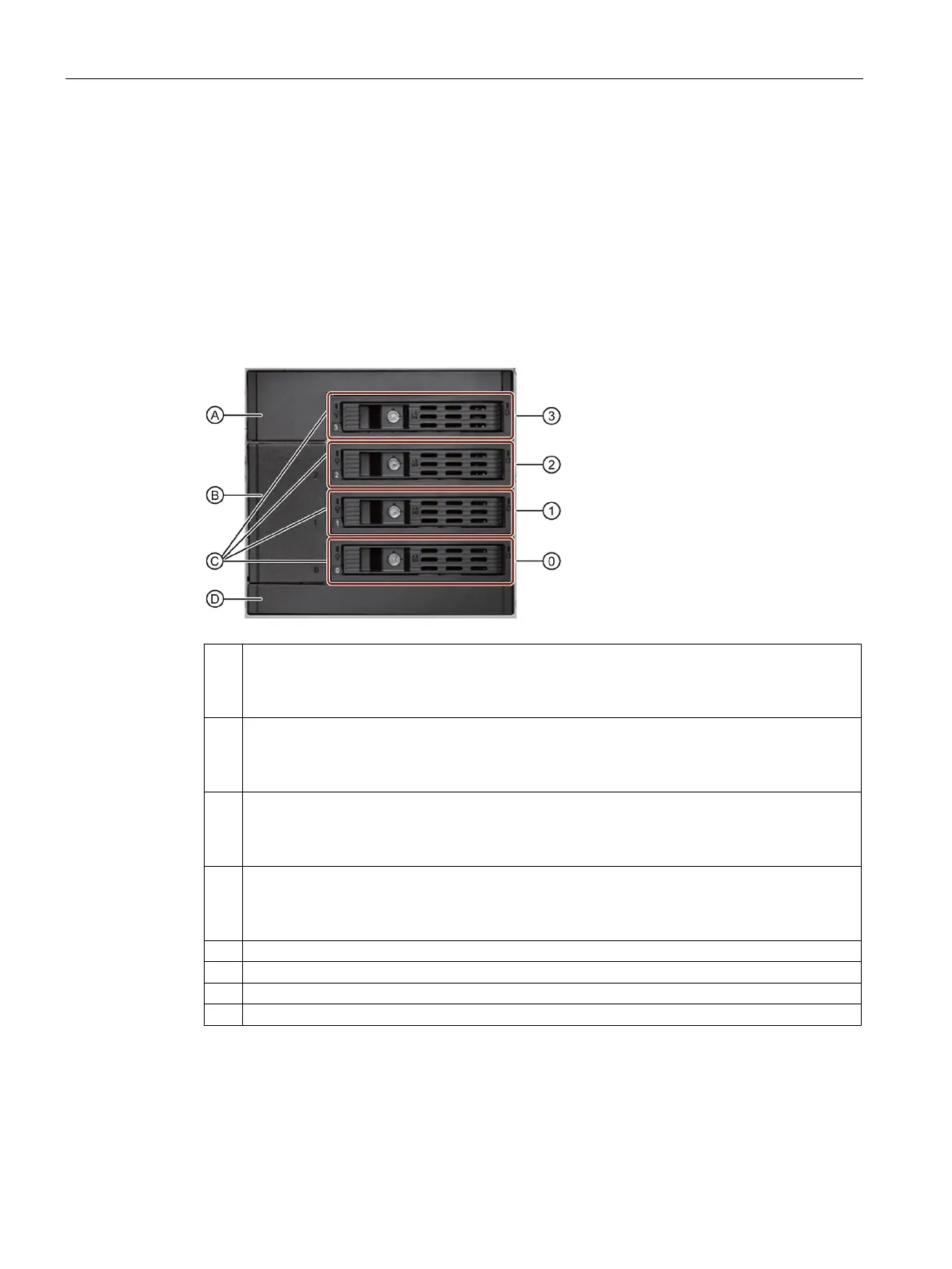

1.4.2 Drive cage type A
Drives and mounting locations in the drive cage type A
The drive cage type A can only be installed in devices with a standard enclosure and is located
behind the front door.
You can install drives in removable trays, in which the drives are easily accessible from the
outside without opening the device.
The removable trays can be locked, thus protecting the drives from unauthorized access.
(0)
Mounting location 0 for:
• 2.5" drive in removable tray
• 3.5" drive in removable tray
(1)
Mounting location 1 for:
• 2.5" drive in removable tray
• 3.5" drive in removable tray
(2)
Mounting location 2 for:
• 2.5" drive in removable tray
•
3.5" drive in removable tray
(3)
Mounting location 3 (5.25" tray) for:
• 5.25" mounting frame with removable tray for 2.5" and 3.5" drives
• 5.25" drive or 5.25" component
(A)
Cover of the mounting frame for removable tray (Page 109)
(B)
Cover
(C)
Removable tray
(D)
Cover
