A.1 Motherboard
A.1.1 Layout of the motherboard
You can find a detailed description of the motherboards and the interfaces on the
motherboards on the supplied data storage medium, see "Important instructions and
manuals for operating the device (Page 11)".

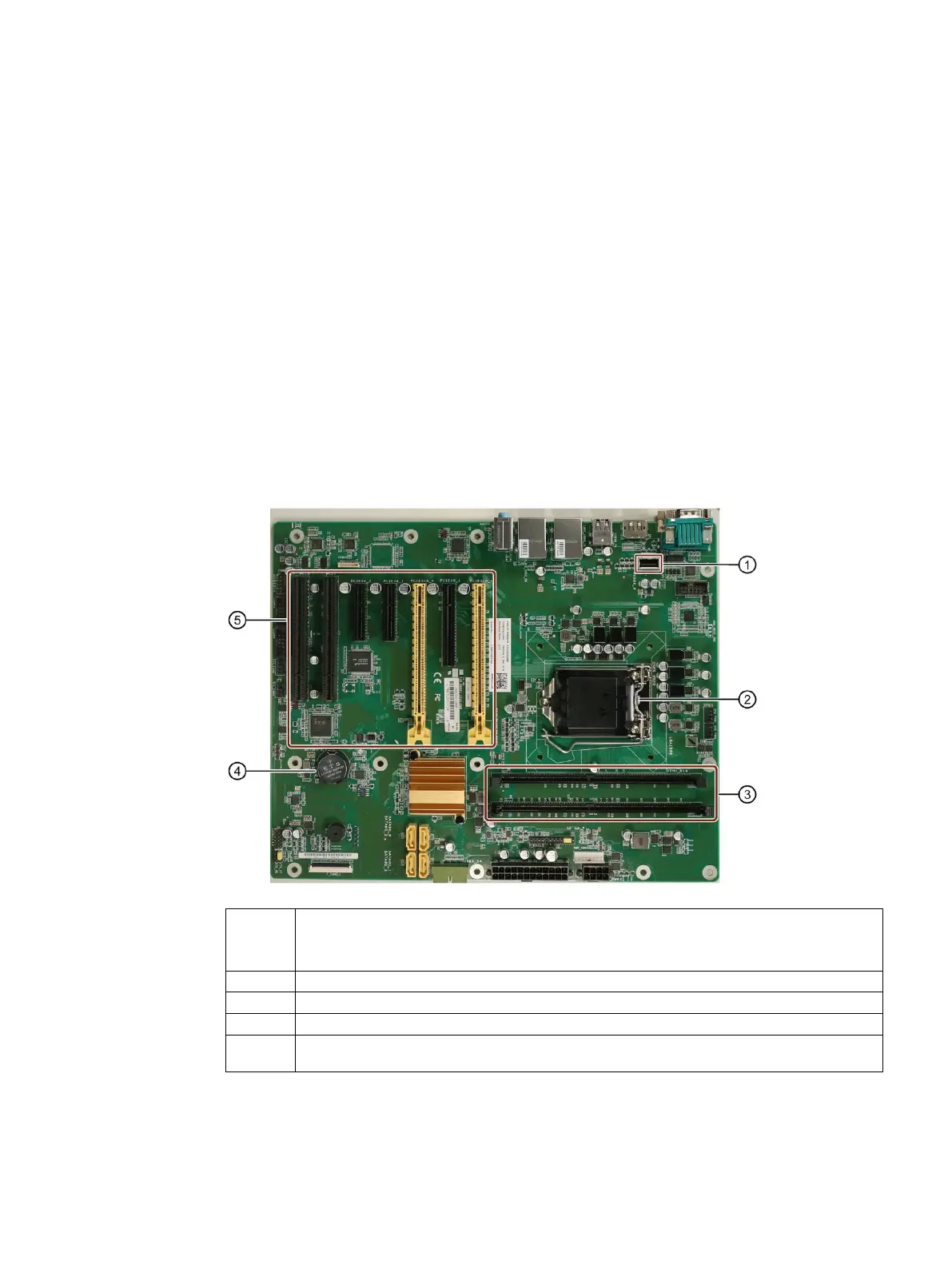

Layout of the SMS-H410 motherboard
Socket of the internal USB interface (X68)
USB 2.0, Type A Vertical
backwards compatible to USB 1.1; 500 mA / high current
1
Two slots for memory modules
Slots for expansion cards, see "Technical specifications of the expansion card slots
(Page 153)".
Sum of the currents on the USB interfaces of the device (including the internal USB interfaces) ≤ 3 A
