1.4 External design of the device
Operating Instructions, 01/2021, A5E43920357-AA
21
1.4.4 Type C drive holder
Drives and mounting locations in the drive cage type C
The drive cage type C can only be installed in devices with a short enclosure and is located
behind the front door.
The drive cage type C consists of a design cover and a drive bay plate.
The drive bay plate is accessible after the design cover has been removed. You can mount
2.5" and 3.5" drives (HDD or SSD) on the drive bay plate.

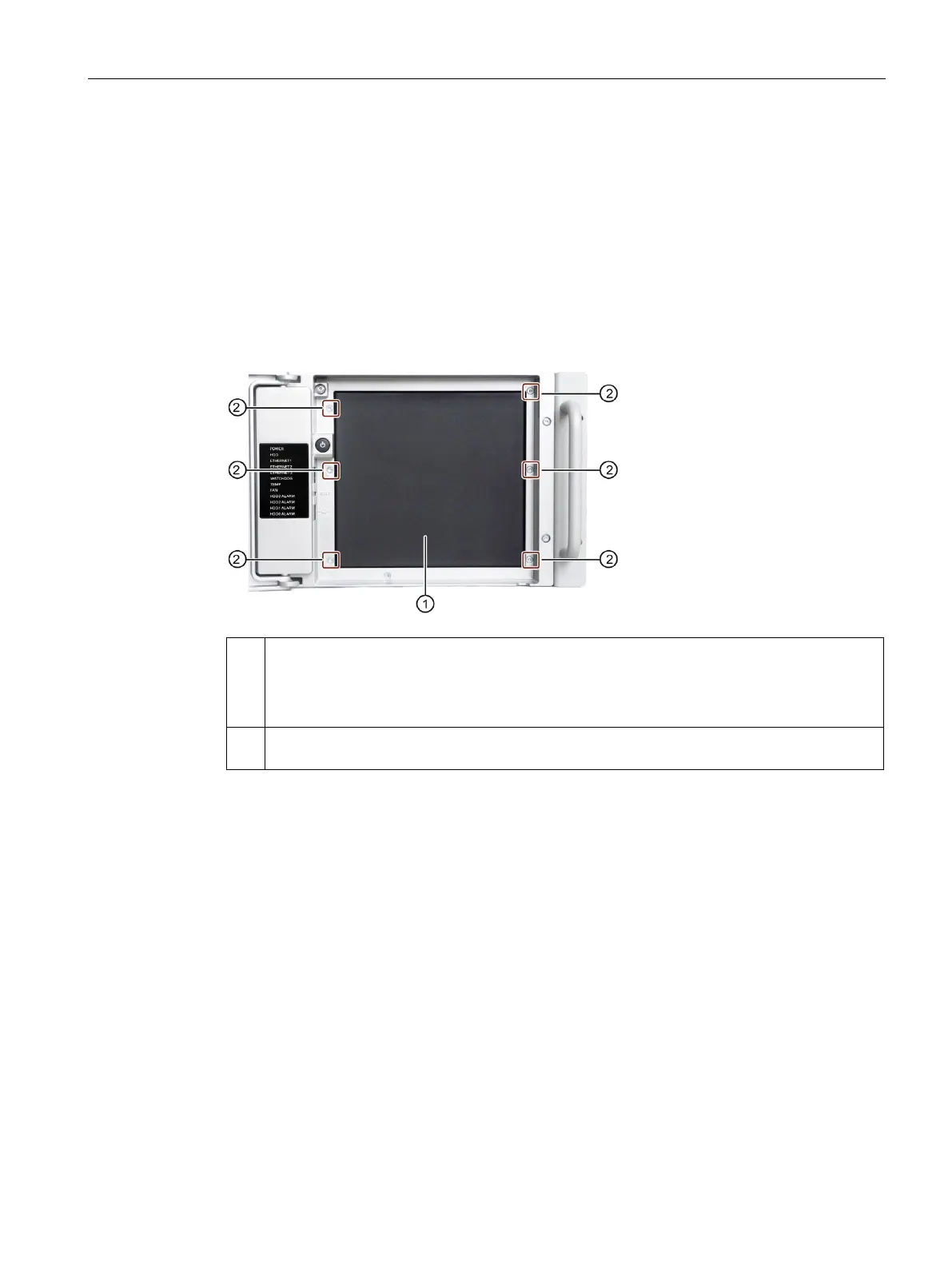

Design cover (mounted on the drive bay plate)
• 2.5" drive on the drive bay plate
• 3.5" drive on drive bay plate
Six screws for attaching or loosening the drive bay plate with attached design cover
(with T10 screwdriver)
