Expanding and assigning parameters to the device
6.6 Installing and removing drives
Operating Instructions, 01/2021, A5E43920357-AA
115

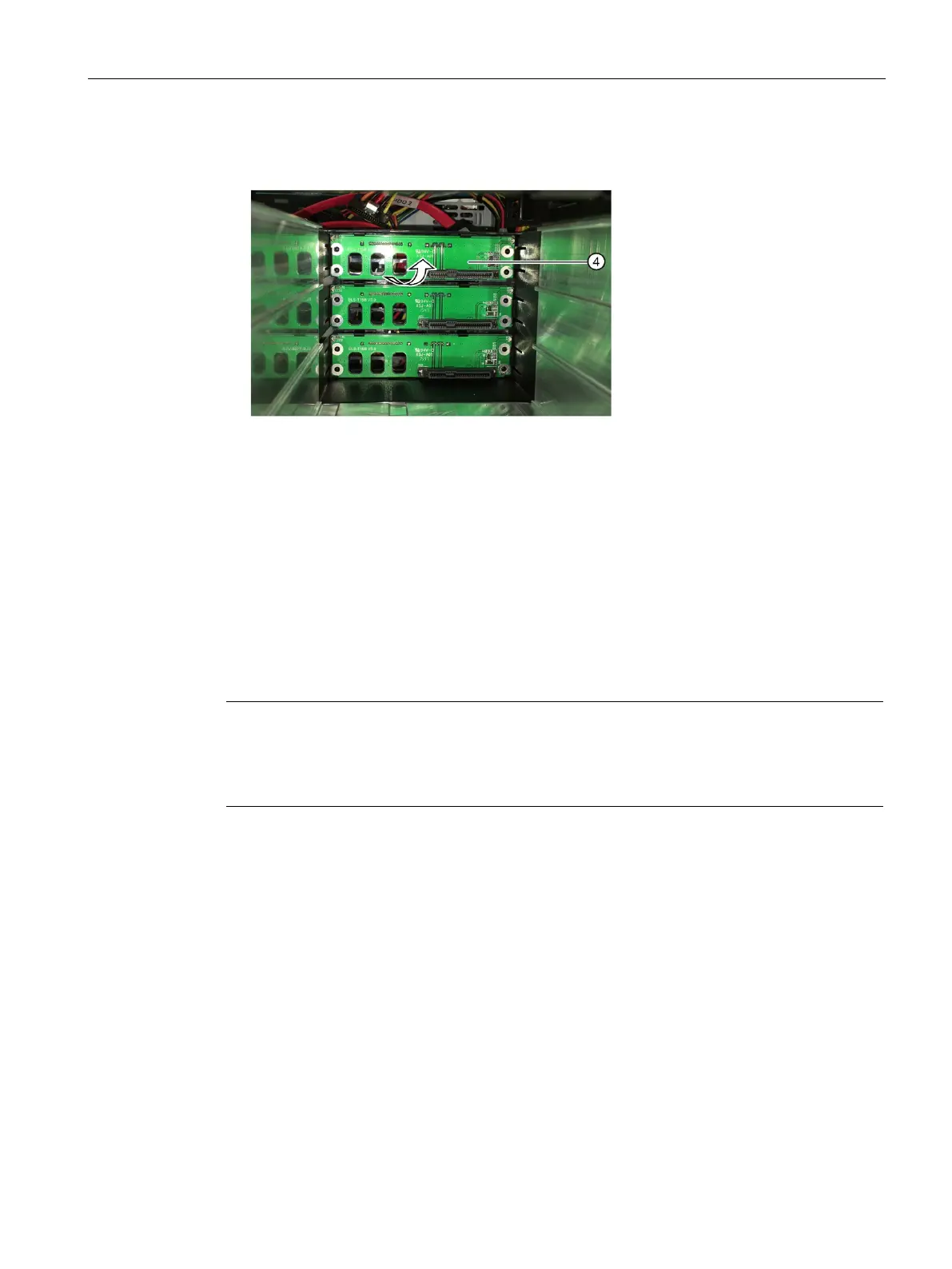

4. Remove the unlatched backplane board ④ by turning it upwards from the brackets and
removing it from the drive cage.
5. Close the device.
See also
Installing a backplane for removable tray (Page 111)
6.6.2 Installing drives in the drive cage type B
6.6.2.1 Installation conditions for drives in drive cage type B
If the device is permanently installed, mounted on telescopic rails or operated as tower, it can
only be subjected to the vibration stresses described below during operation.
The restrictions do not apply to the use of SSD.
Number of drives per system and their mounting locations
You can install up to five drives in the drive cage type B and on the side panel of the device at
the following mounting locations.
