Operating Instructions, 01/2021, A5E43920357-AA
161
Dimension drawings
9
9.1 Dimension drawing of the device
Note
IEC60297_3
_100
The systems meets the requirements for 4 HUaccording to IEC60297_3_100.

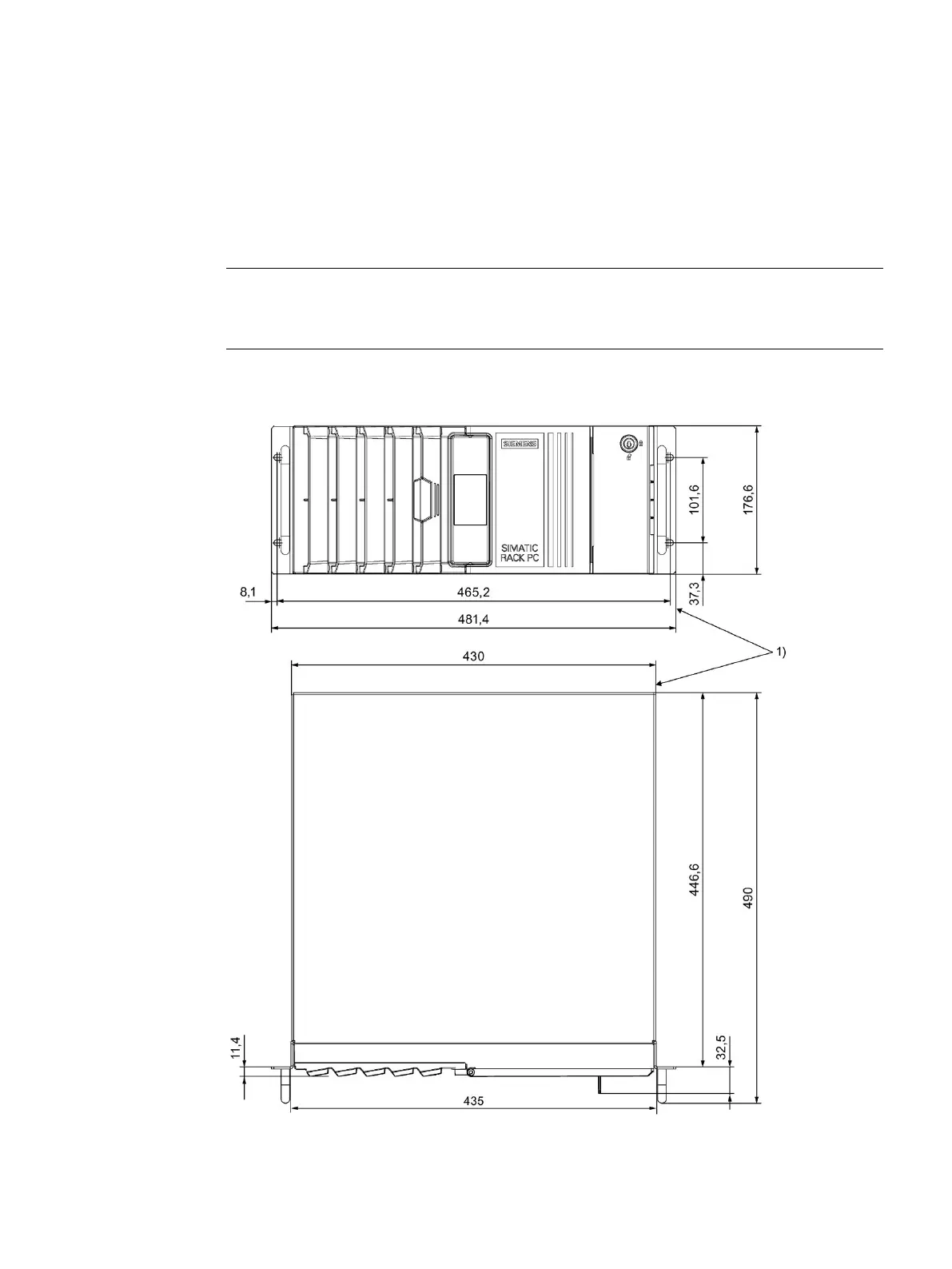

Device with standard enclosure: Front view and top view
1) At top when installed vertically. All dimensions in mm.
