5.1 Installing the mounting bracket
The mounting bracket is durably glued on the motor. For this purpose, use the mounting bracket
supplied in the Connectivity Kit (Page 204) and an approved adhesive (see Note). You can screw
(Page35) the connectivity module onto the mounting bracket either before or after gluing the
mounting bracket on the motor.
Make sure that the connectivity module is kept at the greatest possible distance from live
cables.
Note
Approved adhesives:
• Henkel LOCTITE HY 4090™
• Weicon Fast Metal Minute Adhesive
• 3M Scotch-Weld DP 8407 NS

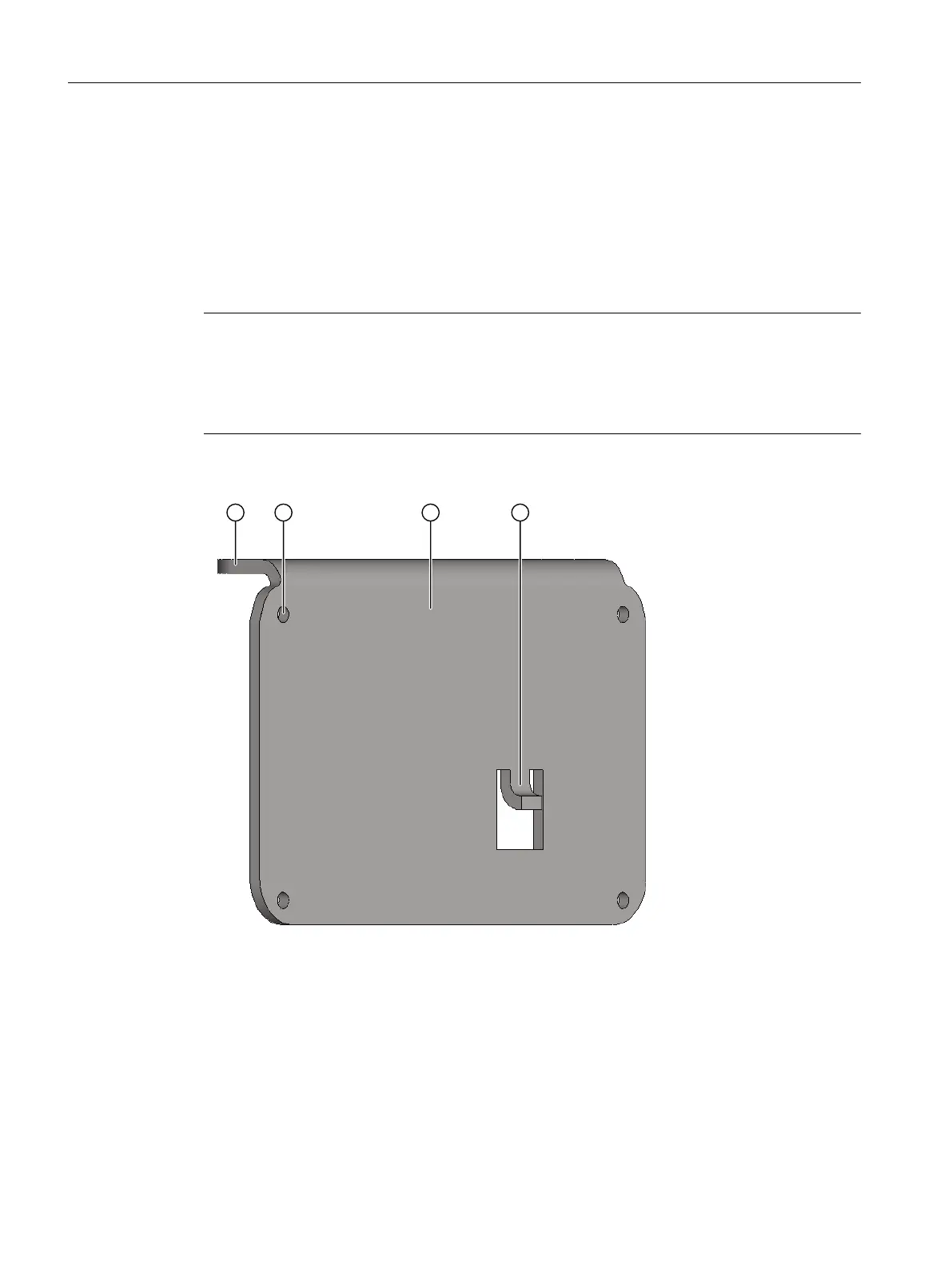

The mounting bracket is shown in the following diagram:
① Short arm of the mounting bracket: Inner side for gluing to the motor cooling ribs over the full
surface area
② Thread for the fastening screws of the connectivity module
③ Long arm of the mounting bracket: Surface for attaching the connectivity module using screws
④ Thermally conducting contact
Mounting and installation
5.1Installing the mounting bracket
SIMOTICS CONNECT 400
32 Operating Instructions, 04/2023, A5E50161952B AL
