SINUMERIK 802D sl Operating and Service Training Manual Page 2
C83
C83
Section 2
Working Plane Selection
2.1 Working Plane Selection

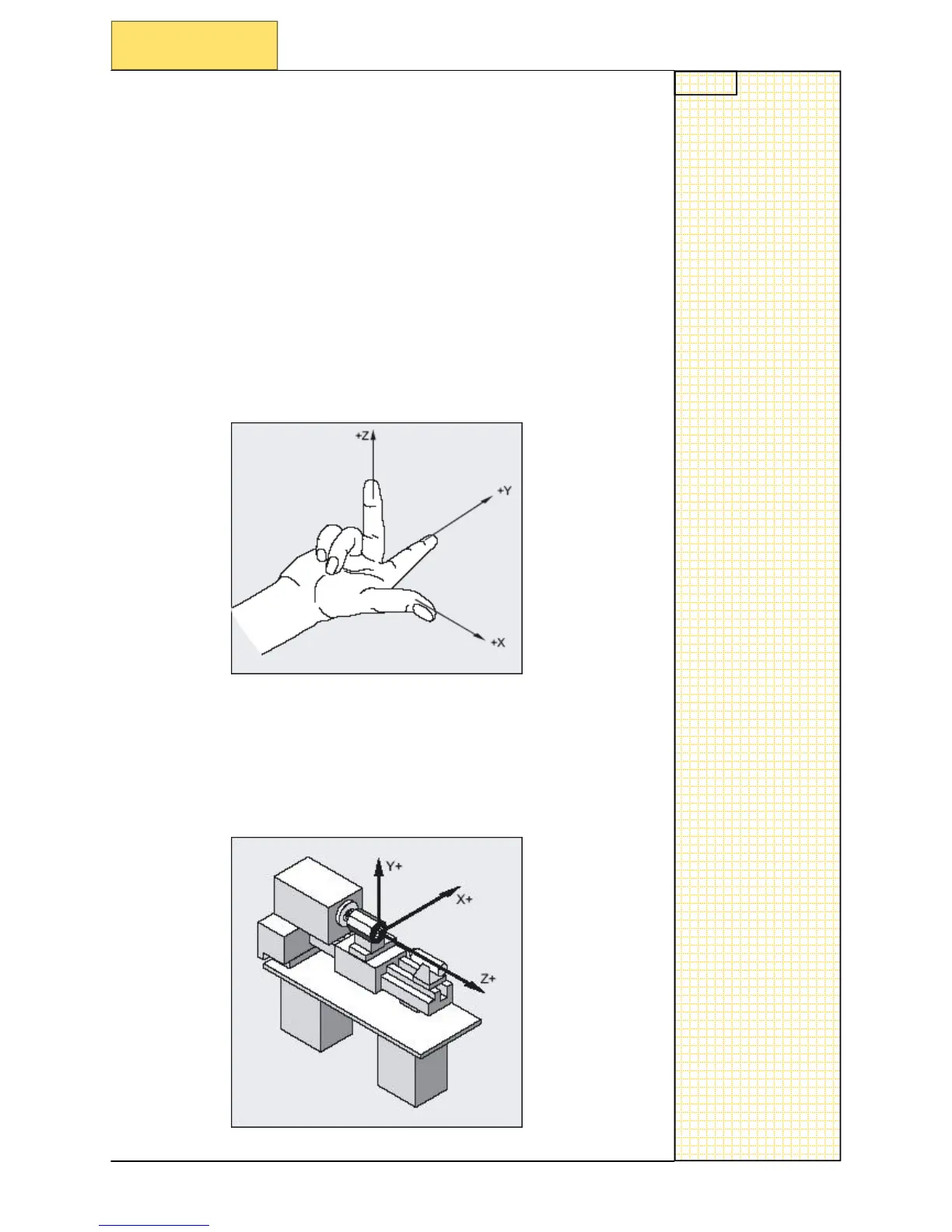

Turning coordinate system.
Appling the
right hand rule to a turning machine.
The right hand rule:
The orientation of the co
ordinate system relative to the machine depends
on the machine type. The axis directions follow th
e so-called “three-finger-
rule” of the r
ight hand.
• The thumb points in the +X direction
• The index finger points in the +Y direction
• The middle finger points in the +Z direction
