SINUMERIK 802D sl Operating and Service Training Manual Page 7
C104
C104
Section 3
Mold&Die commands
3.2 Programming Commands
Programming functions :
Tolerance of the axes used for machining.
• $MA_COMPRESS_POS_TOL[ AXIS]= Toleranve Value
AXIS MD 33100
The tolerance value applies with G642 and COMPCAD. The tole-
rance value is written to the relevant machine data.
This tolerance value should be the same or a a little bit higher 10-
20%, than the chord tolerance band of the CAM system.

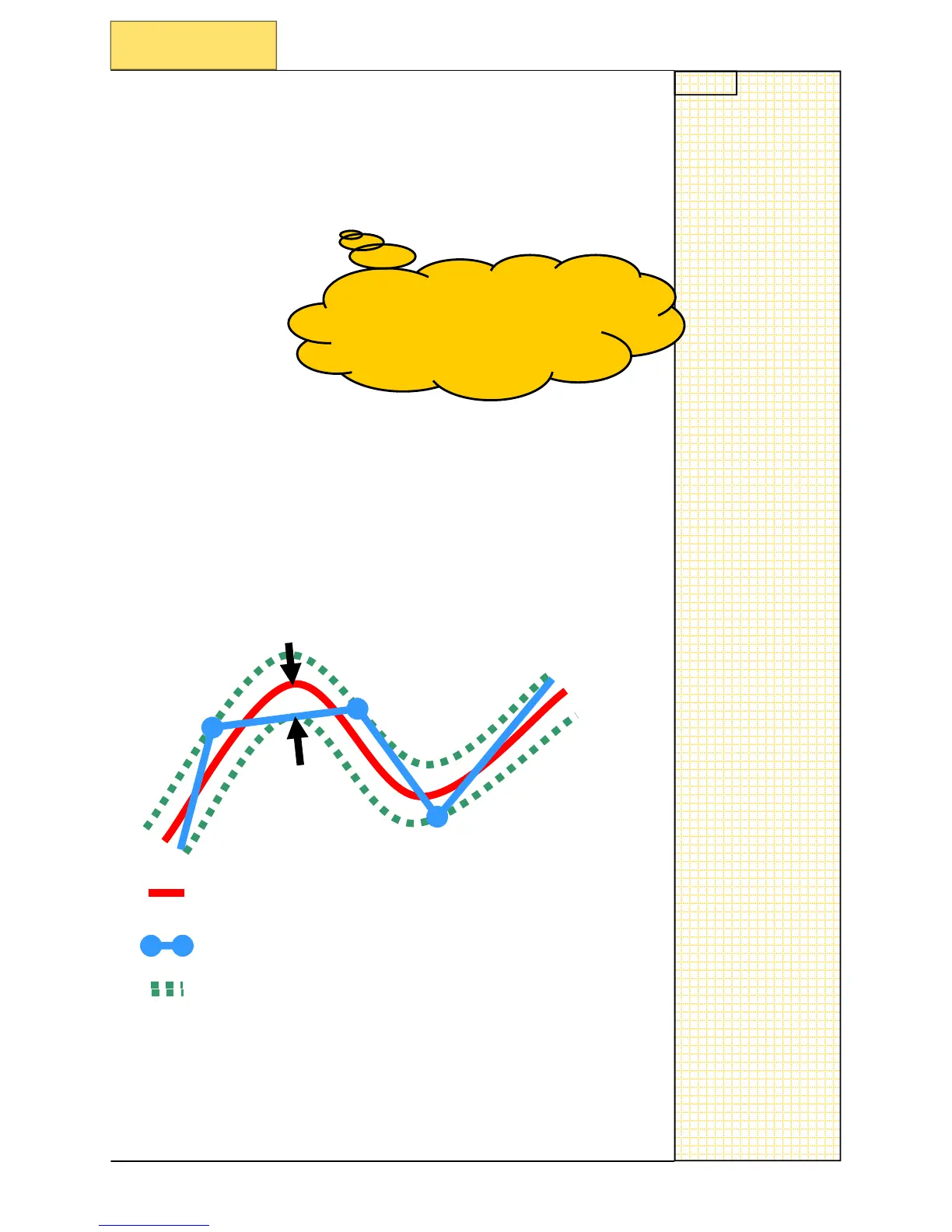

Freeform Surface:
P
1
P
2
P
3
Chordal Error
Ideal Cutter Path
Linearized Cutter Path
Tolerance Band
To change this Machine-
dat
a the Manufacturer-
Password has to be set
