SINUMERIK 802D sl Operating and Service Training Manual Page 2
C97
C97
Section 2
Miscellaneous codes
2.1 Miscellaneous codes

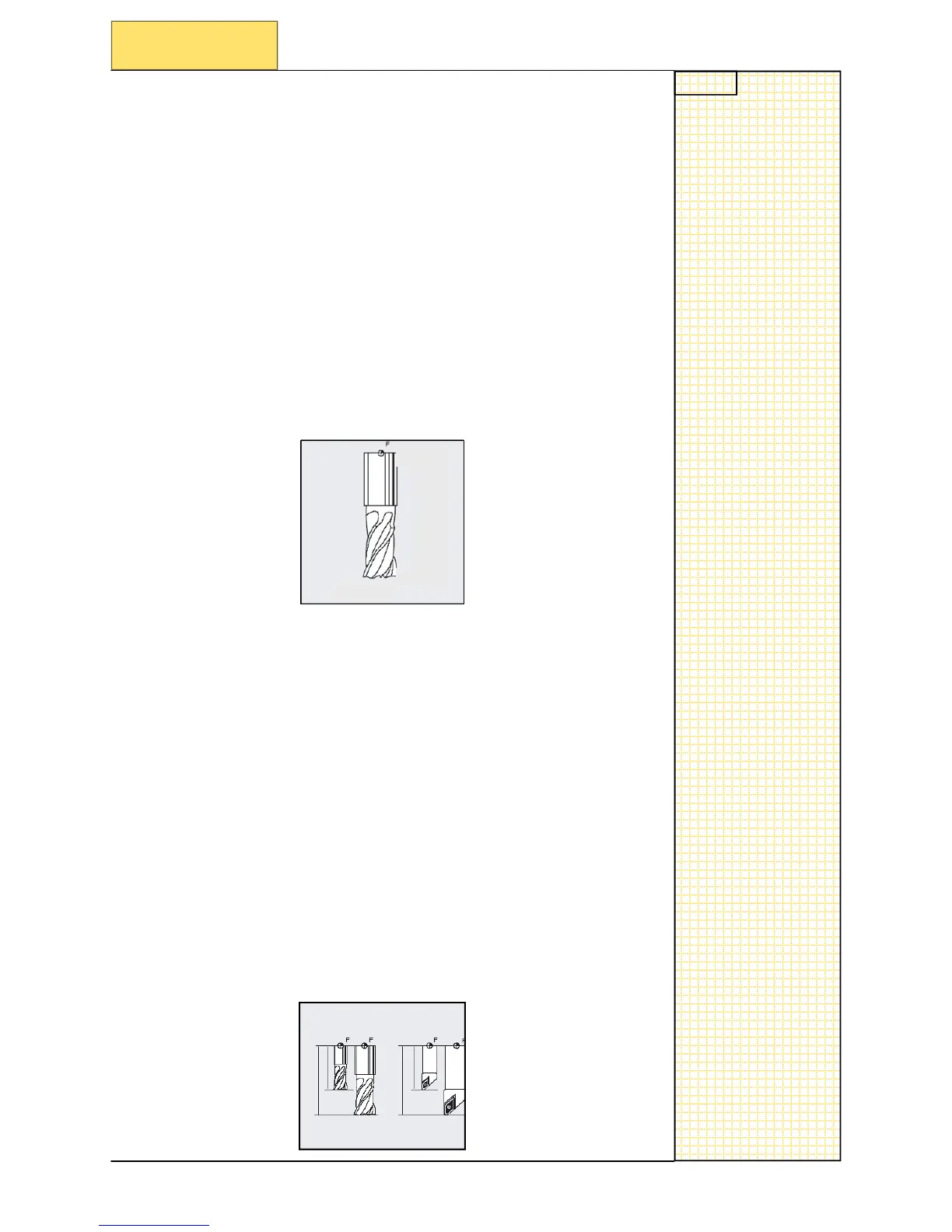

Tool T
Function
The tool selection take
s place when the T word is programmed.
However th
e change of tool depends:
• Tool change is performed either directly using T word for
“turning”.
• Or tool change is performed with the T word with an additional
instruction
M6 (see section 3 “miscellaneous functions) for mill-
ing
Programming
T1 D1
; tool call for “turning”
T1
M6
; tool call for “milling”
Tool offset number D
Function
It is possible
to assign 1 to 9 data fields with different tool offset
blocks t
o a specific tool.
If no D word is written, D
1 is automatically in effect.
If D0 is prog
rammed, the offset for the tool is inactive.
Programming
D…
; tool offset number: 1 … 9
D0
; no offset active
