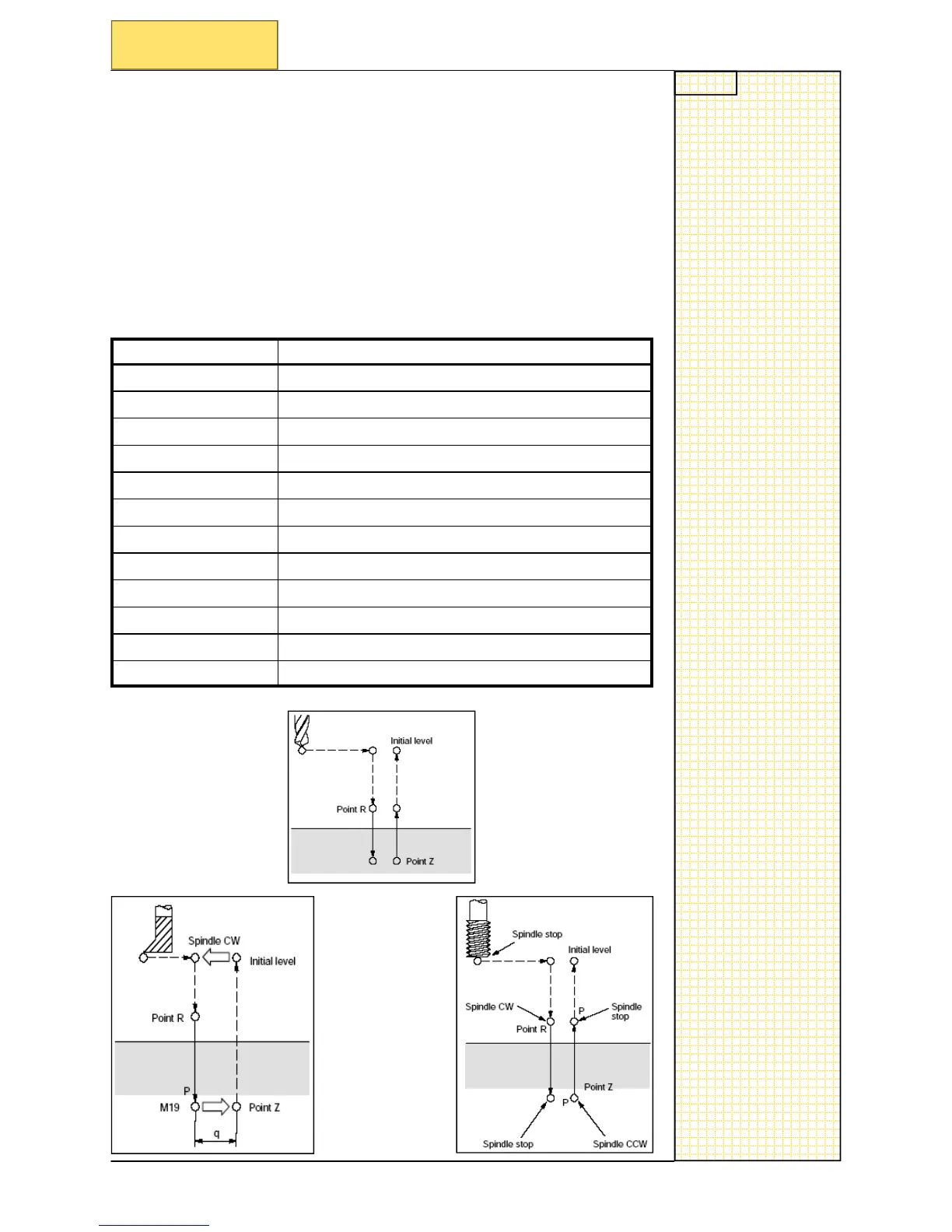

Canned cycles (G73 to G89)
Function
By using canned cycles, it is easier for the programmer to create
programs. By means of canned cycles, machining operations fre-
quently used can be determined in a single block through a G func-
tion. Normally more than one block is required when programming
without canned cycles. Using canned cycles can also shorten the
program in order to save memory.
G Code Description
G73 Deep hole drilling with chip break
G74 Counterclockwise tapping cycle
G76 Fine drilling cycle
G80 Cycle off
G89 Drilling cycle, retract using G01
G81 Counterbore drilling cycle
G82 Countersink drilling cycle
G83 Deep hole drilling cycle with swarf removal
G84 Clockwise tapping cycle
G85 Drilling cycle
G87 Back boring cycle
G86 Drilling cycle, retract using G00
