SINUMERIK 802D sl Operating and Service Training Manual Page 4
C92
C92
Section 2
G functions in detail

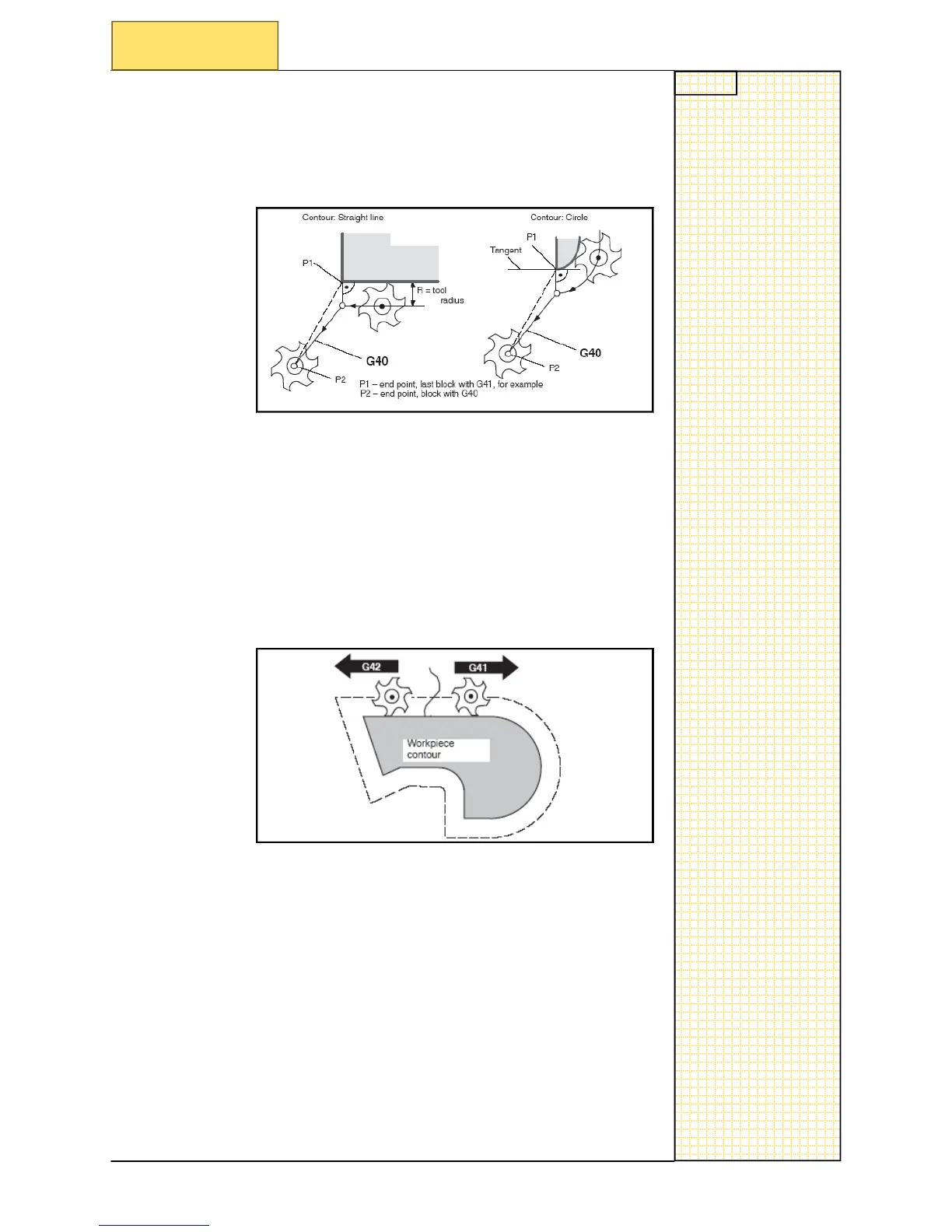

Tool radius compensation G40
Function
To deactivate tool compensation
Programming
G40
————
—————————————————————————————
Tool radius compensation G41
Function
To activate tool compensation, with t
he tool operating to the left of
the contour in the machining directio
n.
Programming
G41
Tool radius compensation G42
Function
To activate tool compensation, with t
he tool operating to the right of
the contour in the machining directio
n.
Programming
G42
————
—————————————————————————————
