Section 2

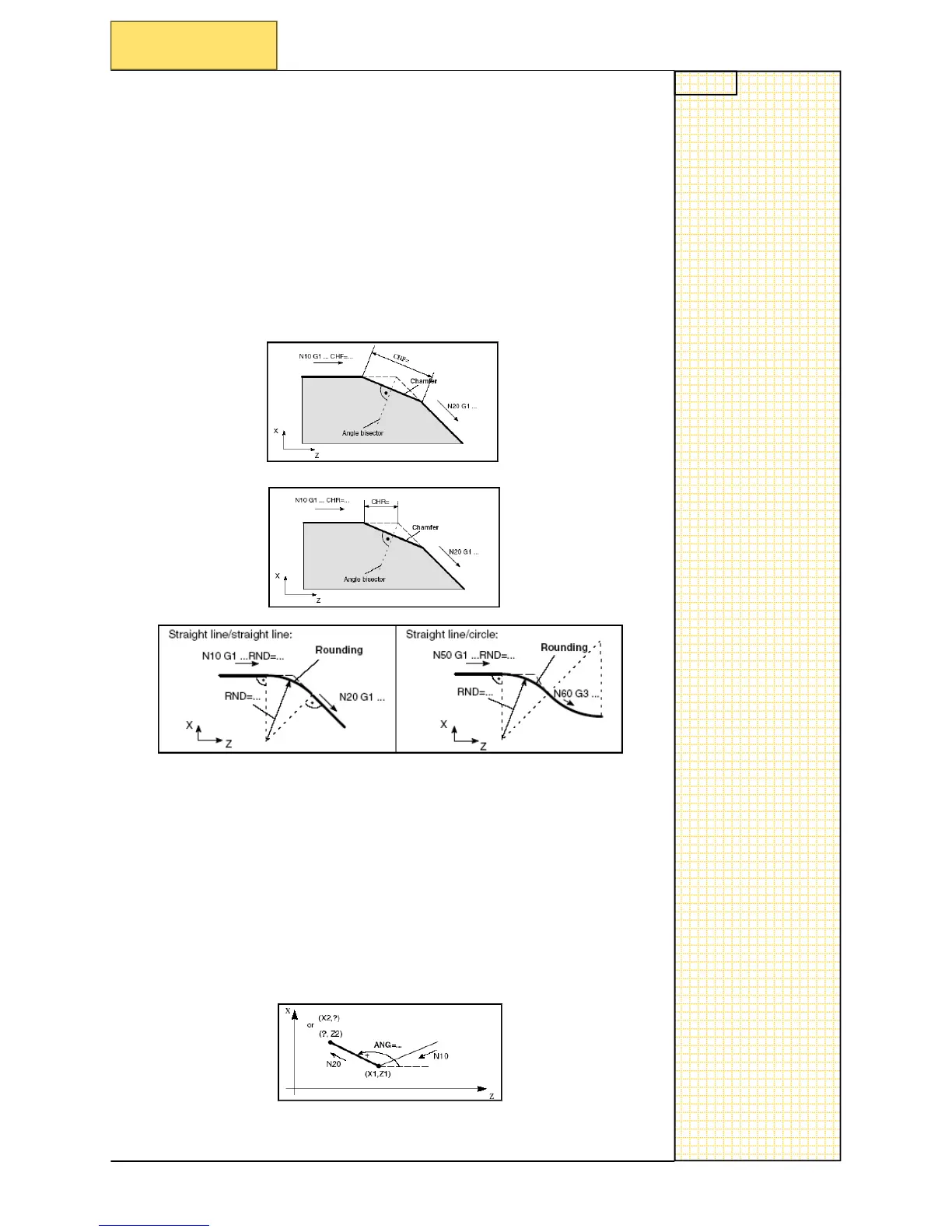

Rounding, chamfer - RND, CHF, CHR
Function
You can insert a chamfer (CHF of C
HR) or rounding (RND) elements
into a conto
ur intersection.
Programming
CHF
; insert chamfer, value is length of chamfer
CHR
; insert chamfer, value is side length of chamfer
RND
; insert rounding, value is radius of rounding
Angle - ANG
Function
If only one of the end points is
known for a straight line, and an angu-
lar dimensio
n is given on the drawing, this can be used for the
straight lin
e path.
Programming
ANG
; angle value for defining a straight line
2.1 Additional G functions in more detail
