Section 2
Saving All data to Compact Flash card
All data can be saved to a CF card using Copy and Paste functionality. To
use the feat
ure a CF card should be inserted into the controller, as can be

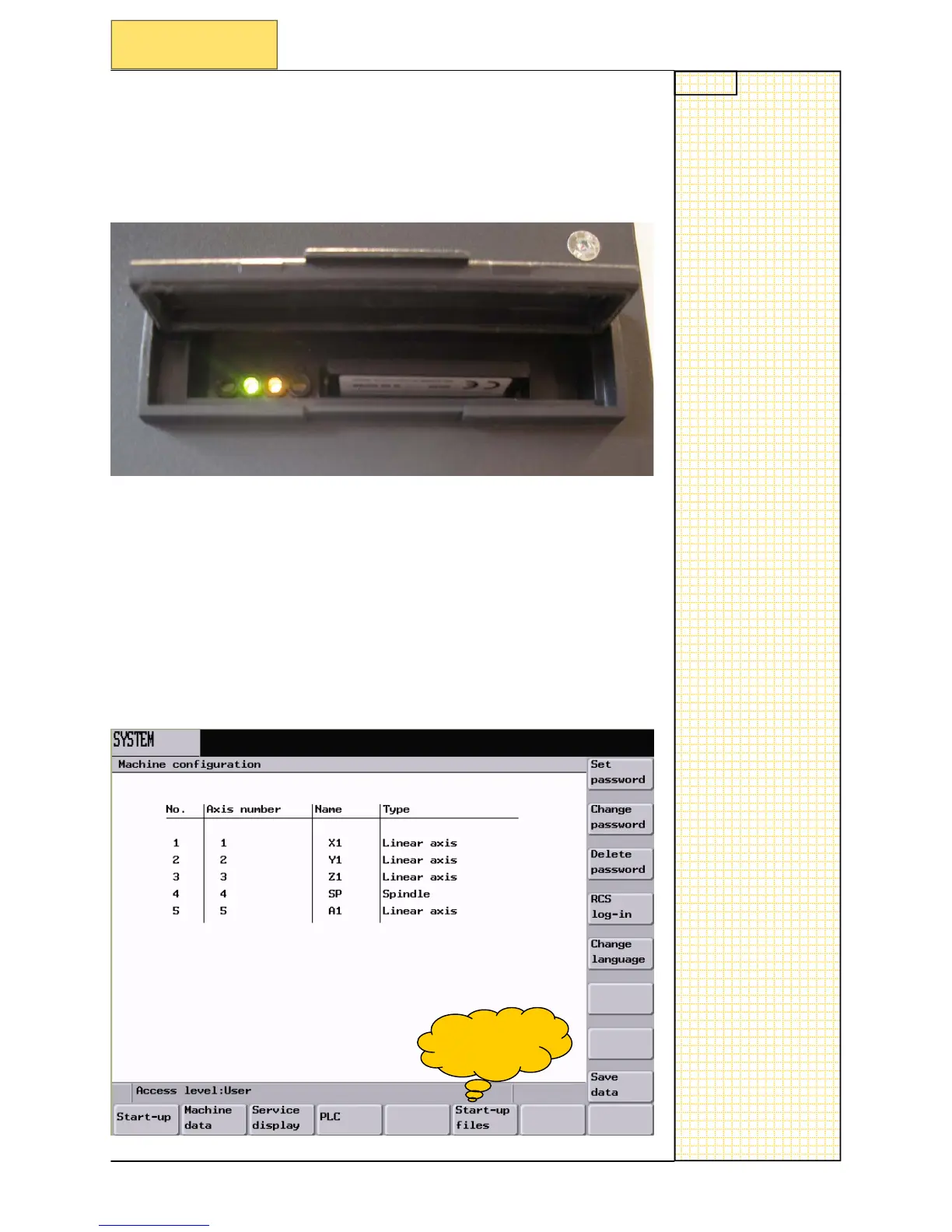

seen below:
The CF card can be up to 2GB, and should be formatted using the FAT16
or FAT32 file system.
To make a backup of the
machine configuration, that the contro
ller can be
restored to it
's original state requires that two archives should be saved to
the CF card. These two files can
be saved to the card in the SYSTEM area
of the contro
l. i.e. NC/PLC archive and HMI archive
The SYSTEM area of the control is r
eached by pressing the key : SHIFT +
ALARM.
The entry point for saving data is th
rough softkey Start-up files, see picture
below:
Entry for sav-
ing data
2.1 Saving All data to Compact Flash card
