SINUMERIK 802D sl Operating and Service Training Manual Page 12
C99
C99
Drilling, centering - CYCLE82
Programming
CYCLE82(RTP, RFP, SDIS, DP, DRP, DTB)
Parameters
RTP retraction plane (absolute)
RFP reference plane (absolute)
SDIS safety plane (enter without sign)
DP final drilling depth (absolute)
DPR final drilling depth relative to the reference plane
(enter without sign)
DTB dwell time at final depth (chip breaking)
These six parameters are used through out all the drilling cycles, but as
more functionality is required as are the number of parameters increased.

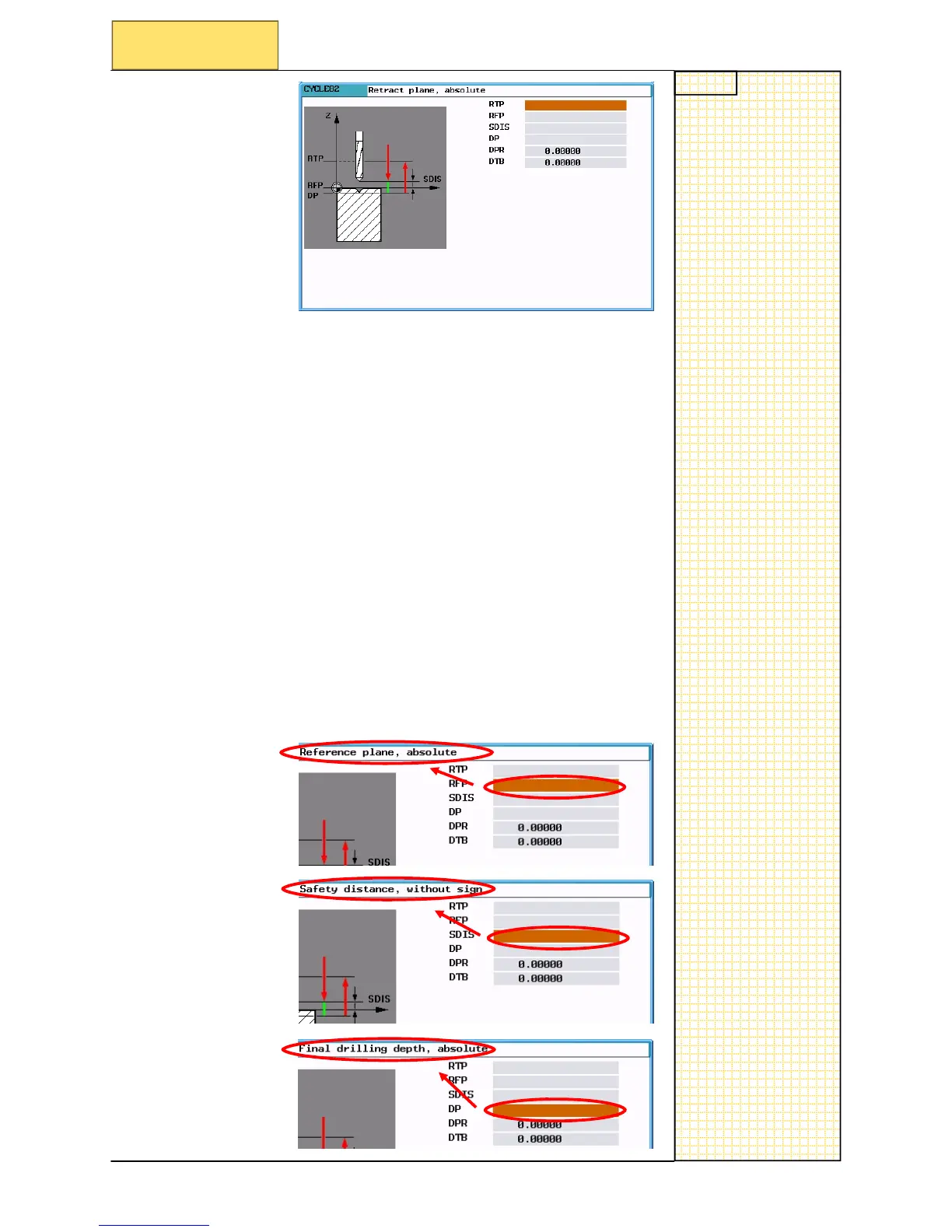

If you look below, as you cursor down the parameter windows you will get
a prompt with text, which relates to the picture guide.
Section 4
Drilling cycles
To Next Page
