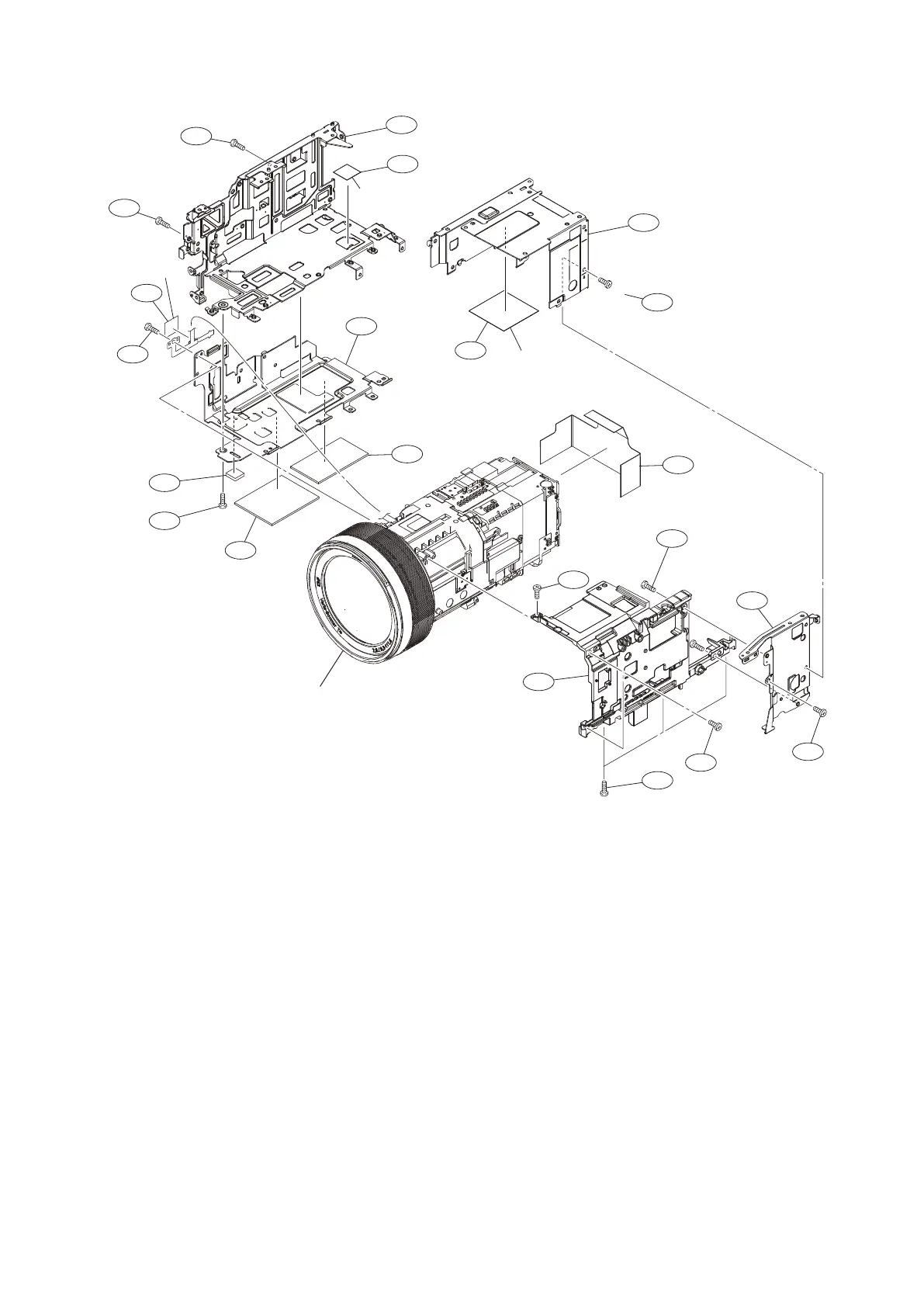

Sony HXR-NX80 - Lens Block

Lens Block
403
403
404
405
408
401
402
403
410
409
403
413
412
411
401
401
406
407
403
403
401
404
Refer to “Lens-1”
*1
*1
*1
*1: Use this to cut or splice so that it becomes the designated size.
(Size 12 x 12mm)
(Size 25 x 25mm)
(Size 12 x 12mm)
No. Part No. SP Description
401 2-635-562-71 s SCREW(M1.7) [P1.7 x 4]
402 3-079-115-01 s TAPE AS
403 3-080-204-21 s SCREW, TAPPING, P2 [P1.7 x 5]
404 4-446-014-01 s TAPE AS (2040))
405 4-533-030-01 s FRAME (L), LENS
406 4-533-032-02 s CHASSIS, LENS
407 4-533-033-01 s FRAME (R), LENS
408 4-533-034-01 s HEAT SINK (T)
409 4-697-318-01 s CUSHION, WF
410 4-697-320-01 s VC HEAT SINK (A)
411 4-697-329-01 s SHEET (915), CM RADIATION
412 4-697-331-01 s BACK, VC RADIATION SHEET
413 4-697-330-01 s FRONT, VC RADIATION SHEET
HXR-NX80/HXR-MC88
6-6
