3-16. Handle Section
3-16-1. HS-1003 Board
Procedure

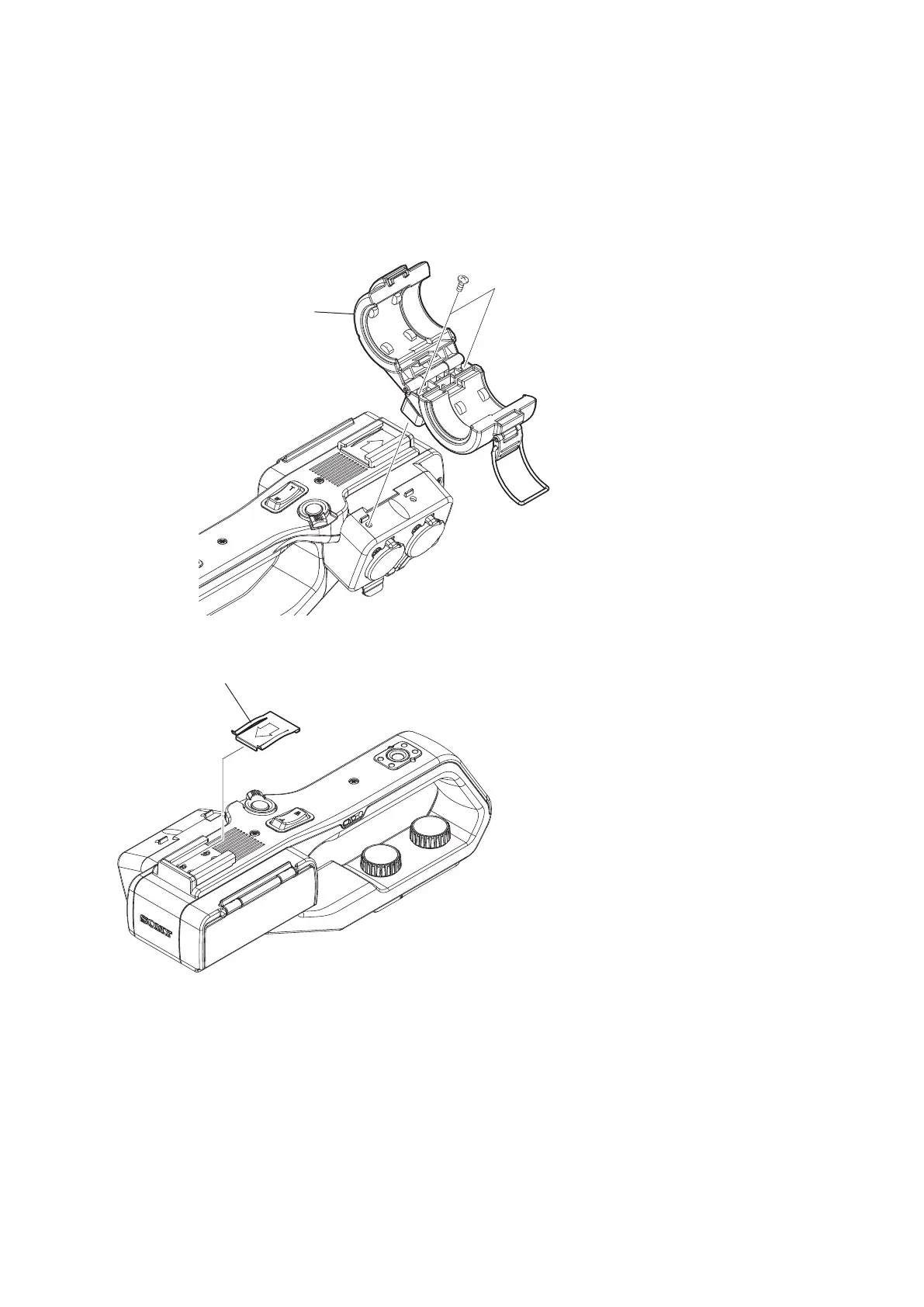

1. Remove the two screws, and then remove the microphone holder (931).
P2.6 x 5
Microphone holder (931) assembly
2. Remove the shoe spring.
Shoe spring
HXR-NX80/HXR-MC88
3-67
