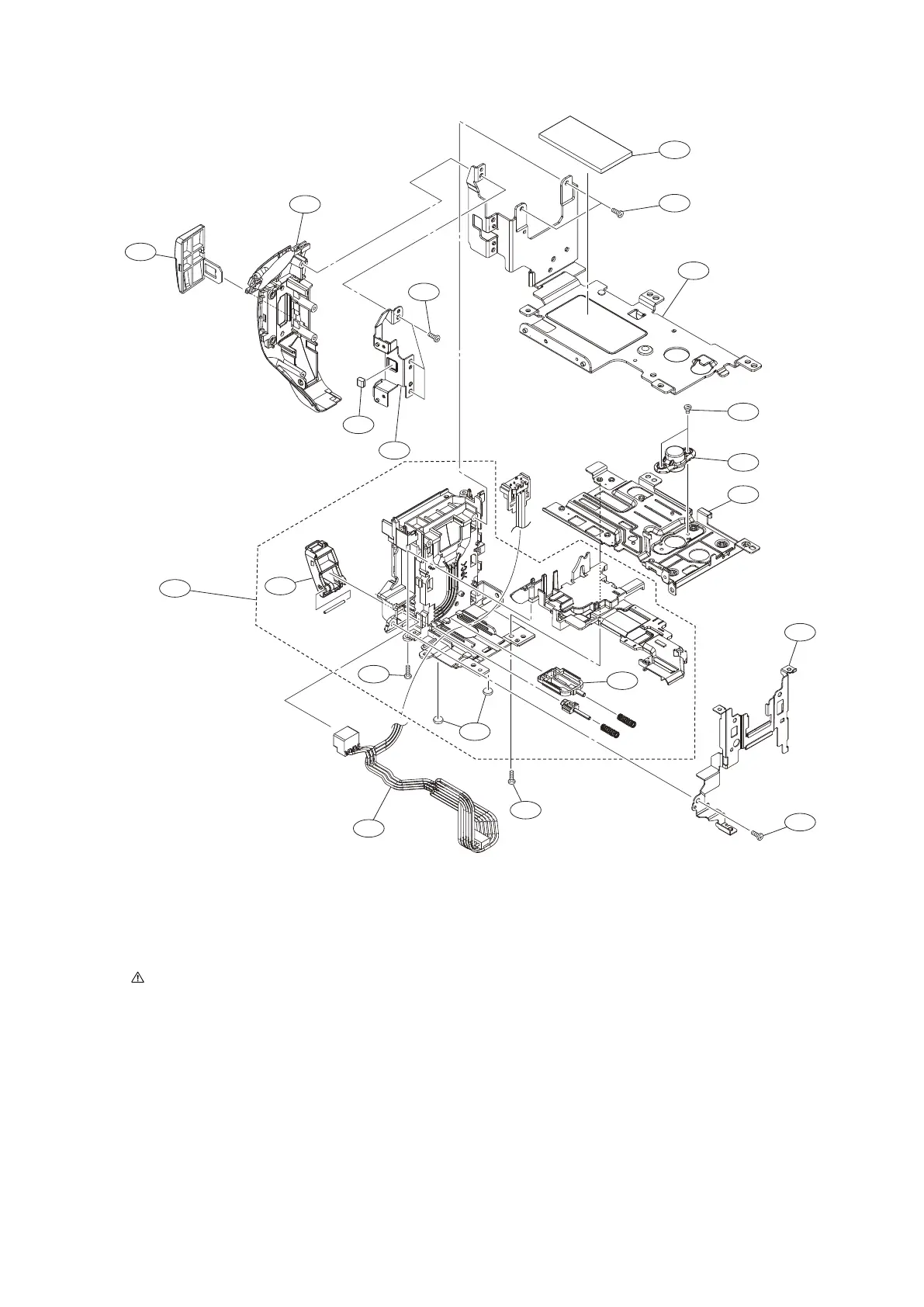

BT Block
Note 1
1008
1017
1006
*1: This screw cannot be reused. Discard the screw removed
once in servicing. Instead, use a new screw.
*1
1003
1009
1011
1010
1005
1006
1002
1007
1012
1004
1006
1014
1006
1015
1013
1016
1001
No. Part No. SP Description
1001 A-2063-657-A s SERVICE, BT PANEL BLOCK ASSY
1002
!
1-842-658-51 s JACK, DC
1003 2-187-345-21 s SCREW(M1.7),P2
1004 2-589-376-11 s FOOT (395), RUBBER
1005 2-635-562-71 s SCREW(M1.7) [P1.7 x 4]
1006 3-080-204-21 s SCREW, TAPPING, P2 [P1.7 x 5]
1007 4-154-463-01 s LOCK, BT
1008 4-272-357-01 s GASKET (P(389))
1009 4-478-904-11 s SCREW, TRIPOD
1010 4-532-952-01 s FRAME, BT
1011 4-532-953-01 s FRAME, BM
1012 4-544-434-02 s LID, DC
1013 4-544-437-01 s LID, HDMI
1014 4-697-289-01 s SHEET (BTM), VC RADIATION
1015 4-697-290-01 s HEAT SINK (BM)
1016 4-697-291-01 s CABINET, JK
No. Part No. SP Description
1017 4-697-294-01 s FRAME, JK
HXR-NX80/HXR-MC88
6-12

Sony HXR-NX80 Specifications

General

Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Supported video modes	1080p, 2160p
Video formats supported	AVC, AVCHD, H.264, MPEG4
Maximum video resolution	3840 x 2160 pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
Built-in microphone	Yes
Audio formats supported	LPCM
Digital zoom	- x
Optical zoom	12 x
Focal length range	9.3 - 111.6 mm
Interchangeable lens	-
Focal length (35mm film equivalent)	32.8 - 393.6 mm
Camera shutter speed	1/10000 s
Display diagonal	3.46 \
Display resolution (numeric)	1560000 pixels
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Sensor type	CMOS
Total megapixels	14.2 MP
Optical sensor size	1 \
PictBridge	No
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Memory slots	2
Camcorder media type	Memory card
Compatible memory cards	SD, SDHC, SDXC
Internal storage capacity	- GB
Battery type	NP-FV70A
Battery voltage	7.4 V
Battery capacity	- mAh
Battery life (max)	4.4 h
Battery technology	Lithium
Focus adjustment	Auto/Manual
Closest focusing distance	0.01 m
Viewfinder type	Electronic
Viewfinder resolution	2360000 pixels
Viewfinder screen size	0.39 \
Camcorder type	Handheld camcorder
Minimum illumination	1.7 lx
Product color	Black
Cables included	USB
Number of batteries included	1 pc(s)
Maximum image resolution	- pixels

Weight and Dimensions

Depth	287 mm
Width	130 mm
Height	181.5 mm
Weight	1320 g
