Sony HXR-NX80 User Manual

1-5. Flexible Flat Cable, Flexible Board and Coaxial Cable
1-5-1. Connecting/Disconnecting Flexible Flat Cable and Flexible Board
Note
• Be very careful not to fold flexible flat cable and flexible board. Life of flexible flat cable and flexible board will
be significantly shortened if they are folded.
• Each flexible flat cable and flexible board has conductor side and insulated side. If the flexible flat cable and flexible
board are connected in the wrong orientation of the conductor side and the insulated side, the circuit will not
function.
• Insert the flexible flat cable and flexible board straight.
• Check that the conductive surface of the flexible flat cable and flexible board are not contaminated.

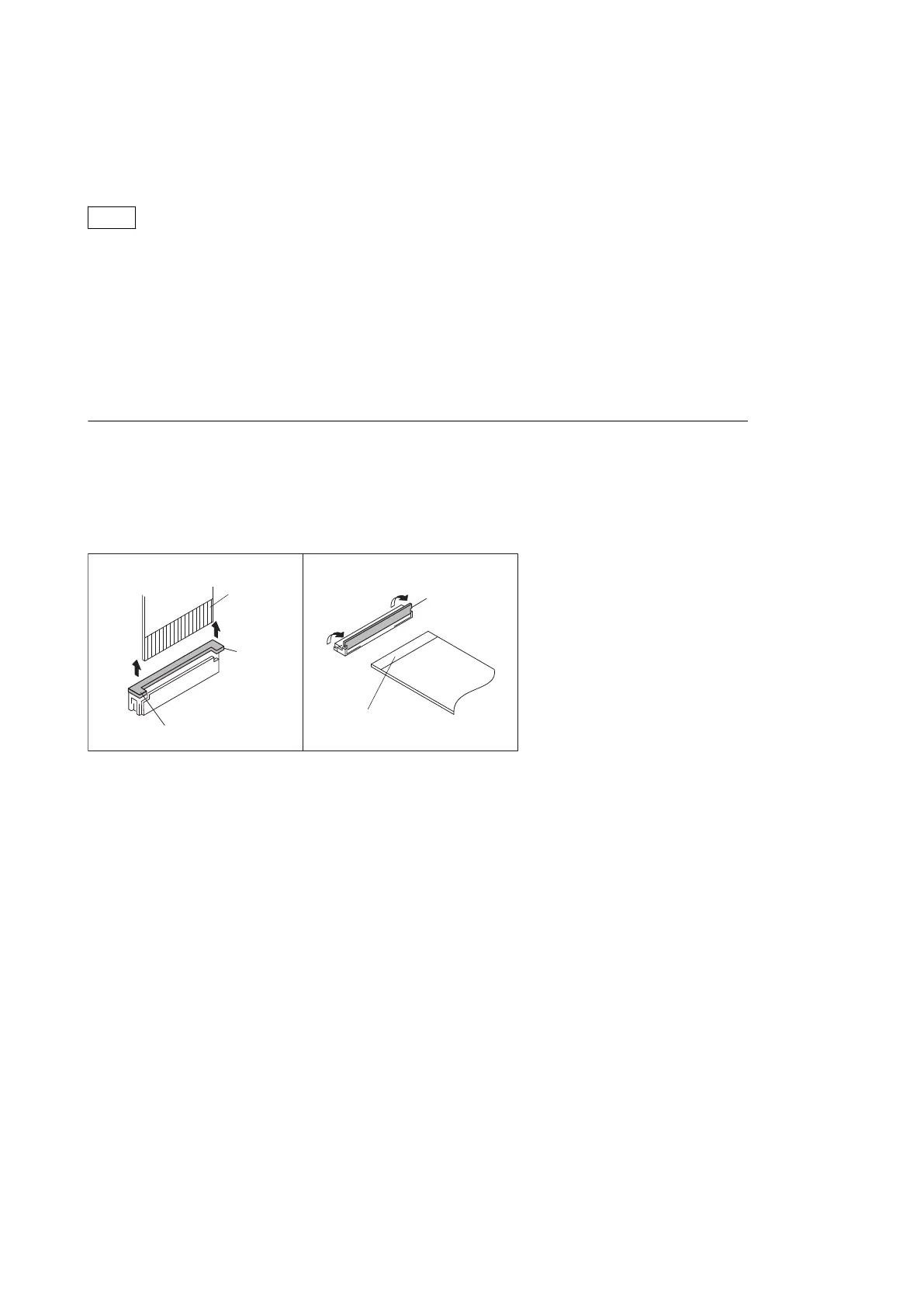

Type A to B
A
A
Contact
surface
A
Isolation
surface
Type A Type B
Disconnecting
1. Turn off the power.
2. Slide or lift up the portion A in the direction of the arrow to unlock and pull out the flexible flat cable and flexible
board.
Connecting
1. Insert the flexible flat cable and flexible board firmly as far as them will go with the insulating surface facing
upward.
2. Close the latch of the connector in the direction of arrow B to lock the flexible flat cable and flexible board.
HXR-NX80/HXR-MC88
1-9

Sony HXR-NX80 Specifications

General

Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Supported video modes	1080p, 2160p
Video formats supported	AVC, AVCHD, H.264, MPEG4
Maximum video resolution	3840 x 2160 pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
Built-in microphone	Yes
Audio formats supported	LPCM
Digital zoom	- x
Optical zoom	12 x
Focal length range	9.3 - 111.6 mm
Interchangeable lens	-
Focal length (35mm film equivalent)	32.8 - 393.6 mm
Camera shutter speed	1/10000 s
Display diagonal	3.46 \
Display resolution (numeric)	1560000 pixels
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Sensor type	CMOS
Total megapixels	14.2 MP
Optical sensor size	1 \
PictBridge	No
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Memory slots	2
Camcorder media type	Memory card
Compatible memory cards	SD, SDHC, SDXC
Internal storage capacity	- GB
Battery type	NP-FV70A
Battery voltage	7.4 V
Battery capacity	- mAh
Battery life (max)	4.4 h
Battery technology	Lithium
Focus adjustment	Auto/Manual
Closest focusing distance	0.01 m
Viewfinder type	Electronic
Viewfinder resolution	2360000 pixels
Viewfinder screen size	0.39 \
Camcorder type	Handheld camcorder
Minimum illumination	1.7 lx
Product color	Black
Cables included	USB
Number of batteries included	1 pc(s)
Maximum image resolution	- pixels

Weight and Dimensions

Depth	287 mm
Width	130 mm
Height	181.5 mm
Weight	1320 g
