3-14. VC-1045 Board
Preparation
1. Remove the cabinet (G) assembly. (Refer to “3-2. Cabinet (G) Assembly”.)
2. Remove the heat sink (GP) assembly. (Refer to “3-3. Heat Sink (GP) Assembly”.)
3. Remove the GR-1003 board. (Refer to “3-4. GR-1003 Board”.)
4. Remove the top cabinet assembly. (Refer to “3-5. Top Cabinet Assembly”.)
5. Remove the EF-1003 board. (Refer to “3-6. EF-1003 Board”.)
6. Remove the IR-1009 board. (Refer to “3-7. IR-1009 Board”.)
7. Remove the inner mold (T) assembly. (Refer to “3-8. Inner Mold (T) Assembly”.)
8. Remove the cabinet (R) assembly. (Refer to “3-9-1. Cabinet (R) Assembly”.)
9. Remove the BT panel assembly. (Refer to “3-10-1. BT Panel Assembly”.)
10. Remove the ZM-1005 board. (Refer to “3-11. ZM-1005 Board”.)
11. Remove the VF assembly. (Refer to “3-12. VF Assembly”.)
Procedure

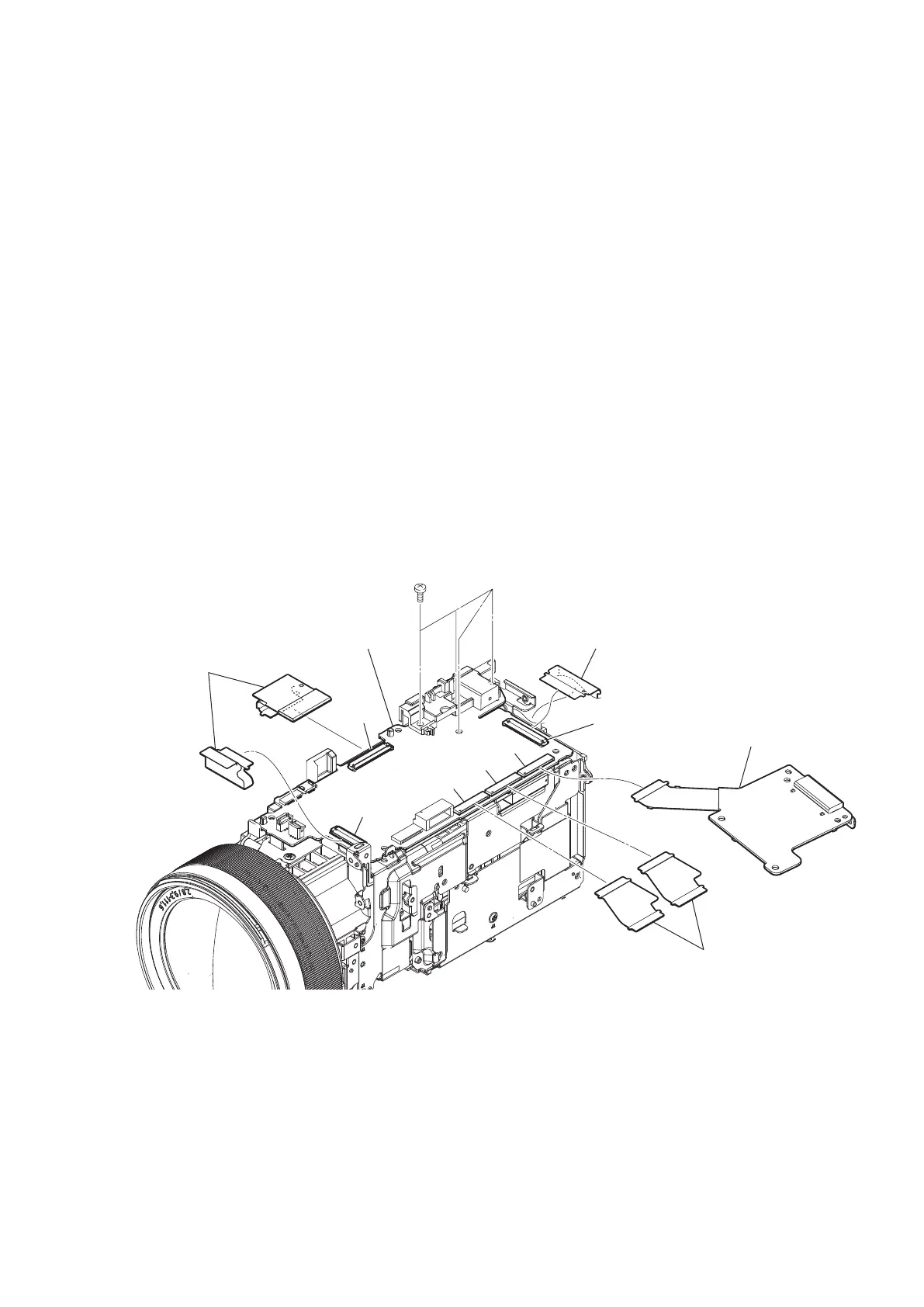

1. Remove the screw, and then remove the flexible board.
(1) Remove the four screws.
(2) Disconnect the five flexible boards and FP-2401 flexible board from the six connectors (CN4101 to CN4103,
CN4006, CN4007, CN4201) on the VC-1045 board.
FP-2401 flexible board
CN4101
CN4201
VC-1045 board
CN4006
CN4007
CN4103
CN4102
Precision screws
(P1.7 x 4)
Flexible boards
Flexible boards
Flexible board
HXR-NX80/HXR-MC88
3-43

Sony HXR-NX80 Specifications

General

Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Supported video modes	1080p, 2160p
Video formats supported	AVC, AVCHD, H.264, MPEG4
Maximum video resolution	3840 x 2160 pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
Built-in microphone	Yes
Audio formats supported	LPCM
Digital zoom	- x
Optical zoom	12 x
Focal length range	9.3 - 111.6 mm
Interchangeable lens	-
Focal length (35mm film equivalent)	32.8 - 393.6 mm
Camera shutter speed	1/10000 s
Display diagonal	3.46 \
Display resolution (numeric)	1560000 pixels
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Sensor type	CMOS
Total megapixels	14.2 MP
Optical sensor size	1 \
PictBridge	No
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Memory slots	2
Camcorder media type	Memory card
Compatible memory cards	SD, SDHC, SDXC
Internal storage capacity	- GB
Battery type	NP-FV70A
Battery voltage	7.4 V
Battery capacity	- mAh
Battery life (max)	4.4 h
Battery technology	Lithium
Focus adjustment	Auto/Manual
Closest focusing distance	0.01 m
Viewfinder type	Electronic
Viewfinder resolution	2360000 pixels
Viewfinder screen size	0.39 \
Camcorder type	Handheld camcorder
Minimum illumination	1.7 lx
Product color	Black
Cables included	USB
Number of batteries included	1 pc(s)
Maximum image resolution	- pixels

Weight and Dimensions

Depth	287 mm
Width	130 mm
Height	181.5 mm
Weight	1320 g
