Sony HXR-NX80 - HN-1004 Board Replacement

3-16-2. HN-1004 Board
Preparation
1. Remove the handle cover (upper) assembly. (Refer to “3-16-1. HS-1003 Board”.)
Procedure

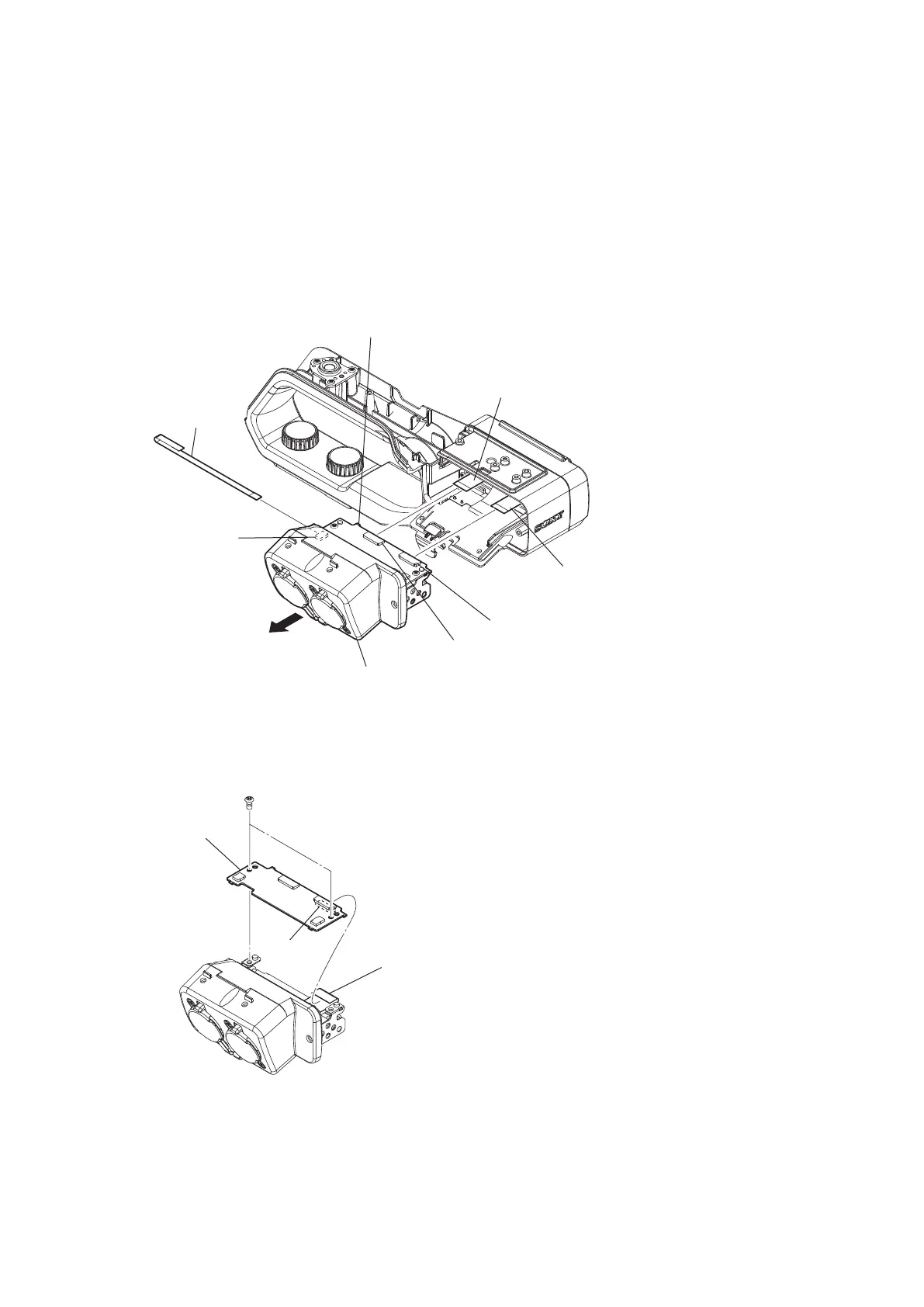

1. Draw the XLR block.
2. Disconnect the two flexible boards and flexible frat cable from the three connectors (CN3301, CN3302, CN3304)
on the HN-1004 board.
XLR block
Flexible flat cable
CN3302
CN3301
CN3304
HN-1004 board
Flexible board
(Control switch block (AU91000))
Flexible board
3. Remove the HN-1004 board.
(1) Remove the two screws.
(2) Disconnect the flexible flat cable from the connector (CN3303) on the HN-1004 board.
HN-1004 board
CN3303
Precision screws (P2 x 4)
Flexible flat cable
HXR-NX80/HXR-MC88
3-71
