3-15-4. P Frame Moving Assembly (1730)
Note
Before disassembling the main unit, be sure to set the zoom to the Tele end and turn off the camera.
Preparation
1. Remove the cabinet (G) assembly. (Refer to “3-2. Cabinet (G) Assembly”.)
2. Remove the heat sink (GP) assembly. (Refer to “3-3. Heat Sink (GP) Assembly”.)
3. Remove the GR-1003 board. (Refer to “3-4. GR-1003 Board”.)
4. Remove the top cabinet assembly. (Refer to “3-5. Top Cabinet Assembly”.)
5. Remove the EF-1003 board. (Refer to “3-6. EF-1003 Board”.)
6. Remove the IR-1009 board. (Refer to “3-7. IR-1009 Board”.)
7. Remove the inner mold (T) assembly. (Refer to “3-8. Inner Mold (T) Assembly”.)
8. Remove the cabinet (R) assembly. (Refer to “3-9-1. Cabinet (R) Assembly”.)
9. Remove the BT panel assembly. (Refer to “3-10-1. BT Panel Assembly”.)
10. Remove the ZM-1005 board. (Refer to “3-11. ZM-1005 Board”.)
11. Remove the VF assembly. (Refer to “3-12. VF Assembly”.)
12. Remove the MS-1037 board. (Refer to “3-13. MS-1037 Board”.)
13. Remove the VC-1045 board. (Refer to “3-14. VC-1045 Board”.)
14. Remove the lens assembly. (Refer to “3-15-1. Lens Assembly”.)
Procedure

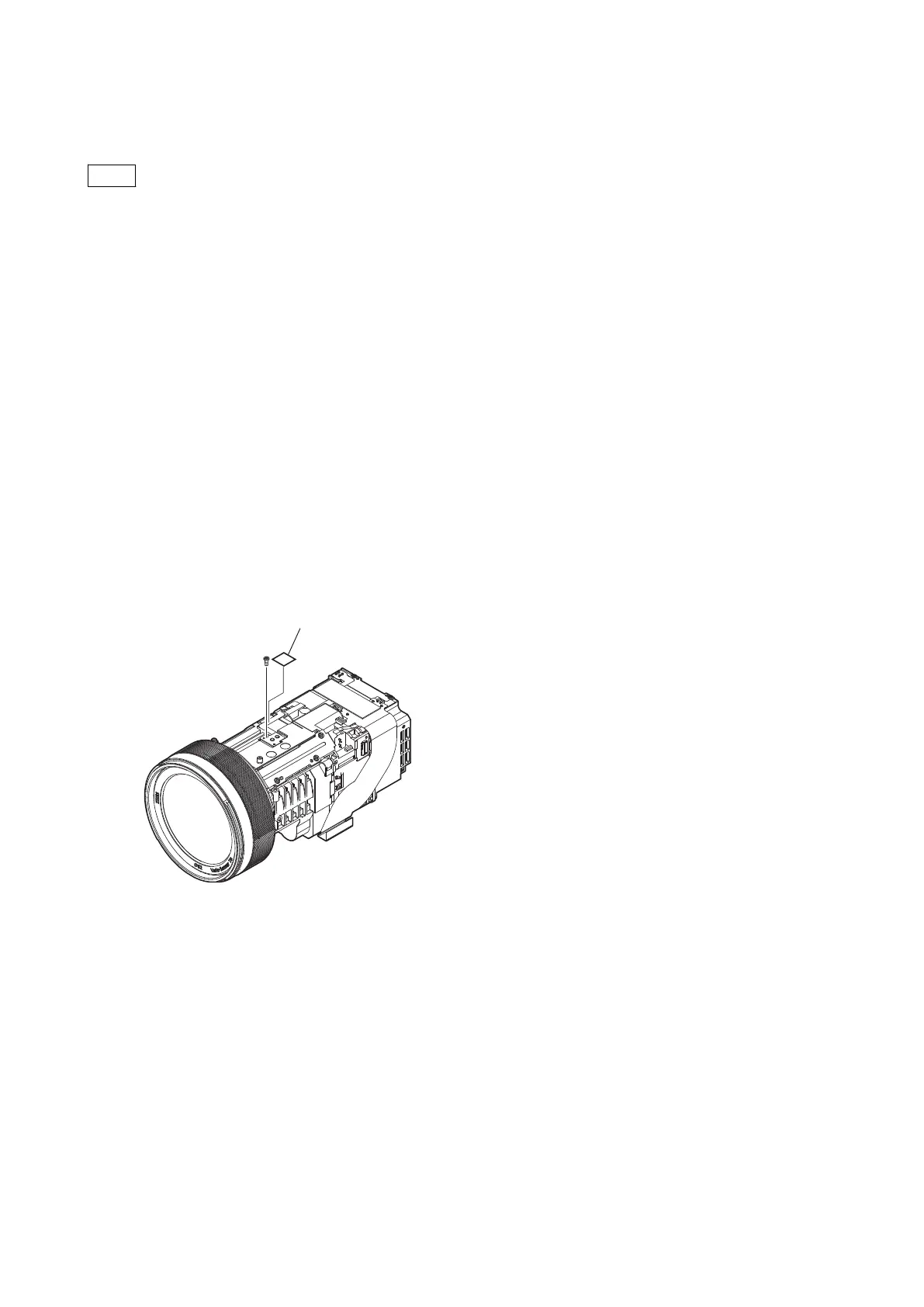

1. Peel off the tape, and then remove the screw.
Tapping screw (P1.4 x 3)
Tape
HXR-NX80/HXR-MC88
3-58

Sony HXR-NX80 Specifications

General

Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Supported video modes	1080p, 2160p
Video formats supported	AVC, AVCHD, H.264, MPEG4
Maximum video resolution	3840 x 2160 pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
Built-in microphone	Yes
Audio formats supported	LPCM
Digital zoom	- x
Optical zoom	12 x
Focal length range	9.3 - 111.6 mm
Interchangeable lens	-
Focal length (35mm film equivalent)	32.8 - 393.6 mm
Camera shutter speed	1/10000 s
Display diagonal	3.46 \
Display resolution (numeric)	1560000 pixels
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Sensor type	CMOS
Total megapixels	14.2 MP
Optical sensor size	1 \
PictBridge	No
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Memory slots	2
Camcorder media type	Memory card
Compatible memory cards	SD, SDHC, SDXC
Internal storage capacity	- GB
Battery type	NP-FV70A
Battery voltage	7.4 V
Battery capacity	- mAh
Battery life (max)	4.4 h
Battery technology	Lithium
Focus adjustment	Auto/Manual
Closest focusing distance	0.01 m
Viewfinder type	Electronic
Viewfinder resolution	2360000 pixels
Viewfinder screen size	0.39 \
Camcorder type	Handheld camcorder
Minimum illumination	1.7 lx
Product color	Black
Cables included	USB
Number of batteries included	1 pc(s)
Maximum image resolution	- pixels

Weight and Dimensions

Depth	287 mm
Width	130 mm
Height	181.5 mm
Weight	1320 g
