Sony HXR-NX80 - VF Assembly Replacement

3-12. VF Assembly
Preparation
1. Remove the cabinet (G) assembly. (Refer to “3-2. Cabinet (G) Assembly”.)
2. Remove the heat sink (GP) assembly. (Refer to “3-3. Heat Sink (GP) Assembly”.)
3. Remove the top cabinet assembly. (Refer to “3-5. Top Cabinet Assembly”.)
4. Remove the EF-1003 board. (Refer to “3-6. EF-1003 Board”.)
5. Remove the IR cabinet assembly. (Refer to “3-7. IR-1009 Board”.)
6. Remove the inner mold (T) assembly. (Refer to “3-8. Inner Mold (T) Assembly”.)
7. Remove the cabinet (R) assembly. (Refer to “3-9-1. Cabinet (R) Assembly”.)
8. Remove the BT panel assembly. (Refer to “3-10-1. BT Panel Assembly”.)
9. Remove the ZM-1005 board. (Refer to “3-11. ZM-1005 Board”.)
Procedure

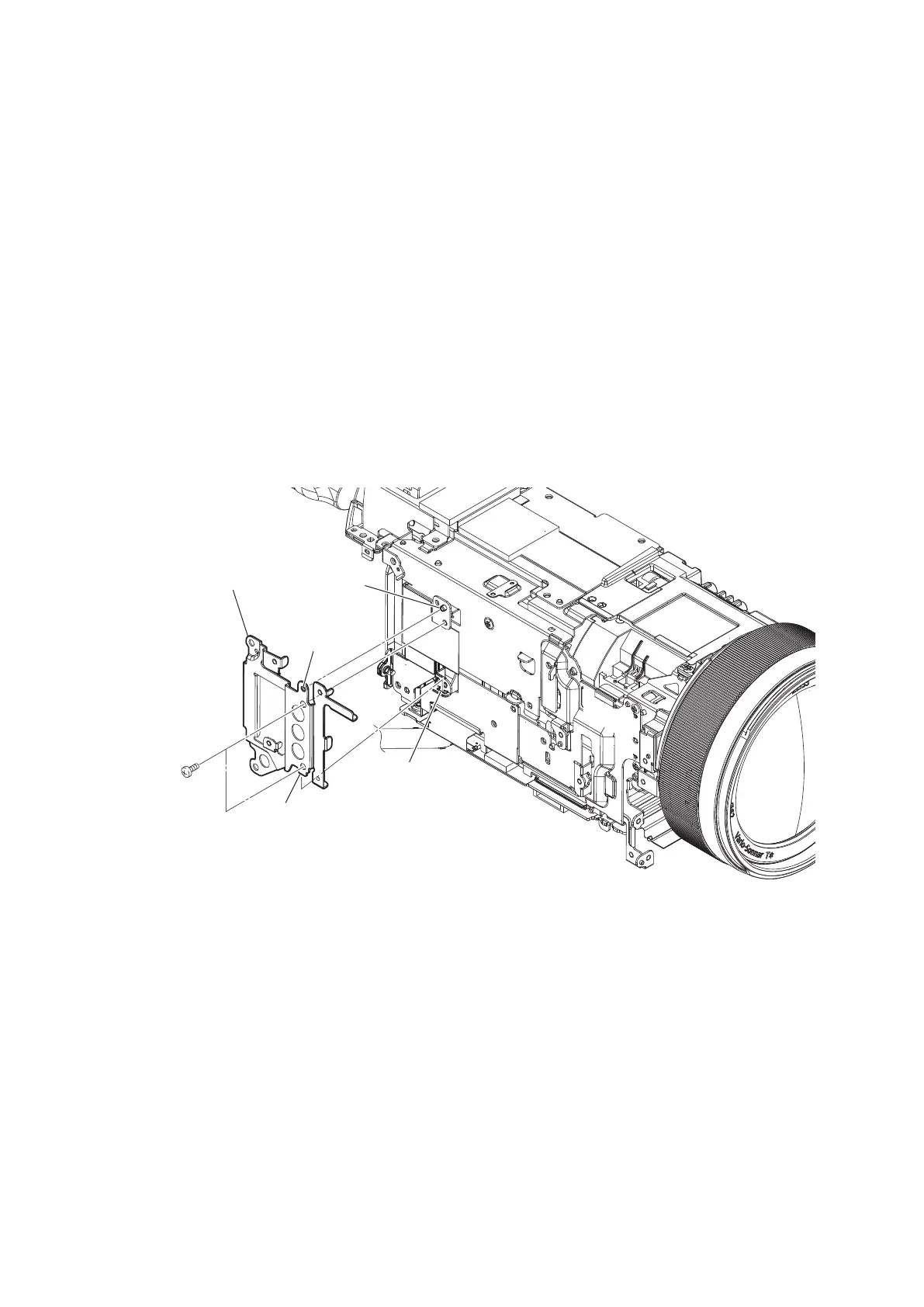

1. Remove the ZM frame.
(1) Remove the two screws.
(2) Release the boss and hook, and then remove the ZM frame.
ZM frame
Precision screws
(P1.7 x 4)
Boss
Hole
Hole
Hook
HXR-NX80/HXR-MC88
3-39
