Sony HXR-NX80 User Manual

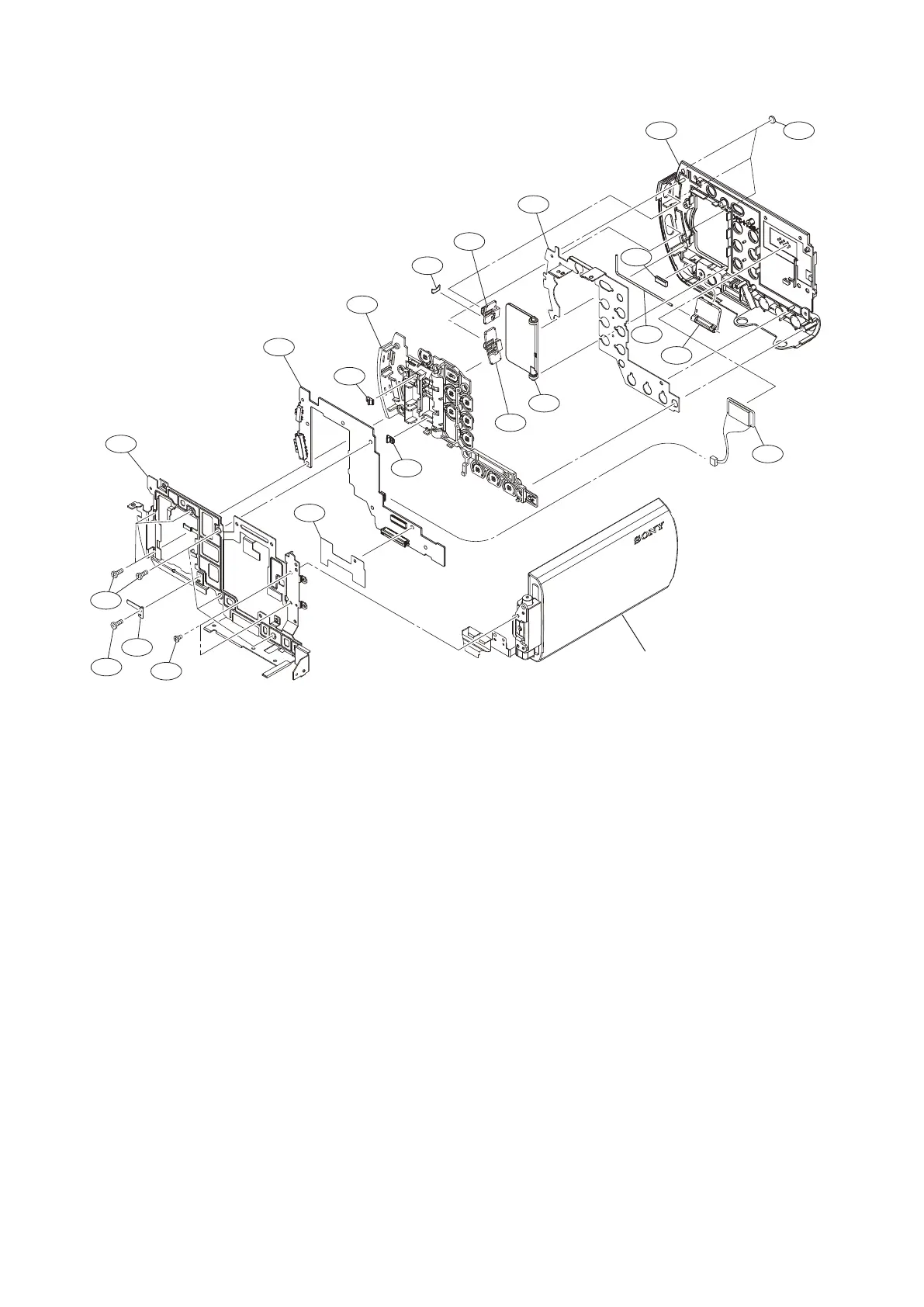

Cabinet R
603
611
615
601
607
619
618
609
620
612
617
613
604
602
614
610
608
608
616
605
606
*1: This screw cannot be reused. Discard the screw removed
once in servicing. Instead, use a new screw.
*1
Refer to “LCD Block”
No. Part No. SP Description
601 A-2189-088-A s MOUNT, CK-1019
602 1-858-528-71 s SPEAKER(2-1CM)
603 2-187-345-21 s SCREW(M1.7),P2 [P1.7 x 2.5]
604 2-589-376-11 s FOOT (395), RUBBER
605 2-599-475-01 s SCREW(M1.7) [P1.7 x 2]
606 3-078-890-11 s SCREW, TAPPING [P1.7 x 4]
607 4-532-974-11 s HOLDER, MS
608 4-532-975-11 s LIGHT, MS GUIDE,
609 4-532-976-01 s HEAT SINK (R)
610 4-532-977-12 s LID, MS
611 4-532-978-01 s SPRING, MS LID
612 4-532-980-01 s SHAFT, HDMI
613 4-532-981-11 s LID, HP
614 4-532-983-11 s SELECTION (SW LOWER), ND
615 4-532-984-01 s FRAME, R
616 4-532-985-01 s INSULATING SHEET (CK)
617 4-537-511-01 s GASKET (R)
618 4-541-715-01 s SELECTION (SW UPPER) (913)
619 4-541-716-01 s SHEET, SW
620 4-544-442-21 s CABINET (R)
[For HXR-NX80]
4-544-442-31 s CABINET (R)
[For HXR-MC88]
HXR-NX80/HXR-MC88
6-8

Sony HXR-NX80 Specifications

General

Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Supported video modes	1080p, 2160p
Video formats supported	AVC, AVCHD, H.264, MPEG4
Maximum video resolution	3840 x 2160 pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
Built-in microphone	Yes
Audio formats supported	LPCM
Digital zoom	- x
Optical zoom	12 x
Focal length range	9.3 - 111.6 mm
Interchangeable lens	-
Focal length (35mm film equivalent)	32.8 - 393.6 mm
Camera shutter speed	1/10000 s
Display diagonal	3.46 \
Display resolution (numeric)	1560000 pixels
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Sensor type	CMOS
Total megapixels	14.2 MP
Optical sensor size	1 \
PictBridge	No
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Memory slots	2
Camcorder media type	Memory card
Compatible memory cards	SD, SDHC, SDXC
Internal storage capacity	- GB
Battery type	NP-FV70A
Battery voltage	7.4 V
Battery capacity	- mAh
Battery life (max)	4.4 h
Battery technology	Lithium
Focus adjustment	Auto/Manual
Closest focusing distance	0.01 m
Viewfinder type	Electronic
Viewfinder resolution	2360000 pixels
Viewfinder screen size	0.39 \
Camcorder type	Handheld camcorder
Minimum illumination	1.7 lx
Product color	Black
Cables included	USB
Number of batteries included	1 pc(s)
Maximum image resolution	- pixels

Weight and Dimensions

Depth	287 mm
Width	130 mm
Height	181.5 mm
Weight	1320 g
