ICP-X7000 Control Panel

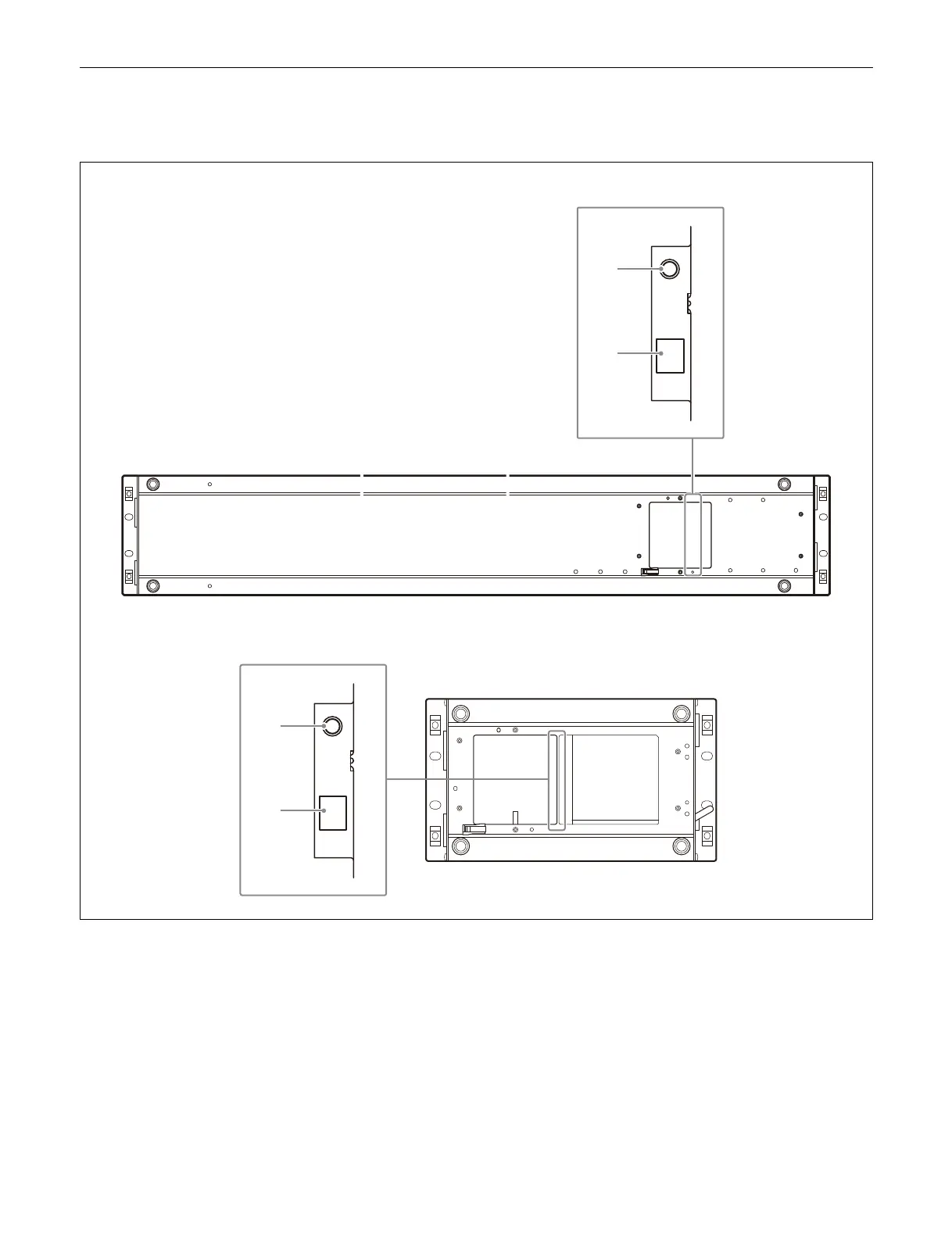

Bottom view

a DC IN connector

Connect to the supplied AC adaptor.

b L

AN connector (RJ-45, PoE+, 1000BASE-T

compliant)

Connect to the switcher system network via an Ethernet

swit

ch.

Operation without using the AC adaptor is supported

usi

ng a PoE+ (Power over Ethernet Plus) compatible

Ethernet switch.

For details about PoE+ (Power over Ethernet Plus)

compat

ible Ethernet switches that can be used, consult

your Sony representative.
