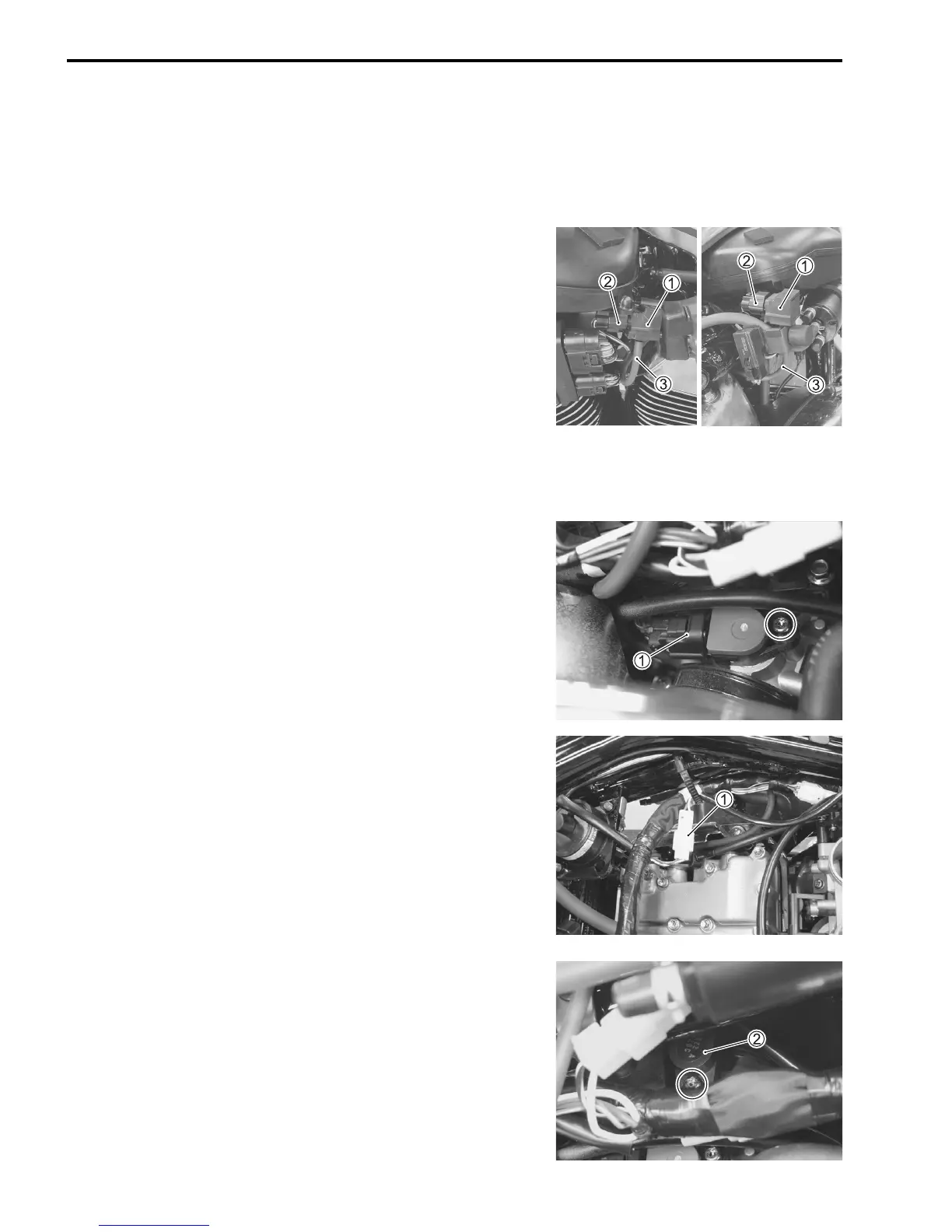

118 VL1500K5 (’05-MODEL)
SENSORS
IAP SENSOR INSPECTION
The intake air pressure sensor is located at the rear side of the
air cleaner box. (!Page 49)
IAP SENSOR REMOVAL/INSTALLATION
• Remove the frame head covers and frame upper covers.
(!VL1500%Service Manual 6-3)
• Remove the IAP sensors
1 and disconnect the couplers
2
and vacuum hoses
3.
• Installation is in the reverse order of removal.
TP SENSOR INSPECTION
The throttle position sensor is installed on the No. 2 throttle
body. (!Page 53)
TP SENSOR REMOVAL/INSTALLATION
• Remove the right frame head cover and right frame upper
cover. (!VL1500%Service Manual 6-3)
• Remove the TP sensor and disconnect the coupler
1.
# 09930-11950: Torx wrench
• Install the TP sensor to the No. 2 throttle body.
(!Page 108)
• TP sensor setting procedure. (!Page 36)
STP SENSOR INSPECTION
The secondary throttle position sensor is installed on the No. 2
throttle body. (!Page 77)
STP SENSOR REMOVAL/INSTALLATION
• Remove the right frame head cover and right frame upper
cover. (!VL1500%Service Manual 6-3)
• Disconnect the coupler
1 and
remove the STP sensor
2.
# 09930-11950: Torx wrench
• Install the STP sensor to the No. 2 throttle body.
(!Page 108)
• STP sensor setting procedure. (!Page 110)
