VL1500K5 (’05-MODEL) 141
SPEEDOMETER
If the speedometer, odometer or trip meter does not function
properly, inspect the speedometer sensor and connection of
coupler
1. If the speedometer sensor and connection are all
right, replace the meter with a new one.

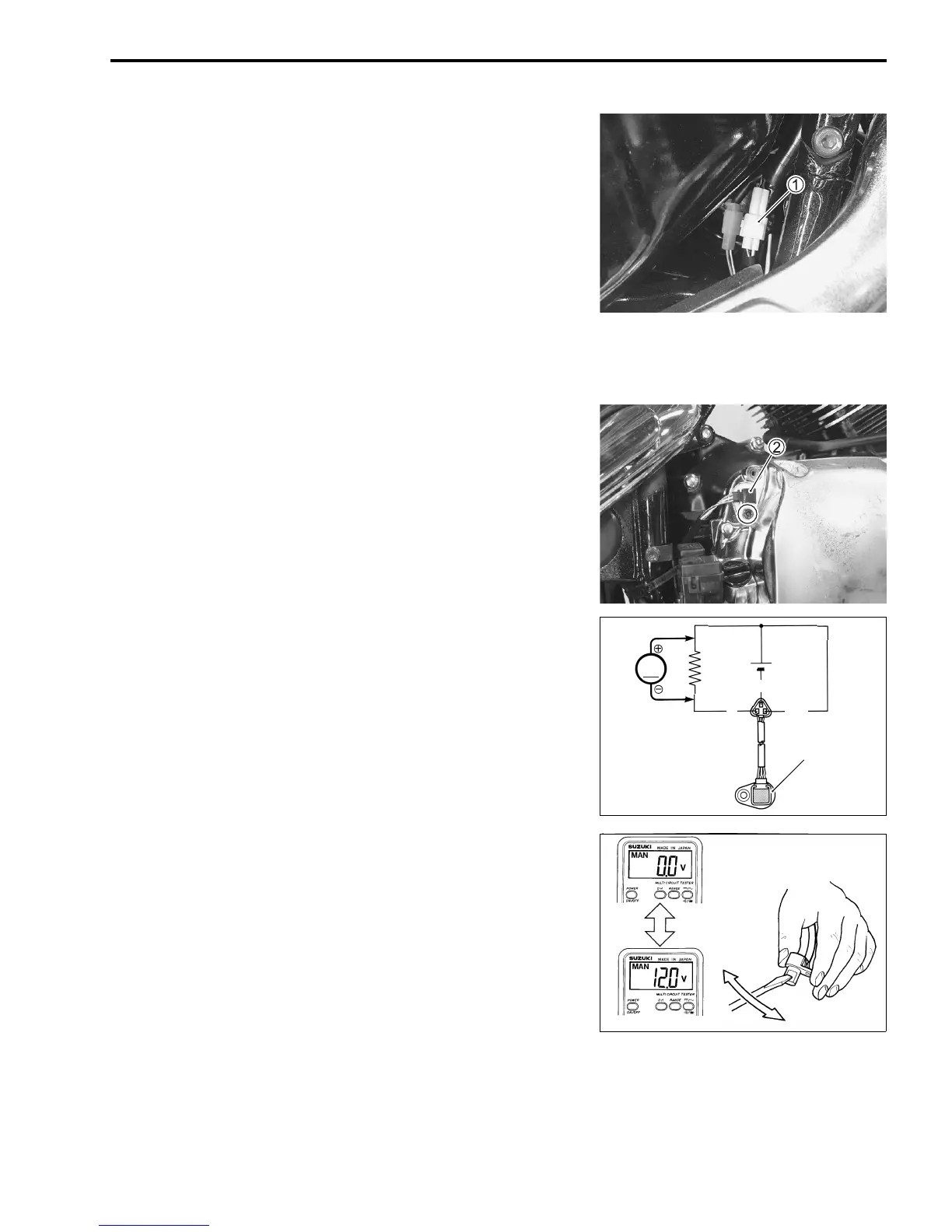

SPEEDOMETER SENSOR
• Remove the right frame cover.
(! VL1500 Service Manual 6-2)
• Remove the rear clutch cover.
(! VL1500 Service Manual 3-6)
• Disconnect the speed sensor lead wire coupler
1.
• Remove the speedometer sensor
2 by removing its mounting
bolt.
• Connect 12 V battery, 10 kΩ resistor and the multi-circuit
tester as shown in the right illustration.
R/B: Red with Black tracer
B/W: Black with White tracer
P: Pink
# 09900-25008: Multi-circuit tester set
* Tester knob indication: Voltage (+)
• Under above condition, if a suitable screwdriver touching the
pick-up surface of the speedometer sensor is moved, the
tester voltage reading should change (0 V → 12 V or 12 V →
0 V). If the tester voltage reading does not change, replace
the speedometer sensor with a new one.
NOTE:
The highest voltage reading in this test will be the same as that
of battery voltage.
RELAYS
FUEL PUMP RELAY
!Page 96
Speed sensor
12V
10 kΩ
V
P
B/W
R/B
(Battery voltage)
