122 VL1500K5 (’05-MODEL)

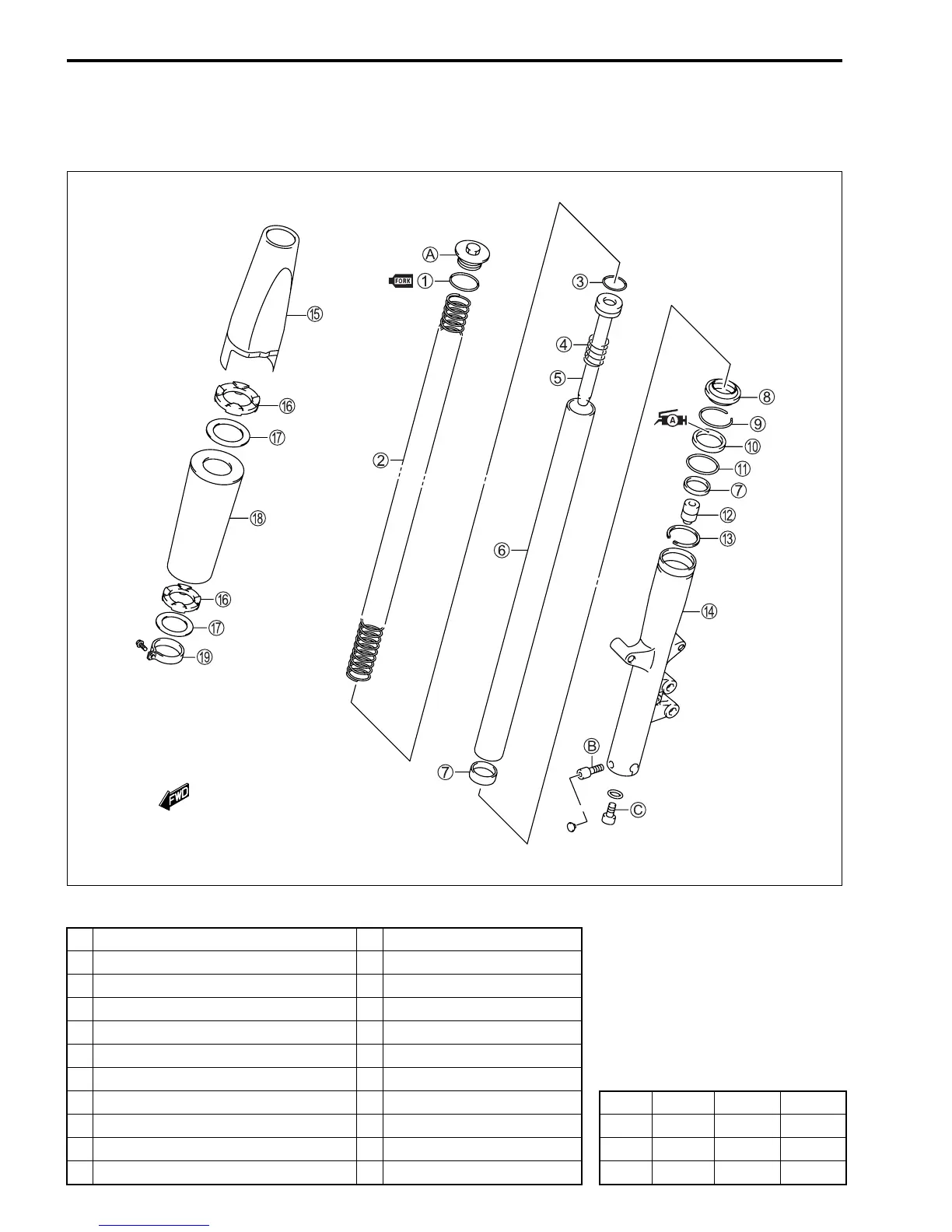

FRONT FORK
CONSTRUCTION
1 O-ring
B Oil lock piece
2 Front fork spring
C Inner tube cover guide
3 Damper rod ring
D Outer tube
4 Rebound Spring
E Upper inner tube cover
5 Damper rod
F Rubber
6 Inner tube
G Washer
7 Slide metal
H lower inner tube cover &
8 Dust seal
I Inner tube cover stopper ITEM N·m kgf-m lb-ft
9 Oil seal stopper ring
A Front fork cap bolt
A 23 2.3 16.5
0 Oil seal
B Front axle pinch bolt
B 23 2.3 16.5
A Oil seal retainer
C Damper rod bolt
C 20 2.0 14.5
