VL1500K5 (’05-MODEL) 119

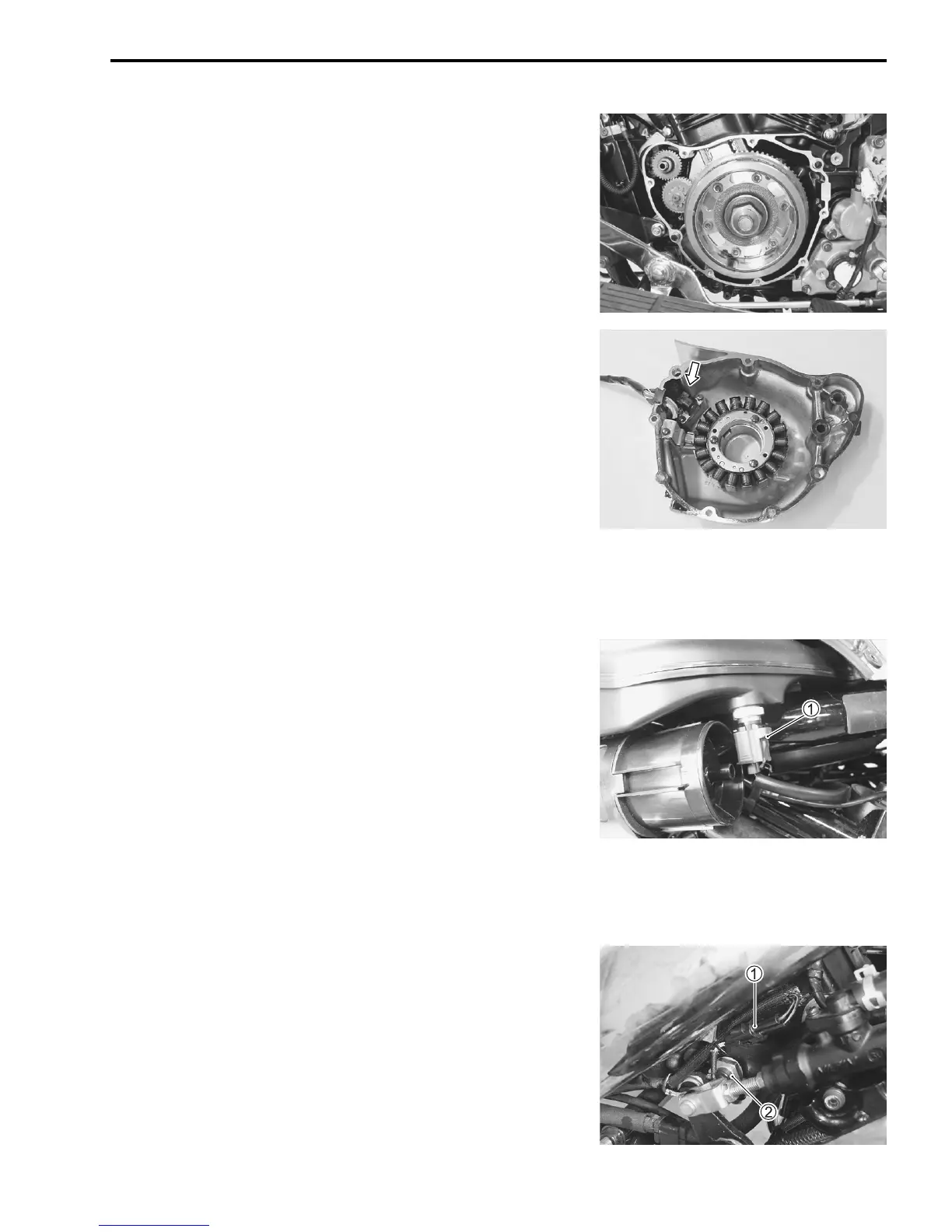

CKP SENSOR INSPECTION
The signal rotor is mounted on the generator rotor and crank-
shaft position sensor is installed at the inside of the generator
cover.
(!VL1500% Service Manual 3-16)
CKP SENSOR REMOVAL/INSTALLATION
(!VL1500% Service Manual 3D-4)
IAT SENSOR INSPECTION
The intake air temperature sensor is installed at the front right
side of the air cleaner box. (!Page 66)
IAT SENSOR REMOVAL/INSTALLATION
• Remove the right frame head cover and right frame upper
cover. (!VL1500%Service Manual 6-3)
• Disconnect the IAT sensor coupler
1 and remove the IAT
sensor.
• Installation is in the reverse order of removal.
& IAT sensor: 20 N·m (2.0 kgf-m, 14.4 lb-ft)
EOT SENSOR INSPECTION
The engine oil temperature sensor is installed at the right crank-
case. (!Page 62)
EOT SENSOR REMOVAL/INSTALLATION
• Disconnect the EOT sensor coupler
1 and remove the EOT
sensor
2.
• Installation is in the reverse order of removal.
& EOT sensor: 22 N·m (2.2 kgf-m, 16.0 lb-ft)
