36 VL1500K5 (’05-MODEL)
TPS ADJUSTMENT
1. Warm up the engine and adjust the engine idle speed to 1 000
± 100 r/min. (!Page 8)
2. Connect the special tool (Mode select switch) and select the
dealer mode.
3. Remove the right frame upper cover.
(!VL1500 Service Manual 6-3)

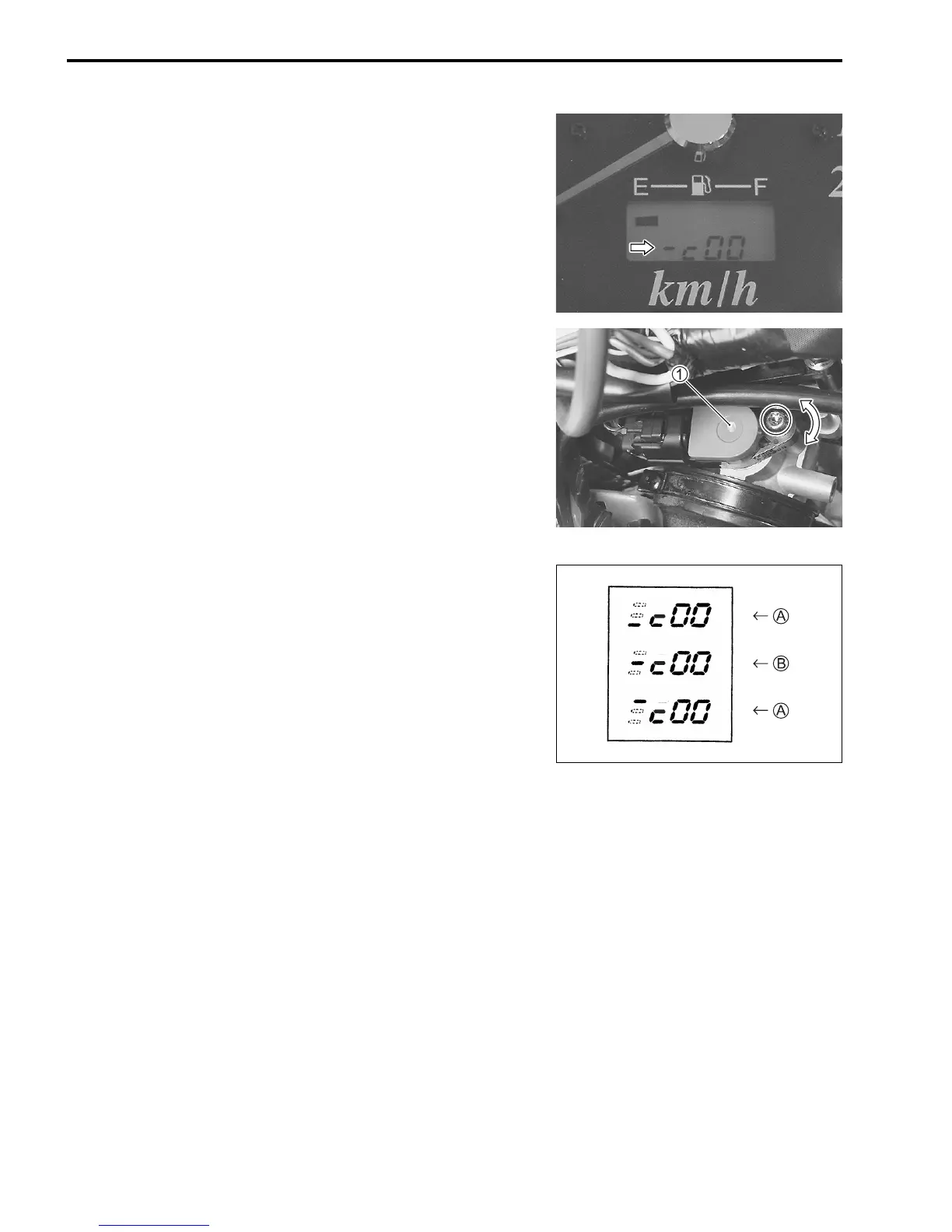

4. Loosen the screw and turn the throttle position sensor
1 and
bring the line to the middle.
5. Then, tighten the screws to fix the throttle position sensor.
# 09930-11950: Torx wrench
09930-82720: Mode select switch
The LCD displays the line for 0.4 sec. at a time, and when such
a display repeats two times, it indicates the current position
where the sensor is fixed.
A Incorrect
B Correct position
