28 VL1500K5 (’05-MODEL)
FUEL DELIVERY SYSTEM
The fuel delivery system consists of the fuel tank, fuel pump, fuel filters, fuel feed hose, fuel delivery pipe
(including fuel injectors) and fuel pressure regulator. There is no fuel return hose. The fuel in the fuel tank is
pumped up by the fuel pump and pressurized fuel flows into the injector installed in the fuel delivery pipe.
Fuel pressure is regulated by the fuel pressure regulator. As the fuel pressure applied to the fuel injector (the
fuel pressure in the fuel delivery pipe) is always kept at absolute fuel pressure of 300 kPa (3.0 kgf/cm²,
43 psi), the fuel is injected into the throttle body in conic dispersion when the injector opens according to the
injection signal from the ECM.
The fuel relieved by the fuel pressure regulator flows back to the fuel tank.

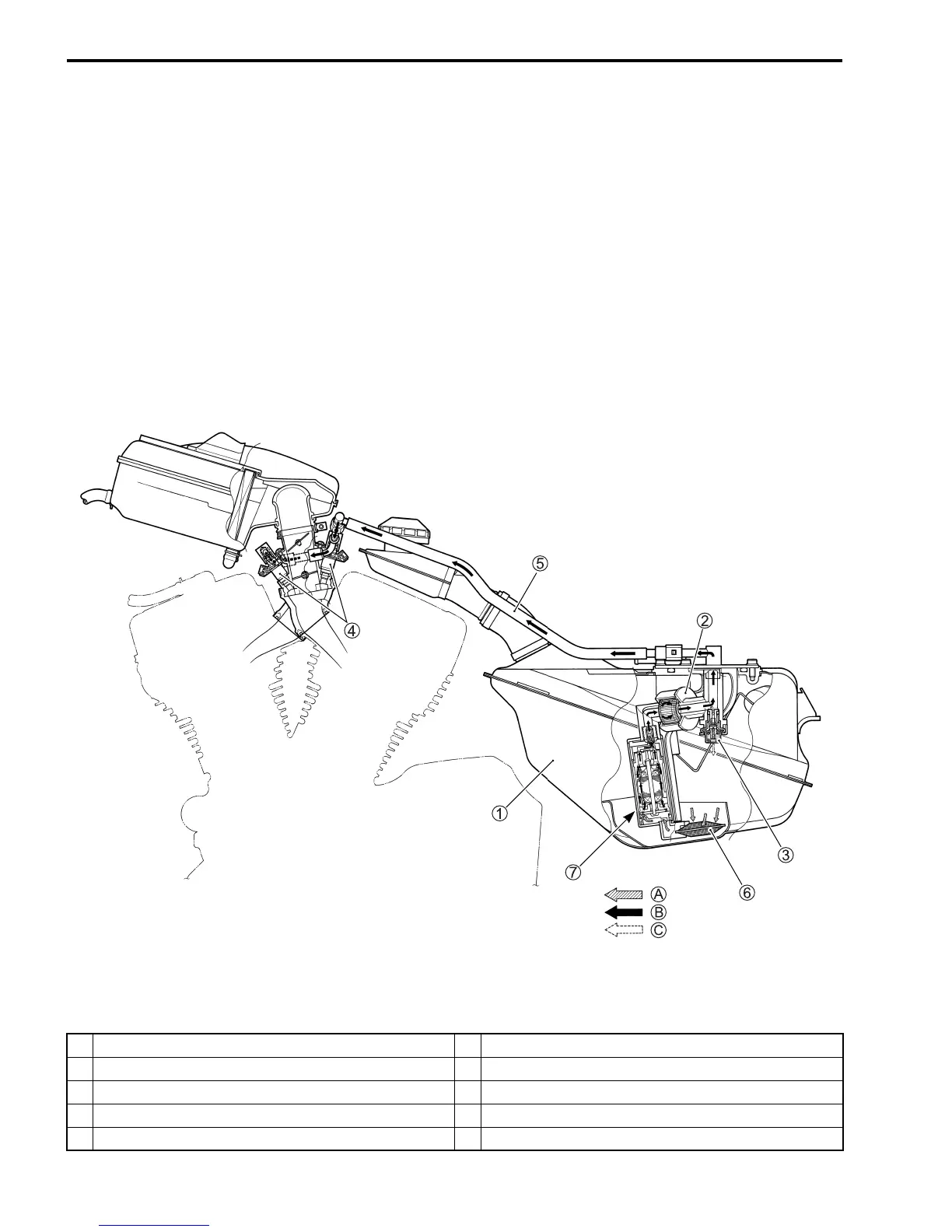

1 Fuel tank
6 Fuel mesh filter (For low pressure)
2 Fuel filter (For high pressure)
7 Fuel pump
3 Fuel pressure regulator
A Before-pressurized fuel
4 Fuel injector
B Pressurized fuel
5 Fuel feed hose
C Relieved fuel
