VL1500K5 (’05-MODEL) 93
FUEL SYSTEM

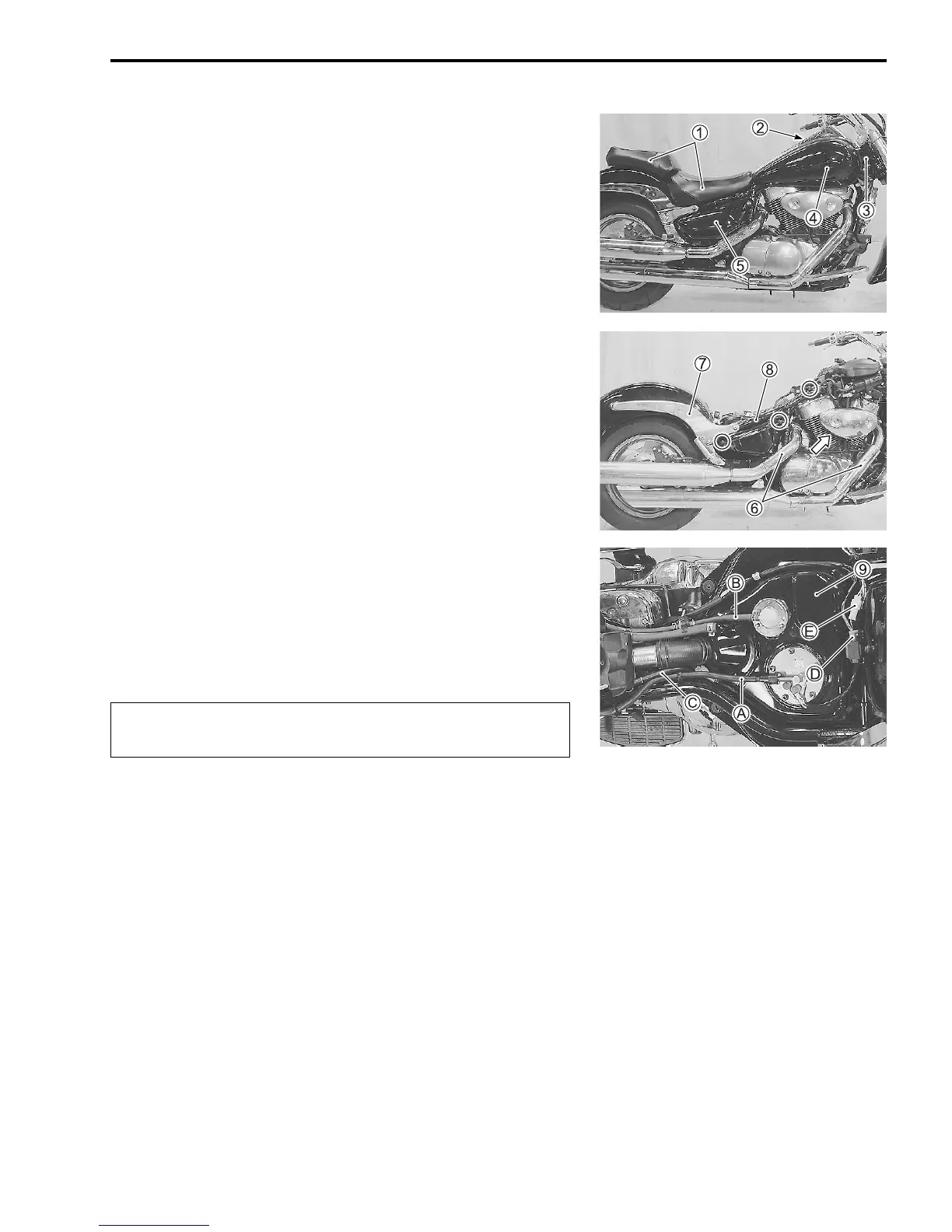

FUEL TANK REMOVAL
• Remove the seats
1. (!Page 121)
• Remove the speedometer and fuel inlet cover
2.
(!VL1500 Service Manual 6-3)
• Remove the frame head covers
3 and frame upper covers
4.
(!VL1500 Service Manual 6-3)
• Remove the frame covers
5.
(!VL1500 Service Manual 6-2)
• Remove the PAIR cover, PAIR control valve and PAIR
bracket. (!Page 14)
• Remove the exhaust pipes and mufflers
6.
(!VL1500 Service Manual 3-5)
• Remove the heat shield bolt and fuel tank mounting bolts.
(!VL1500 Service Manual 5-2)
• Remove the right frame handle grip
7 and seat frame
8.
(!VL1500 Service Manual 5-2)
• Remove the fuel feed hose
A, fuel tank breather hose
B
and
fuel drain hose
C.
• Disconnect the TO sensor coupler
D
and fuel pump coupler
E.
• Remove the fuel tank
9.
$
Gasoline is highly flammable and explosive.
Keep heat, spark and flame away.
