172 VL1500K5 (’05-MODEL)

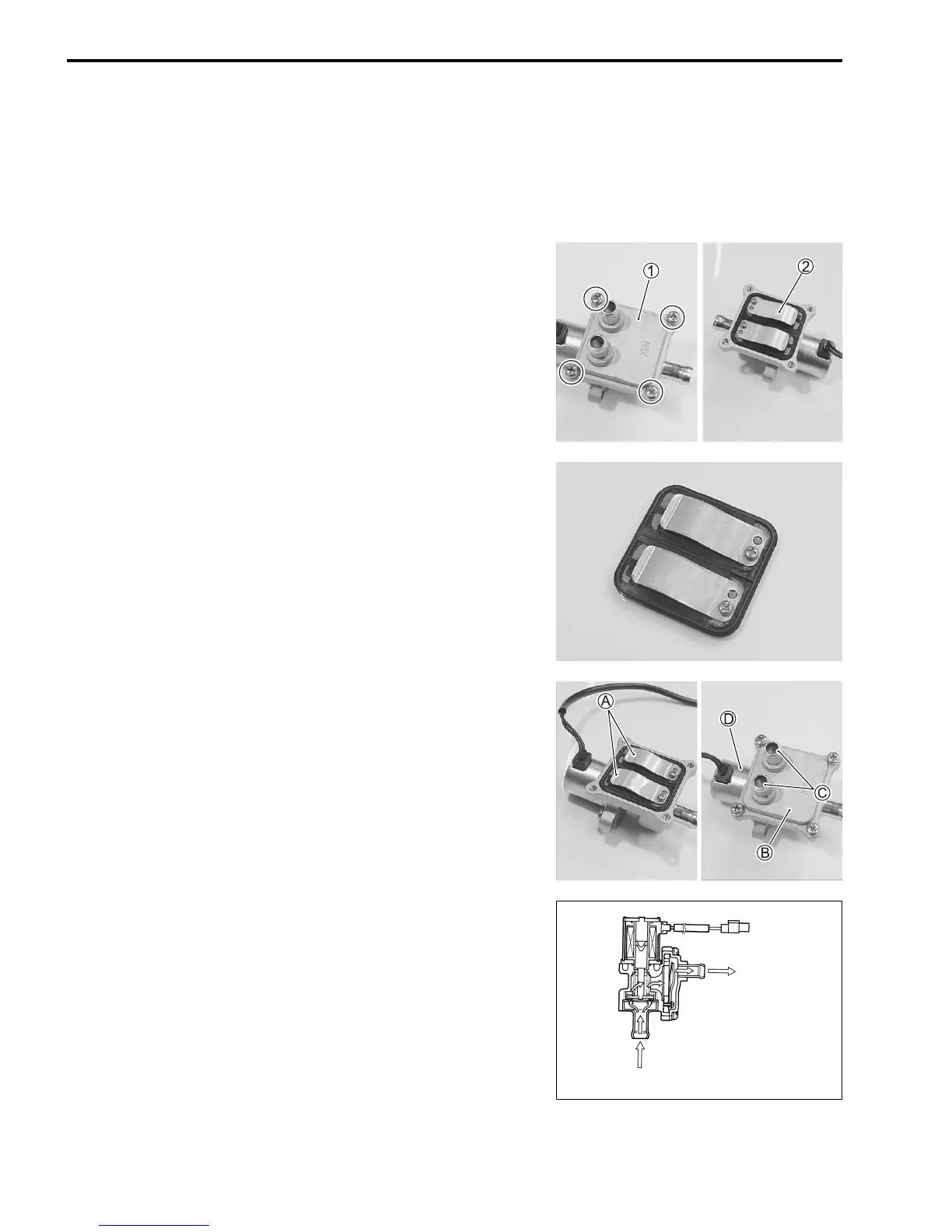

PAIR (AIR SUPPLY) SYSTEM INSPECTION
HOSES AND PIPES
• Remove the PAIR cover. (!Page 14)
• Inspect the hoses for wear or damage.
• Inspect that the hoses for secure connection.
PAIR REED VALVE
• Remove the PAIR control solenoid valve. (!Page 14)
• Remove the reed valve case

1 and PAIR reed valve

2.
• Inspect the reed valve for the carbon deposit.
• If the carbon deposit is found in the reed valve, replace the
PAIR reed valve with a new one.
• Install the reed valve

A and its case

B with outlet pipes

C
the facing the PAIR control solenoid valve

D.
PAIR CONTROL SOLENOID VALVE
• Remove the PAIR control solenoid valve. (!Page 14)
• Check that air flows through the air inlet port to the air outlet
ports.
• If air does not flow out, replace the PAIR control solenoid
valve with a new one.
Air flow
Air flow
