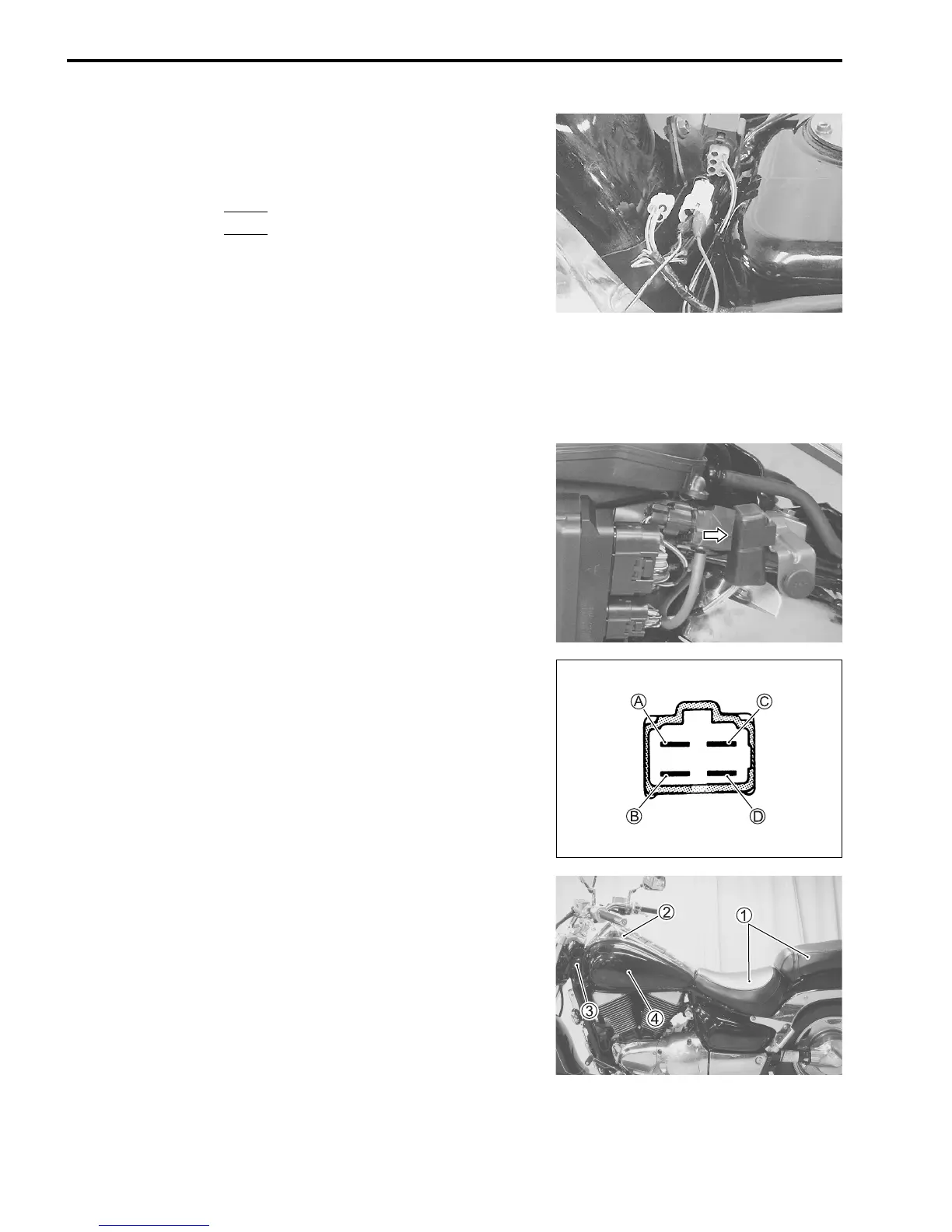

96 VL1500K5 (’05-MODEL)
• Connect a proper lead wire into the fuel pump lead wire cou-
pler (fuel pump side) and apply 12 volts to the fuel pump
(between Y/R wire and B/W wire) for 10 seconds and mea-
sure the amount of fuel discharged.
Battery
+ terminal (Yellow with red tracer)
Battery
- terminal (Black with white tracer)
If the pump does not discharge the amount specified, it means
that the fuel pump is defective or that the fuel filter is clogged.
" Fuel discharge amount: 168 ml and more/10 sec.
(5.7/5.9 US/Imp oz)/10 sec.
NOTE:
The battery must be in fully charged condition.
FUEL PUMP RELAY INSPECTION
Fuel pump relay is located at the right side of the ECM.
• Remove the left frame head cover.
(!VL1500 Service Manual 6-3)
• Remove the fuel pump relay.
First, check the insulation between
A and
B terminals with
pocket tester. Then apply 12 volts to
C and
D terminals,
+ to
C and
- to
D, and check the continuity between
A and
B.
If there is no continuity, replace it with a new one.
FUEL PUMP ASSEMBLY REMOVAL
• Remove the seats
1. (!Page 121)
• Remove the speedometer and fuel inlet cover
2.
(!VL1500 Service Manual 6-3)
• Remove the left frame head cover
3 and left frame upper
cover
4. (!VL1500%Service Manual 6-3)
