VL1500K5 (’05-MODEL) 129
CHARGING SYSTEM
INSPECTION

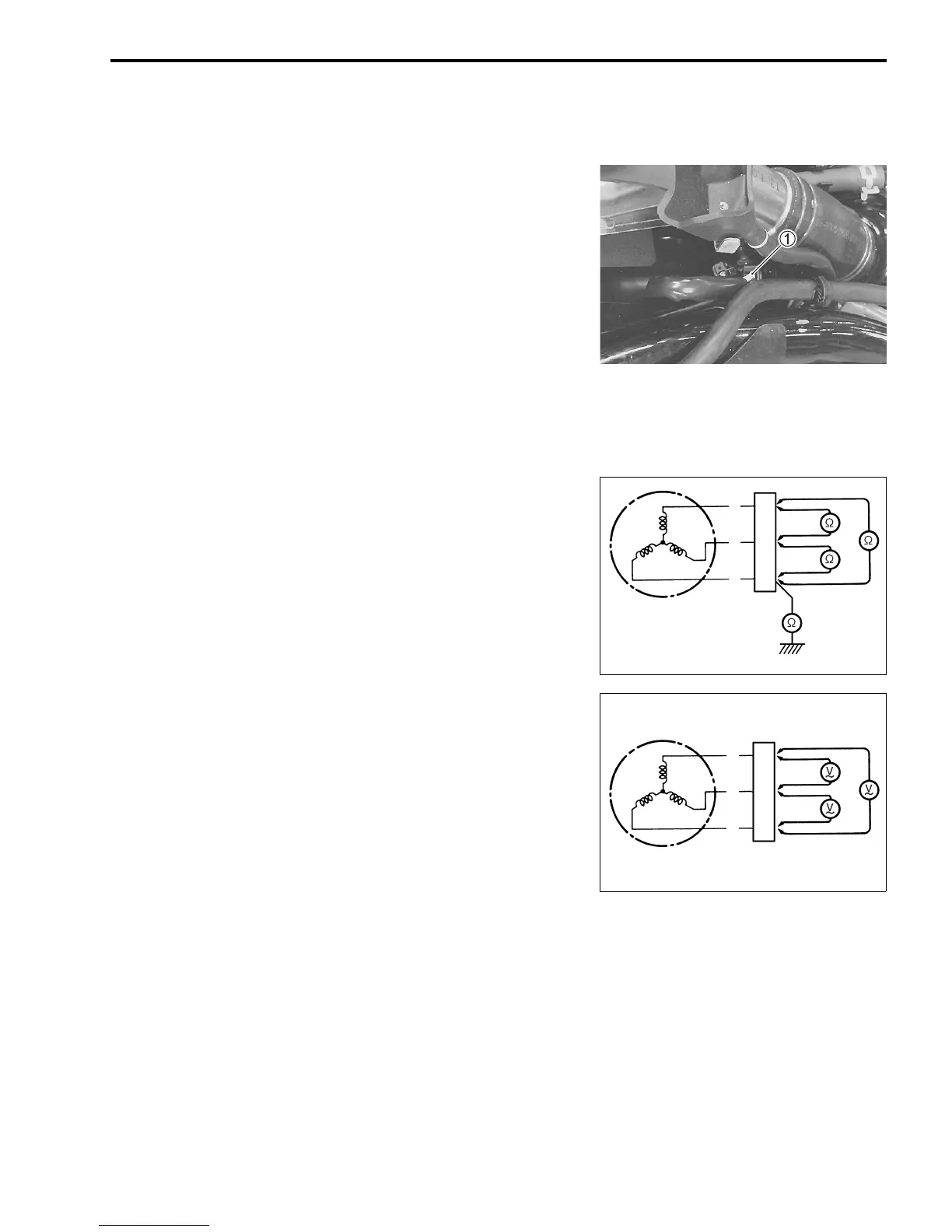

GENERATOR COIL RESISTANCE
• Remove the seats. (!Page 121)
• Remove the speedometer and fuel inlet cover, frame head
covers and frame upper covers.
(!VL1500 Service Manual 6-3)
• Disconnect the generator coupler
1.
• Measure the resistance among the three lead wires.
If the resistance is not specified value, replace the stator with
a new one. Also, check that the generator core is insulated.
" Generator coil resistance: 0.1 – 1.0 Ω (White – White)
∞ Ω (White – Ground)
# 09900-25008: Multi-circuit tester set
) Tester knob indication: Resistance (Ω)
NOTE:
When making above test, it is not necessary to remove the gen-
erator.
GENERATOR NO-LOAD PERFORMANCE
• Disconnect the generator coupler. (!Above)
• Start the engine and keep it running at 5 000 r/min.
• Using the multi-circuit tester, measure the voltage among the
three lead wires.
If the tester reads under the specified value, replace the gen-
erator with a new one.
" Generator no-load performance:
80 V and more at 5 000 r/min (When engine is cold)
# 09900-25008: Multi-circuit tester set
* Tester knob indication: Voltage (∼)
W
W
W
W
W
W
