SYM 2. MAINTENANCE INFORMATION
2-15

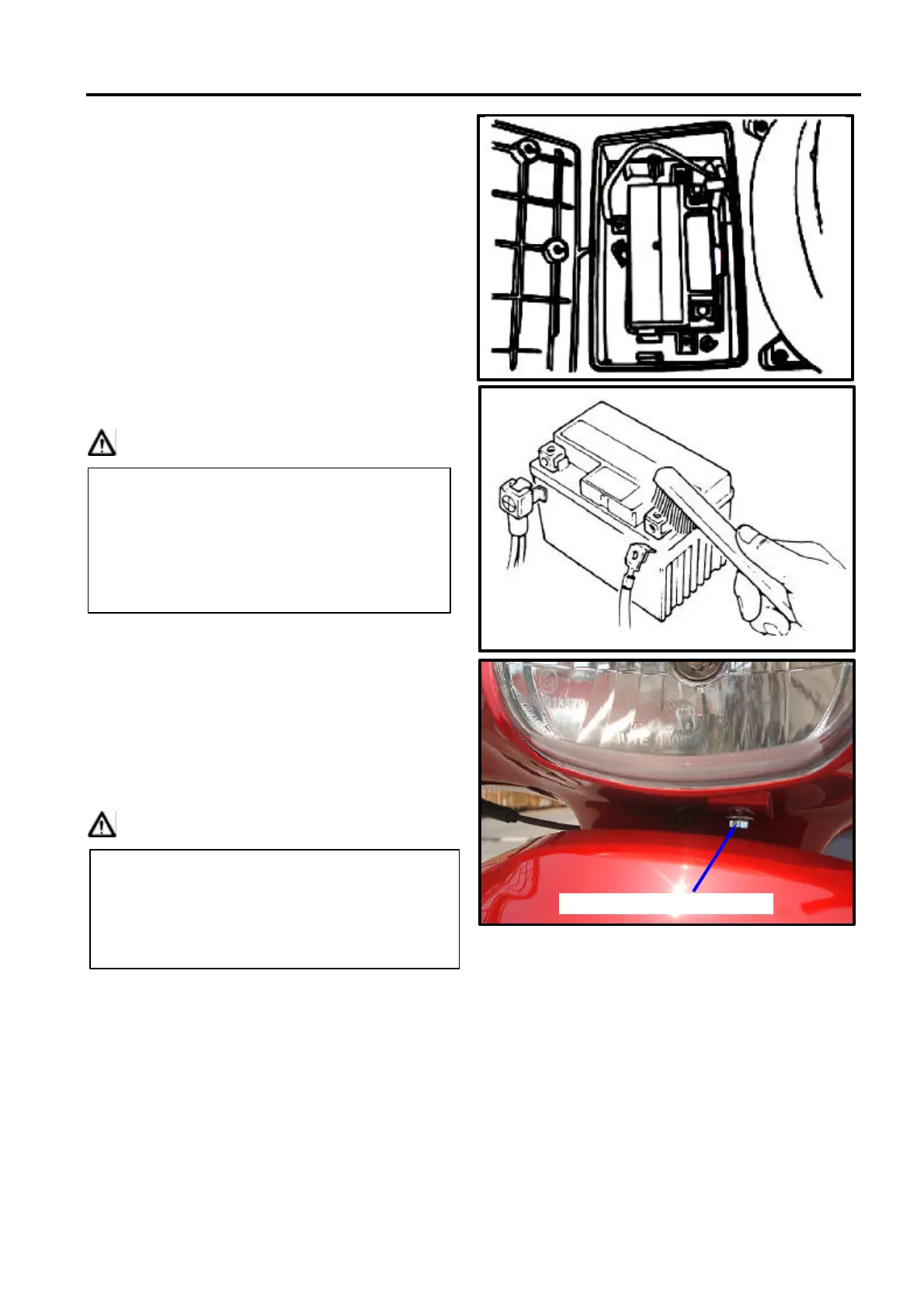

BATTERY
Battery Removal
Remove the 2 screws on the floor panel.
Remove battery cap. (2 nuts)
Battery cables removal:
1. At first, remove the negative “-” cable.
2. Then, remove the positive “+” cable.
3. Remove the battery.
If there is some rust on battery posts, clean it
with steel brush.
Install the battery in the reverse procedures
of removal.
Caution
HEADLIGHT ADJUSTMENT
Park the motorcycle with the main stand.
Turn on the main switch.
Turn the headlight adjustment screw. And
adjust the headlight beam height.
Then, tighten the adjustment screw after the
beam height in proper position.
Caution
NUTS, BOLTS TIGHTENESS
Perform periodical maintenance in accord
with the Periodical Maintenance Schedule.
Check if all bolts and nuts on the frame are
tightened securely.
Check all fixing pins, snap rings, hose (pipe)
clamps, and wire holders for security.
Ÿ To adjust the headlight beam follows
related regulations.
Ÿ Improper headlight beam adjustment will
make in coming driver dazzled or
insufficient lighting.
Ÿ If there is rust on the posts very serious,
spray some hot water on the posts.
Then, clean it with steel brush so that
can remove rust for more easily.
Ÿ Apply some grease on the posts after
rust removed to prevent from rust again.
Headlight adjustment screw
