SYM 16. ELECTRICAL EQUIPMENT
16-17
LIGHT/BULBS

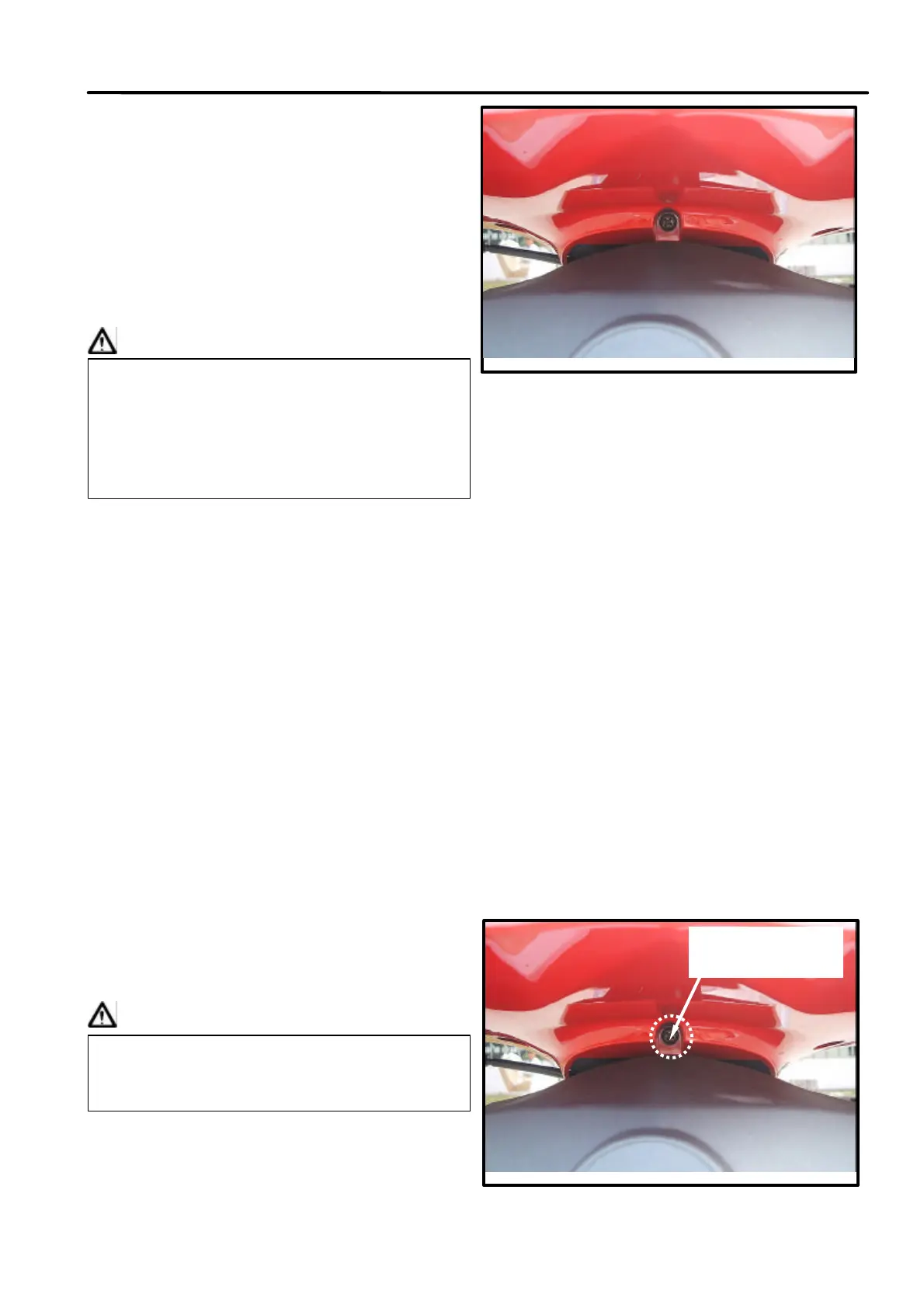

Headlight Bulb Replacement
Rear the front handle cover.
Disconnect the headlight wire connector.
Press down the bulb spring locker and then
remove the locker with turning it left motion.
Remove the bulb.
Replace the bulb with new one if necessary.
(12V 35W/35W)
Caution
Install the bulb in reverse order of removal.
Turn the main switch ON/OFF to check if the
bulb has been installed properly after
installation.
Please conduct the headlight beam
adjustment job if replace the headlight bulb.
The headlight beam adjustment
Loosen the adjustment bolt located under the
headlight.
Caution
l Do not touch the bulb surface with fingers
because the bulb will create hot-spot so
that let it be burnt. It has to be package
with cloth or wear glove as installing.
l Wipe the bulb with cloth to prevent from
damaged if the bulb be touched by hands.
l
This outer cover of headlight is a fixed type
so that the light seat will be moved only
when adjusting.
headlight beam
adjustment screw
