SYM 14. STEERING/FRONT WHEEL/FRONT SHOCK ABSORBER
14-5

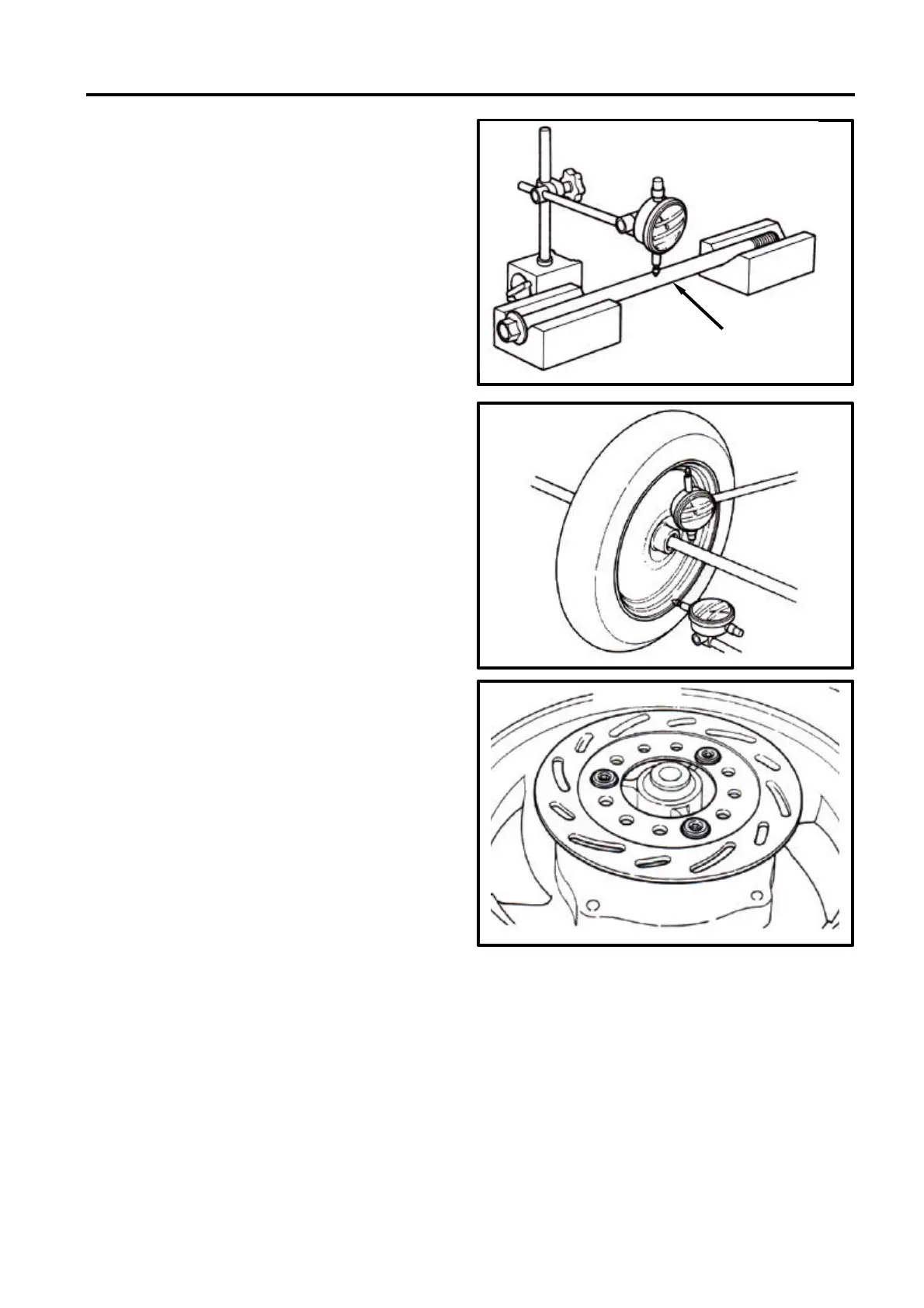

Inspection
Wheel axle
Set the axle in V-blocks and measure the
run-out.
Service limit: 0.2 mm.
Wheel Rim
Place the wheel onto a rotated bracket.
Turn the wheel with hand and measure its
wobble value with a dial gauge.
Service limit:
Radial : 2.0 mm
Axial : 2.0 mm
Disassembly (Disc type)
Remove 3 hex socket bolts and brake disc.
Wheel axle
