4. FUEL SYSTEM SYM
4-8

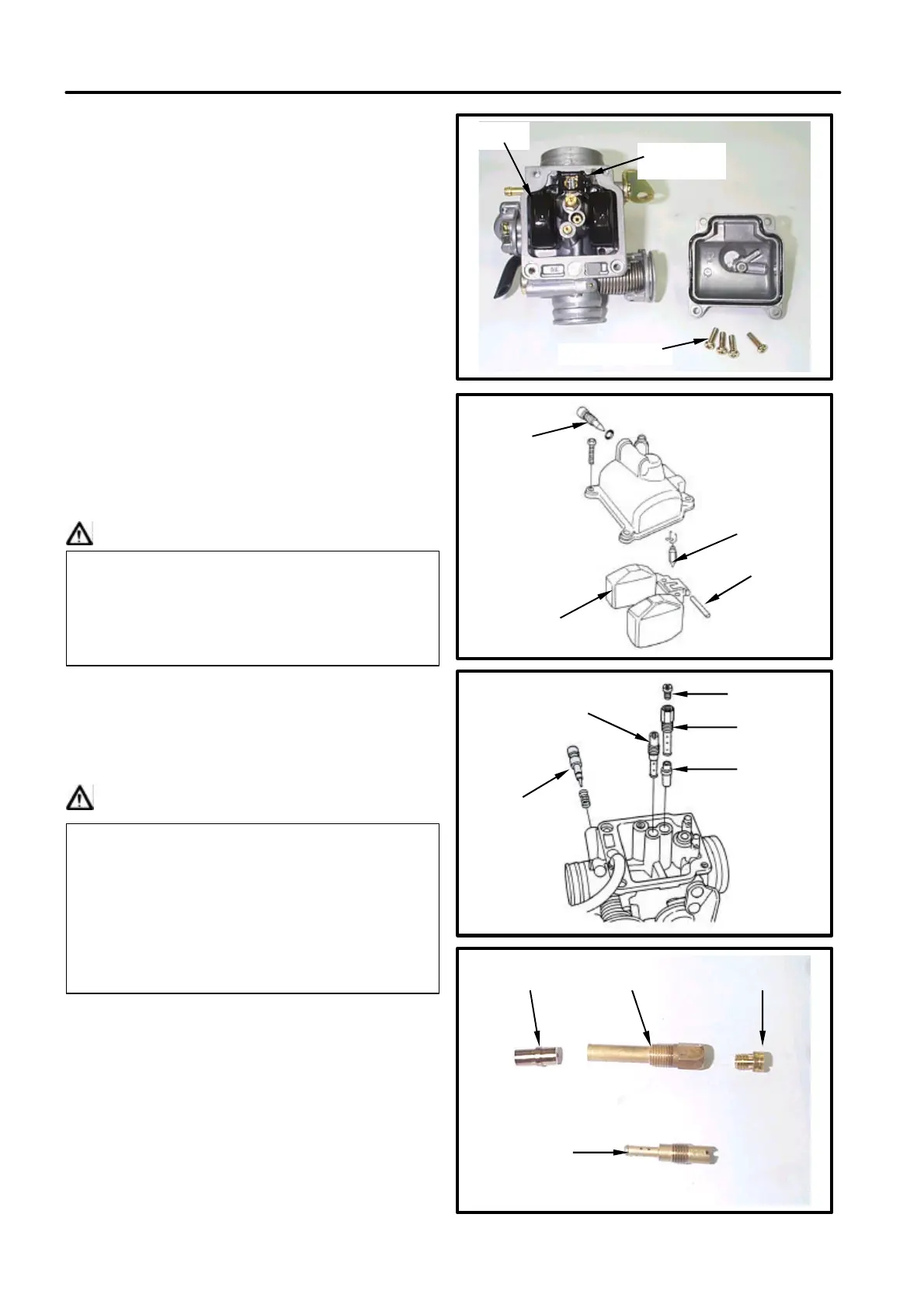

FLOAT CHAMBER
Disassembly
Remove 4 mounting screws and then the
float chamber cover.
Remove the float pin and float valve.
Checking
Check float needle valve and valve seat for
drop difference damage, wear out, dirty or
clogged.
Cautions
Remove main jet, fuel needle jet holder, fuel
needle jet, slow jet, fuel amount adjustment
screw.
Cautions
Clean jets with cleaning fluid.
Then use compressed air to blow dirt off.
Blow carburetor body passages with
compressed air.
In case of worn out or dirt, the float valve
and valve seat will not tightly close causing
fuel level to increase and as a result, fuel
flooding. A worn out or dirty float valve must
be replaced with a new a new one.
l Take care not to damage jets and adjust
screw.
l Before removing adjustment screw, turn
it all the way down and note the number
of turns.
l Do not turn adjustment screw forcefully
to avoid damaging valve seat face.
screws
×
4
float
float pin
main jet
fuel needle jet
fuel needle holder
slow jet
float
float pin
float needle
valve
float pin
main jet
slow jet
fuel needle
jet
fuel needle
holder
fuel am
ount
adjustment screw
